Cumberland Evolution 1200 Series - Evolution 1200 Power Connection

Part No. 4801-5331 Rev 2-2015 Evolution 1200 53 of 65

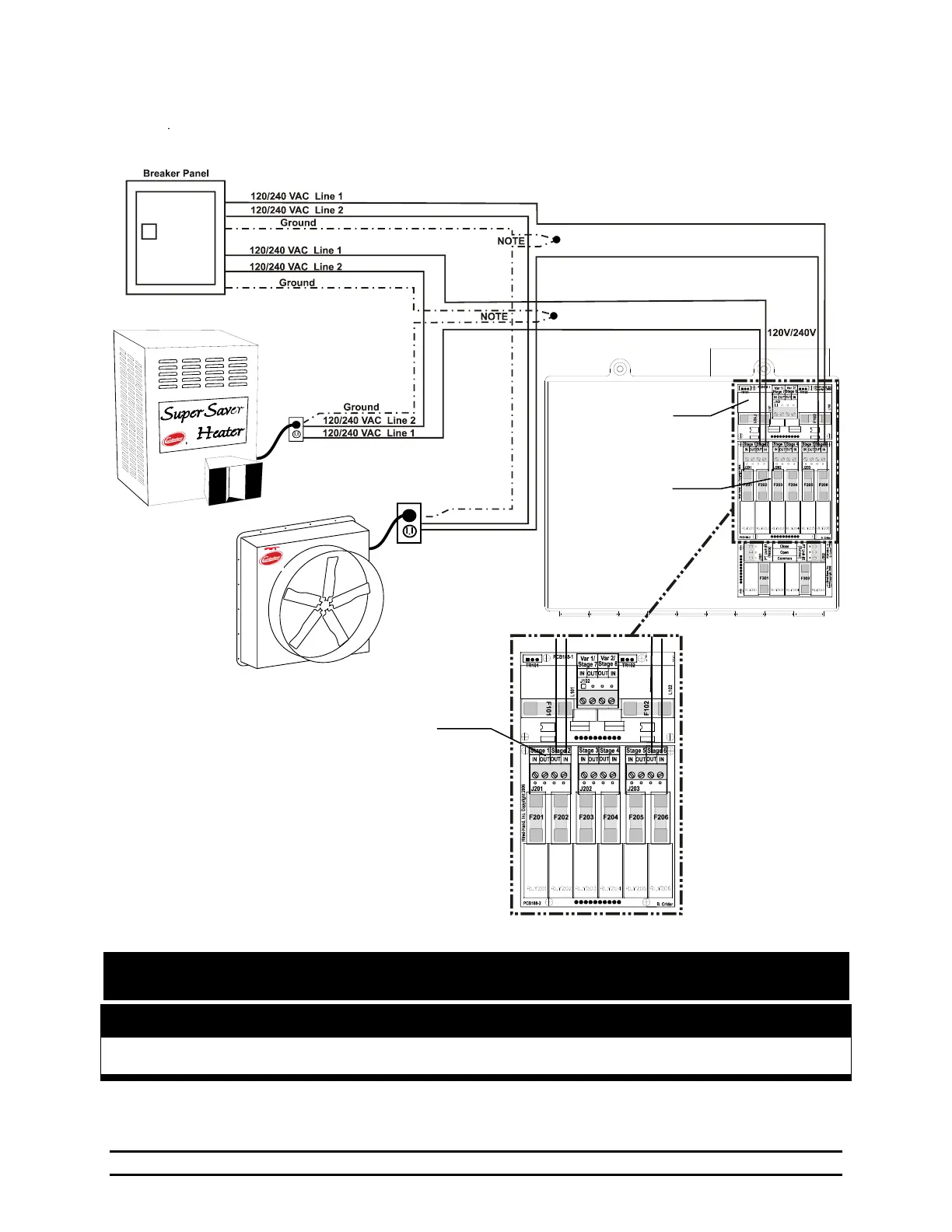

8.14 Evolution 1200 Power Connection
NOTE: Example above shows how to wire stages to heating & cooling equipment. Stage numbers are
shown on the PCB above terminal blocks.
Connecting Power from Breaker to a Heat Stage
And a Cool Stage in the Evolution 1200
Terminal blocks for
stage connections
Evolution 1200
WARNING!
Keep High Voltage (Or AC) Separate From Low Voltage Wires!
PCB188-1
PCB188-2
