9. Wiring Diagrams
9.1 Connections of Evolution 3000 & 3001 Enclosure
WARNING!
Keep All Low Voltage Wires Such As Sensors, Network, &
Backup, Curtain Aux Switches Separate From AC Wires!

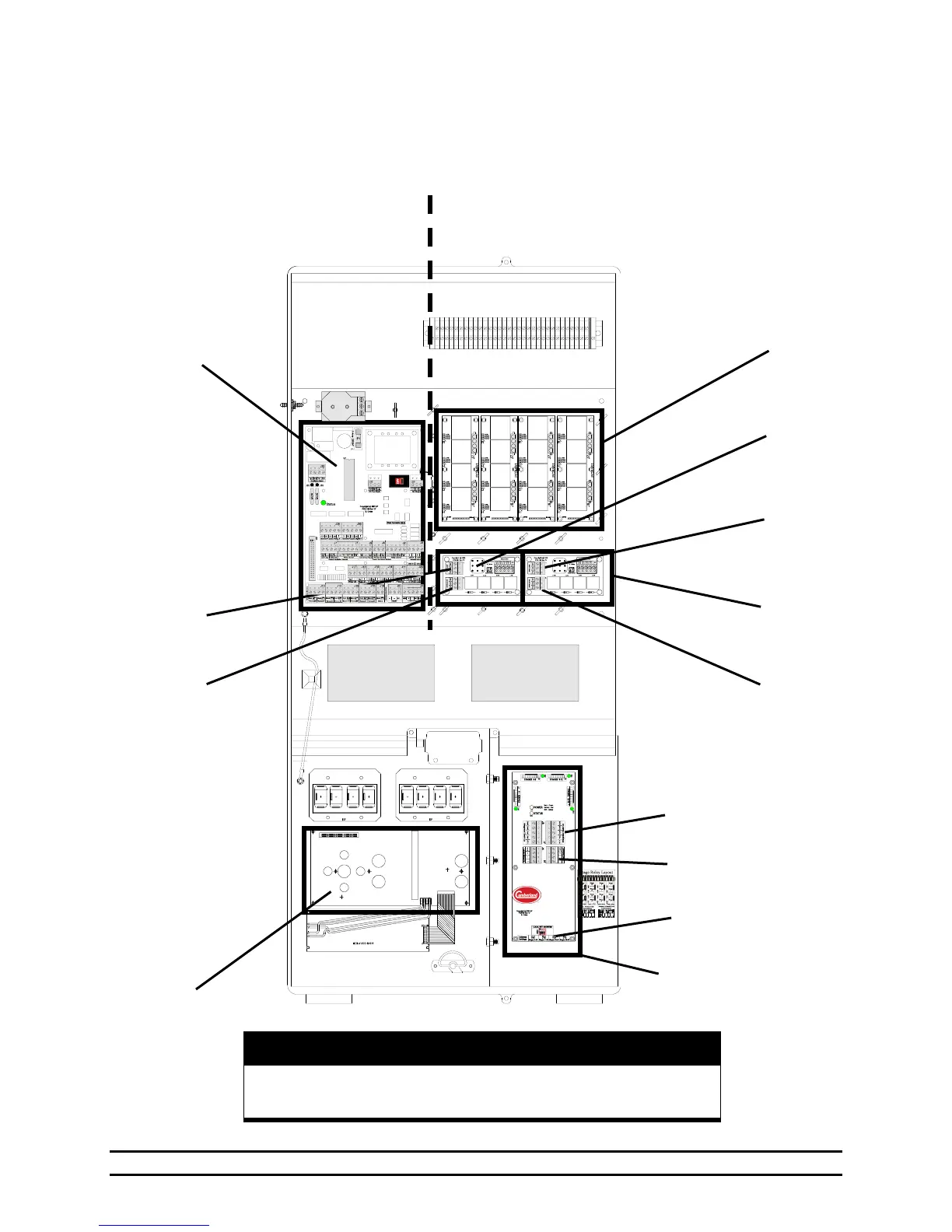

View of Enclosure
Rear View of Front Panel
PCB 169
PCB 167
Power
Ventilation
PCB 167
Natural
Ventilation
Backup
Connection
Local Network
Connection
Stage Relays &
Stage
Connections
Address
Switches
U2 Natural
or Tunnel2
U1 Natural
Power Trak
or Attic
U2 Tunnel
Inlet Power
Trak
U1 Vent
Power Trak
PCB 170
PCB 168
LOW
VOLTAGE
WIRES
HIGH
VOLTAGE
WIRES
