Part No. 4801-5307 Rev 2-15 Evolution 3000 and 3001 58 of 70

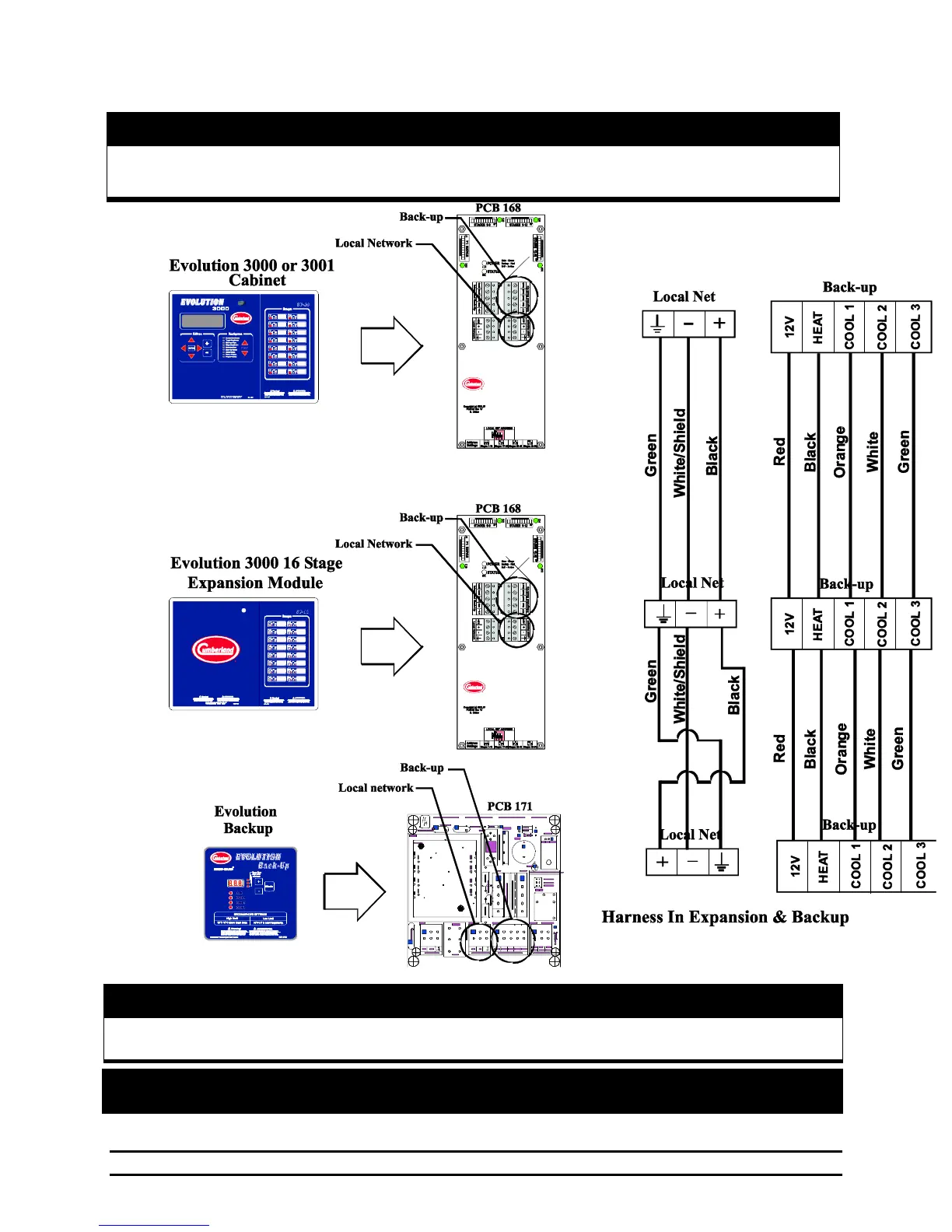

9.17 Connecting Local Network & Backup to the Evolution 3000 & 3001
NOTE: Harness to connect Local Network and Back-up together are connected & included
in the Back-up and 16 Stage Expansion units.
Warning!
Tape Shield To Prevent Damage!
WARNING!
LOW VOLTAGE!
Keep Low Voltage Wires Separate Frm High Voltage Wires
