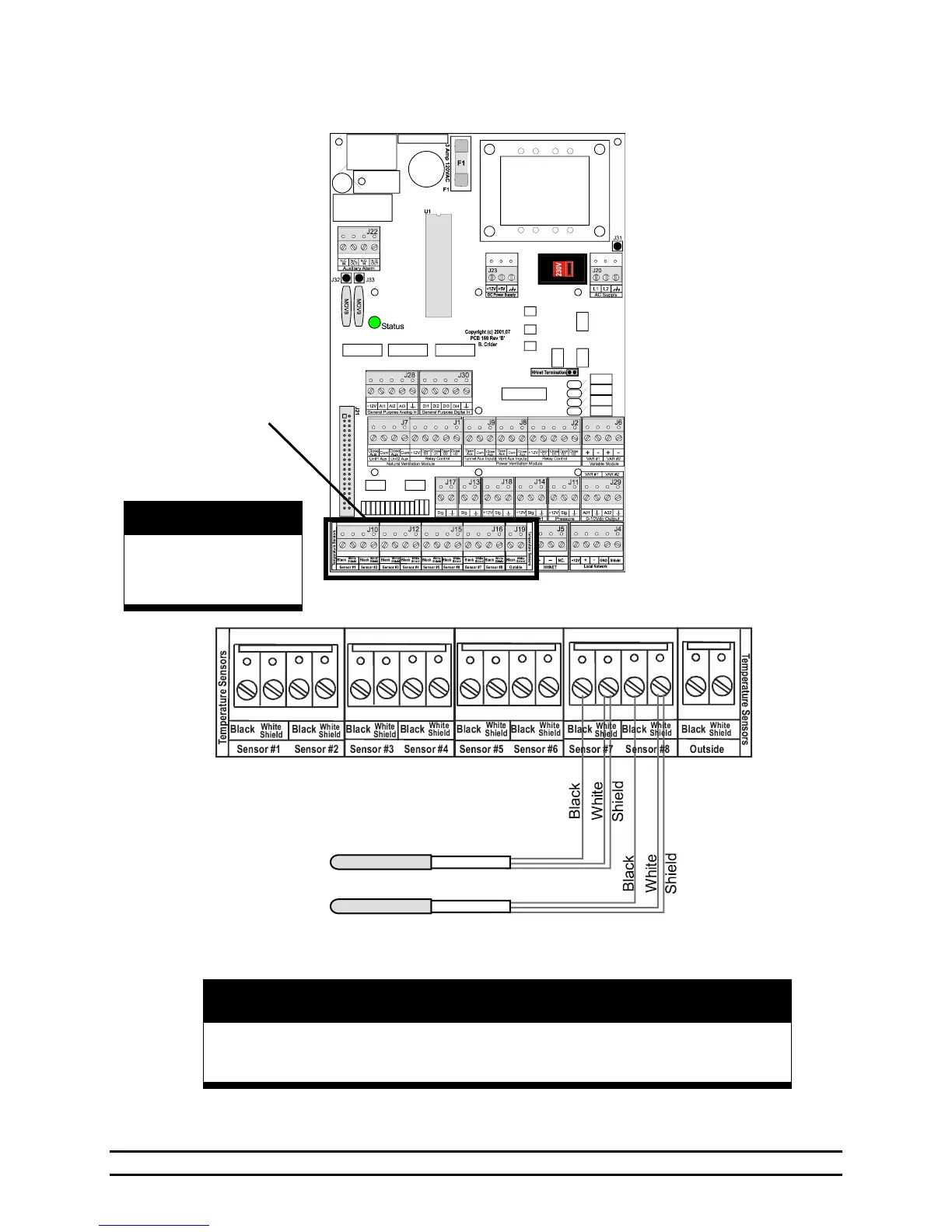

9.3 Connecting Temperature Sensor to Evolution 3000 & 3001

Warning!

Tape Shields To Prevent Bare Wires From Touching!

PCB 169

WARNING!

LOW VOLTAGE!

Keep Separate From

High Voltage Wires!

Inset A

NOTE: Other sensors are

connected similarly.
