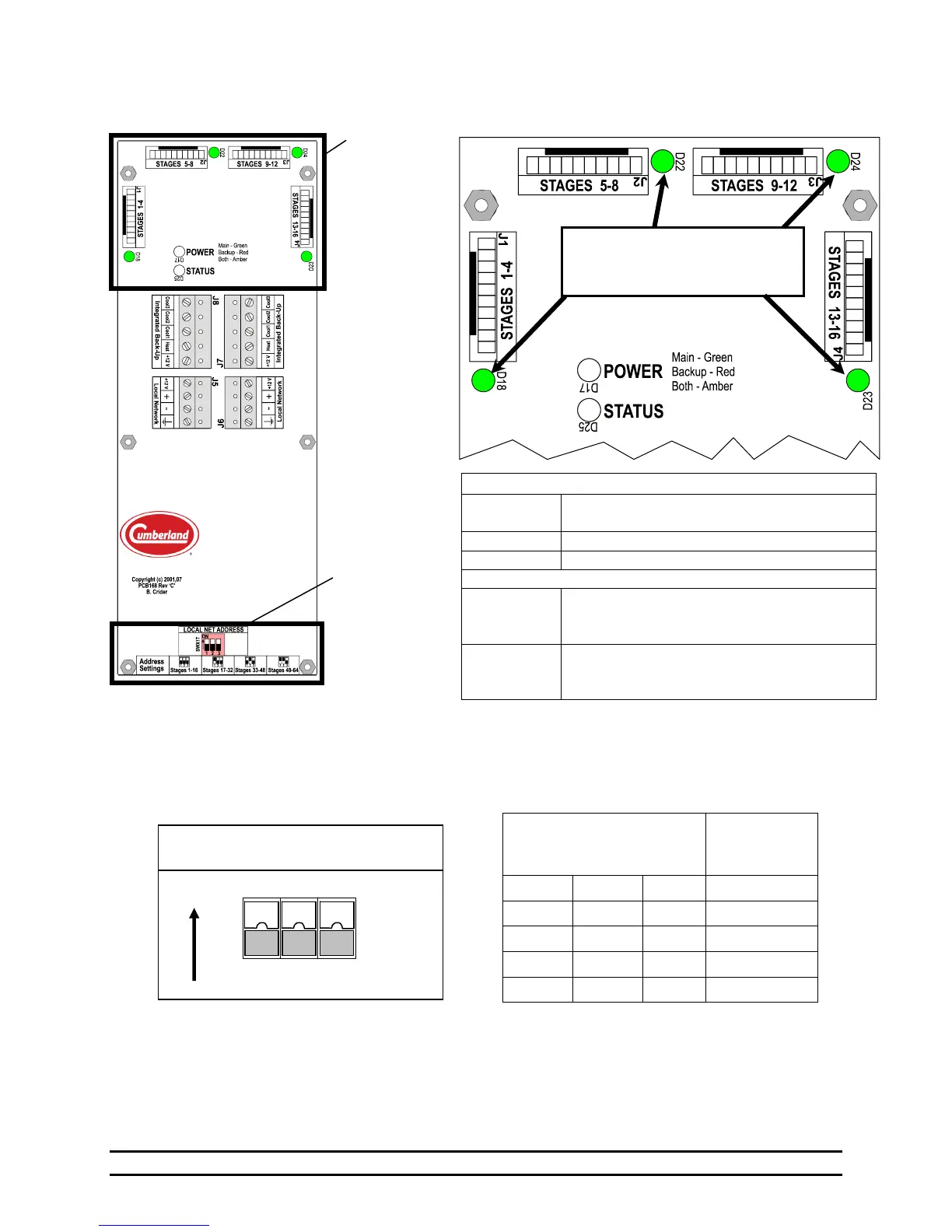

9.2 Setting Address Switches & LEDs on PCB 168 Stage Board
LOCAL NET ADDRESS
SWX 1
ON
1 2 3
Inset A
Inset A
PCB 168
Inset B: Light Emitting Diode (LED) Indicators
Relay POWER Status LED
ORANGE
Backup Power Supply & Main Controller
Power Supply Both Connected.
RED
Main Power Supply Lost
GREEN
Backup Power Supply Lost
STATUS LED
GREEN with
quick RED
flashes
If this LED is flashing Red, this board is
communicating with the PCB170 Board.
A slow
AMBER
flash
If this LED has a slow Amber flash, then a
problem exists with the local network
communication between PCB168 and PCB170.
LOCAL NET ADDRESS
Local addresses are assigned by setting a series of three DIP switches on the PCB 168 circuit board. There are
three switches that can be set as shown in the above table. For example, if all three DIP switches are set to
"ON", the Stages are 1 through 16.
DIP Switch Settings
Stage
Address
Assignment
No. 1
No. 2
No. 3
ON
ON
ON
1 -16
OFF
ON
ON
17-32
ON
OFF
ON
33-48
OFF
OFF
ON
49-64
When the Green Stage LED’s are
ON, PCB168 is sending power to
the Specific Stage Relay Boards.
Inset B
