Cumberland Evolution 3000 - Evolution 3000 & 3001 Power Connection

Part No. 4801-5307 Rev 2-15 Evolution 3000 and 3001 57 of 70
9.16 Evolution 3000 & 3001 Power Connection
NOTE: Example above shows how to wire stages to heating & cooling equipment. Stage numbers are
shown on label affixed to inside top of controller box.

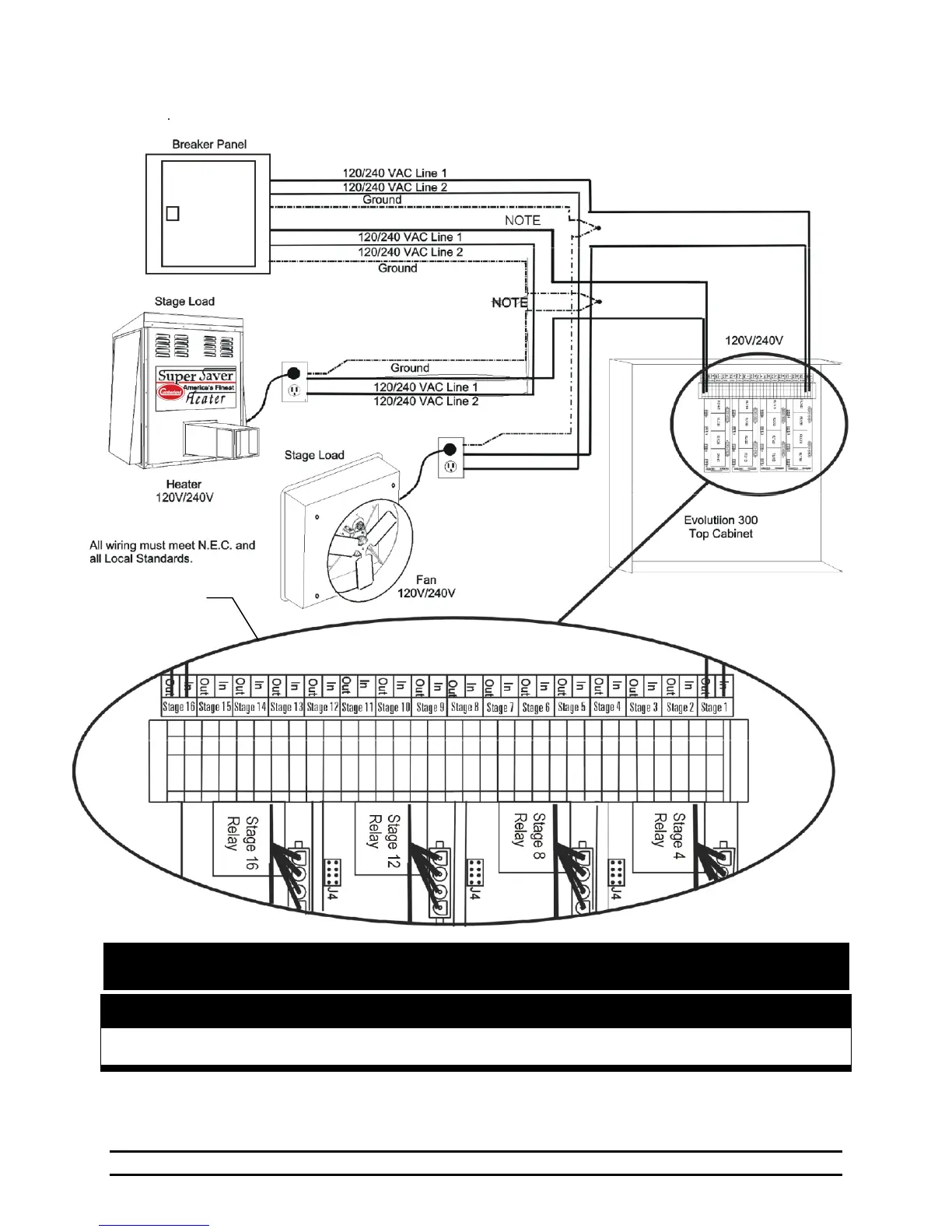

Connecting Power from Breaker to a Heat Stage
And a Cool Stage in the Evolution 3000
Terminal block for
stage connections
Evolution 3000 & 3001
Top Cabinet
WARNING!
Keep High Voltage (Or AC) Separate From Low Voltage Wires!
