1½" AND 2" BENDING INSTRUCTIONS – EMT, IMC AND RIGID
1. Select and mount the 1
1
⁄2" to 2" shoe as described in the shoe set-up
section on pages 12 and 13.
2. Next, install the 1
1
⁄2" and 2" pin-on roller support (see photo below).

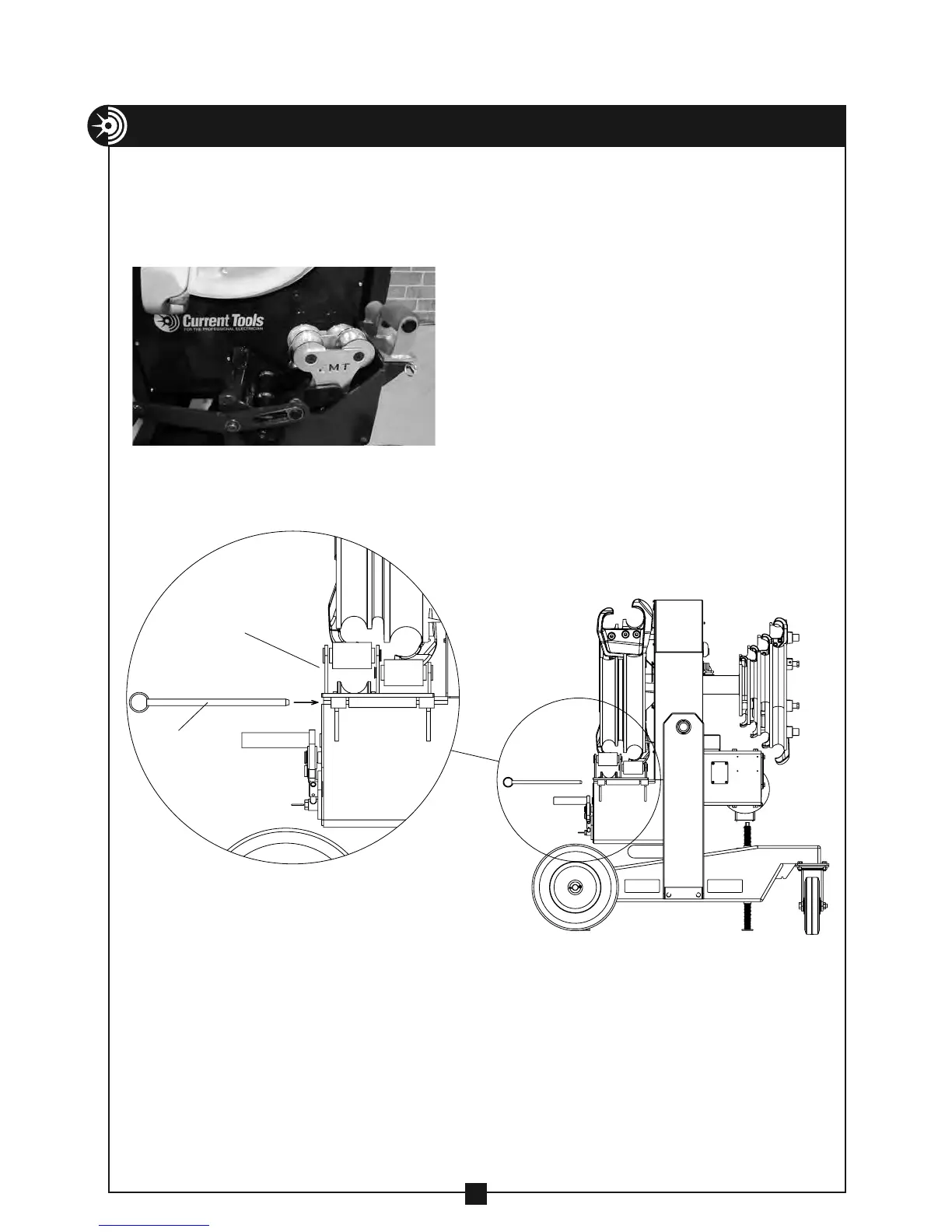

Attach the pin-on roller support as shown below:
1
1
⁄2" and 2" EMT and IMC
use the pin-on urethane
roller support and the built-in
support roller system.
(Part #747-33)
PIN ON
ROLLER
SUPPORT
PIN
