21
1½" AND 2" BENDING INSTRUCTIONS – EMT, IMC AND RIGID
— CONTINUED

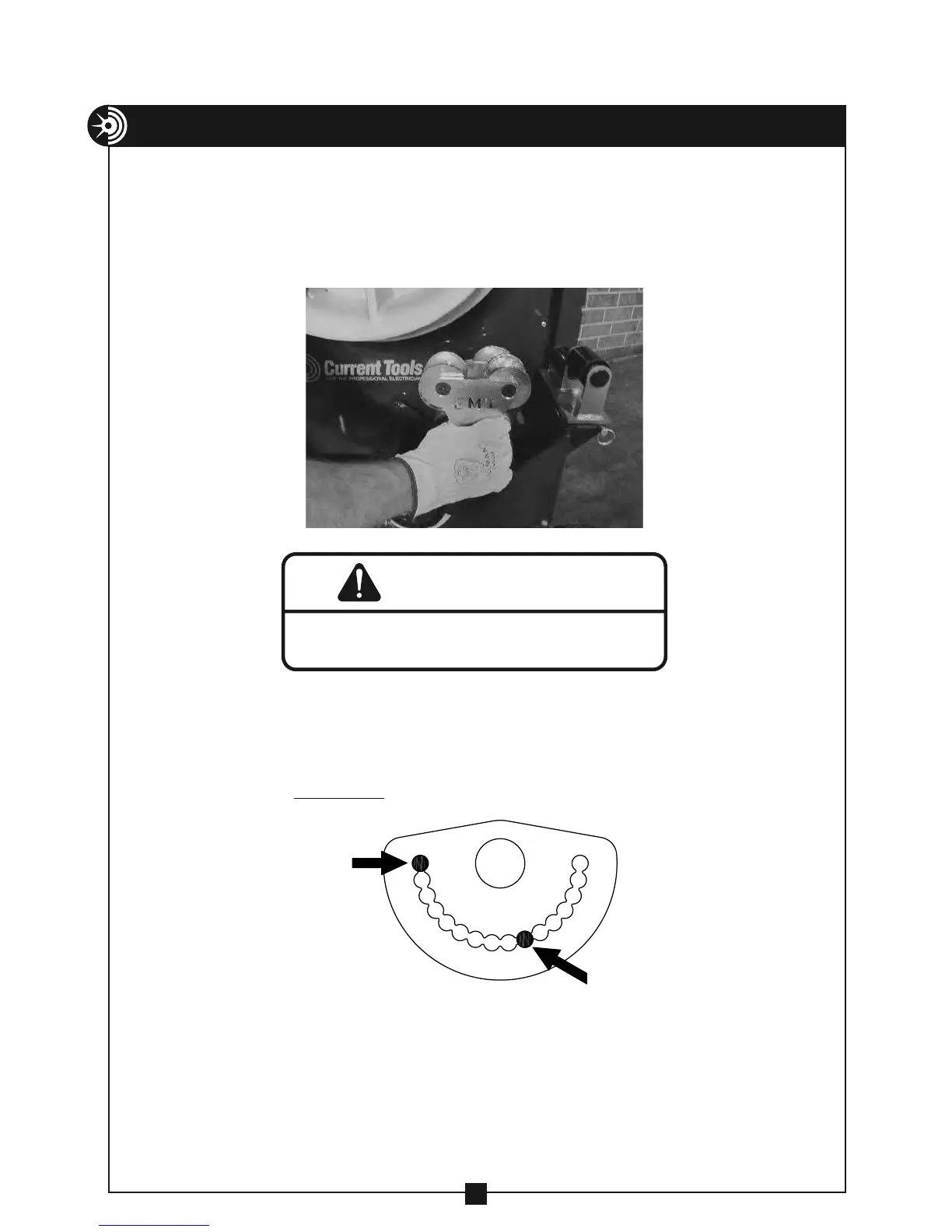

7. Push the support roller lever to lift rollers. Rotate the rollers on the built-
in support roller assembly to the type conduit to be bent. NOTE: the
support rollers are labeled “EMT” and “R/I” for identification.
NOTE: R/I indicates Rigid and IMC conduits.
8. The built-in support roller assembly has a squeeze adjustment feature.
Recommended starting points for the type and size conduit you are
bending are shown below.
Beginning squeeze adjustment settings
NOTE: For additional squeeze adjustment information, refer to item #14 on
page 23.
Be aware of pinch points when rotating the rollers into
position. Always wear gloves.
CAUTION
T HERE FOR
1
/
2
"
-2
"
RIGID CONDUIT
T ADJUST
START HERE FOR 1
1
/
2
"
-2
"
EMT AND IMC CONDUI
ADJUST AS NEEDED
