Current Tools Omni 747 - Chassis, Wheel, and Leveling Component Diagrams

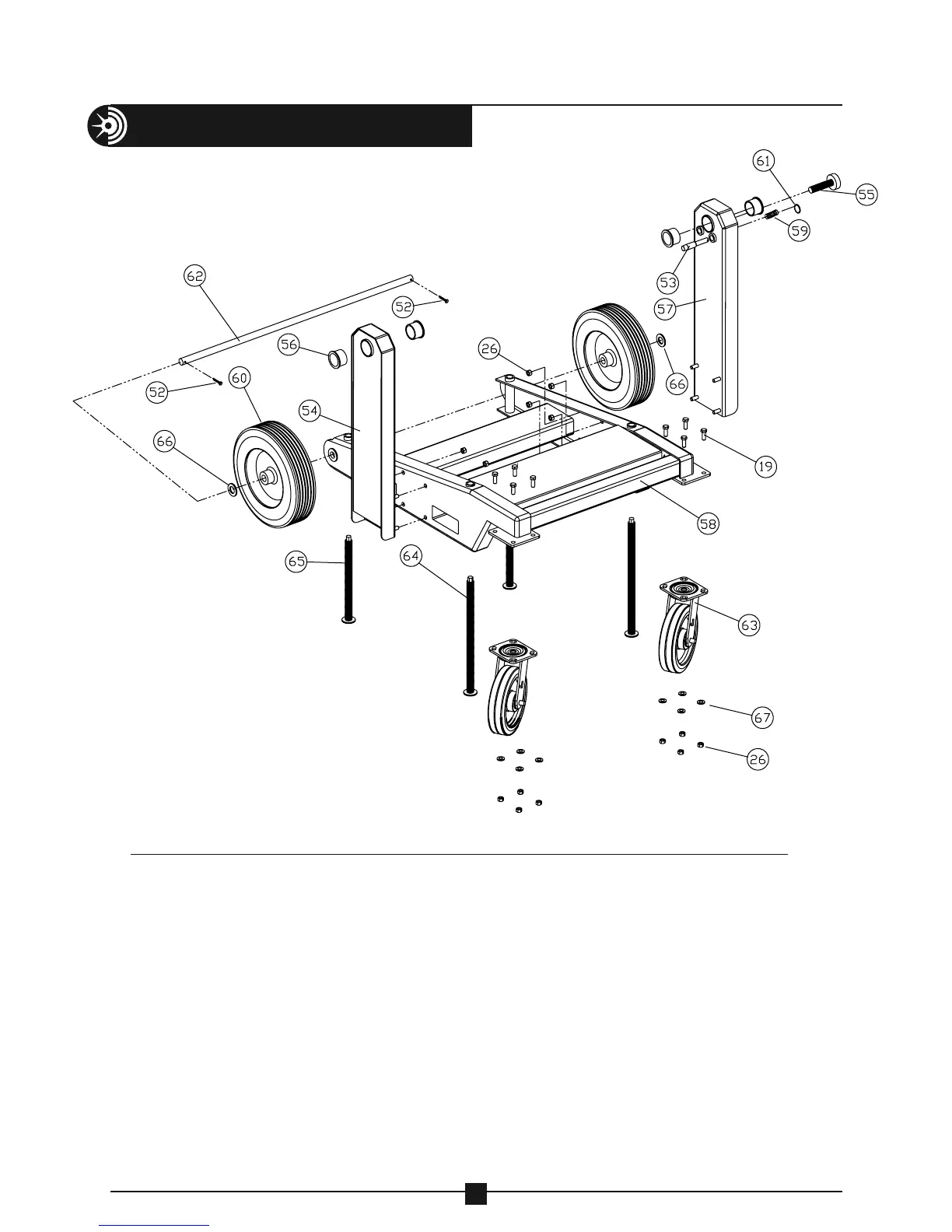

EXPLODED VIEWS
ITEM # QTY DESCRIPTION PART #
52 .......................... 2 ............................ COTTER PIN-3/16 X 1-1/4" LONG ...........................77-016
53 .......................... 1 ........................................ POSITIONING PIN ......................................747-860
54 .......................... 1 ............................................... UPRIGHT .............................................. 747-906
55 .......................... 1 ............................... POSITION LOCKING SCREW .............................747-927
56 .......................... 4 ..................... BUSHING-1-1/2" ID, 1-3/4" OD X 3/4" OAL .....................747-3
57 .......................... 1 ............................................... UPRIGHT .............................................. 747-905
58 .......................... 1 .............................................. CARRIAGE ............................................747-200
59 .......................... 1 ................................................. SPRING .................................................747-4
60 .......................... 2 ................................................. WHEEL ..................................................99-5
61 .......................... 1 ................................................... RING ..................................................8099-3
62 .......................... 1 ................................................... AXLE .................................................747-921
63 .......................... 2 ................................................ CASTER.................................................747-1
64 .......................... 2 ................................. LEVELING SCREW (LONG) ...............................747-926
65 .......................... 2 ................................ LEVELING SCREW (SHORT) ..............................747-925
66 .......................... 3 ........................................ WASHER-3/4 SAE ........................................77-017
67 .......................... 8 ........................................ WASHER-3/8 USS ........................................506-3
