Current Tools Omni 747 - Cam Shaft and Lever Assembly Component Diagrams

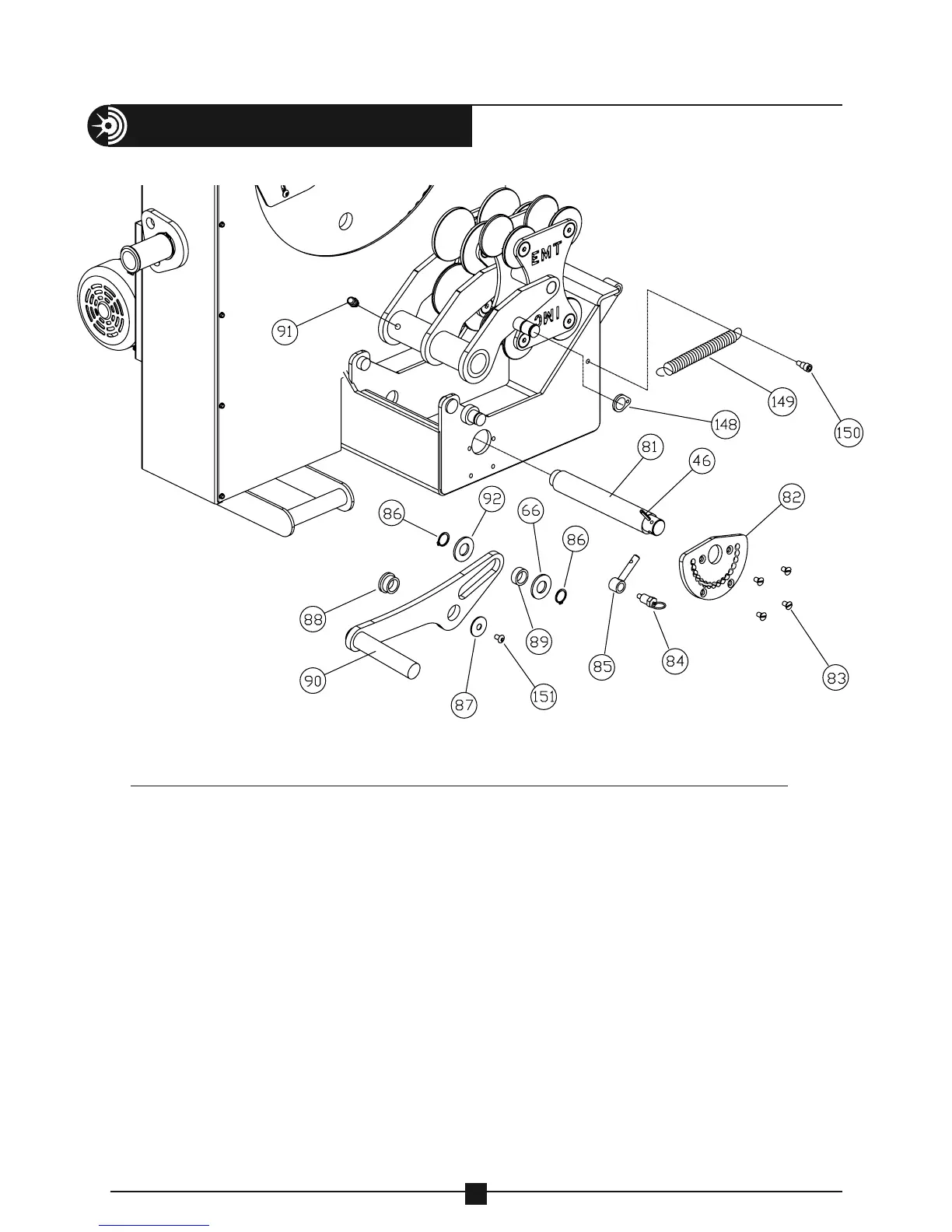

EXPLODED VIEWS
40
ITEM # QTY DESCRIPTION PART #
46 .......................... 1 ....................................... PIN – ROLL 3/16 X 1 ......................................747-18
66 .......................... 1 ....................................... WASHER – 3/4 SAE ......................................77-017
81 .......................... 1 ............................................. CAM SHAFT ...........................................747-840
82 .......................... 1 ....................................... CAP-ADJUSTMENT .....................................747-879
83 .......................... 4 .......................SCREW-FLAT SOC. 1/4-20 X 1/4" LONG ......................747-20
84 .......................... 1 ....................................... PLUNGER-SPRING ........................................ 747-2
85 .......................... 1 ................................................ CAM PIN ............................................747-852
86 .......................... 2 ...................................... RETAINING RING-3/4 ..................................... 2-1109
87 .......................... 1 ..................................... PIVOT ARM WASHER ....................................747-45
88 .......................... 1 ....................... BUSHING-1" OD X 3/4"ID X 3/4" LONG ......................747-44
89 .......................... 1 ......................................... HANDLE ROLLER .......................................747-938
90 .......................... 1 ..................................................LEVER ................................................747-997
91 .......................... 1 .................................. FITTING-GREASE, 1/4-28 ................................... 88-39
92 .......................... 1 ......................................... WASHER-LEVER ........................................747-973
148 ......................... 1 ........................................... RING, SPRING .........................................747-008
149 ......................... 1 ..................................... SPRING, EXTENSION ....................................747-37
150 ......................... 1 ...................................... SCREW, SHOULDER .....................................747-38
151 ......................... 1 ............................... SCREW – BHSC 1/4-20 X 1/2" ...............................99-74
