Current Tools RotaBoom 100 - Page 38

COMPONENT PARTS LISTING — CONTINUED
38

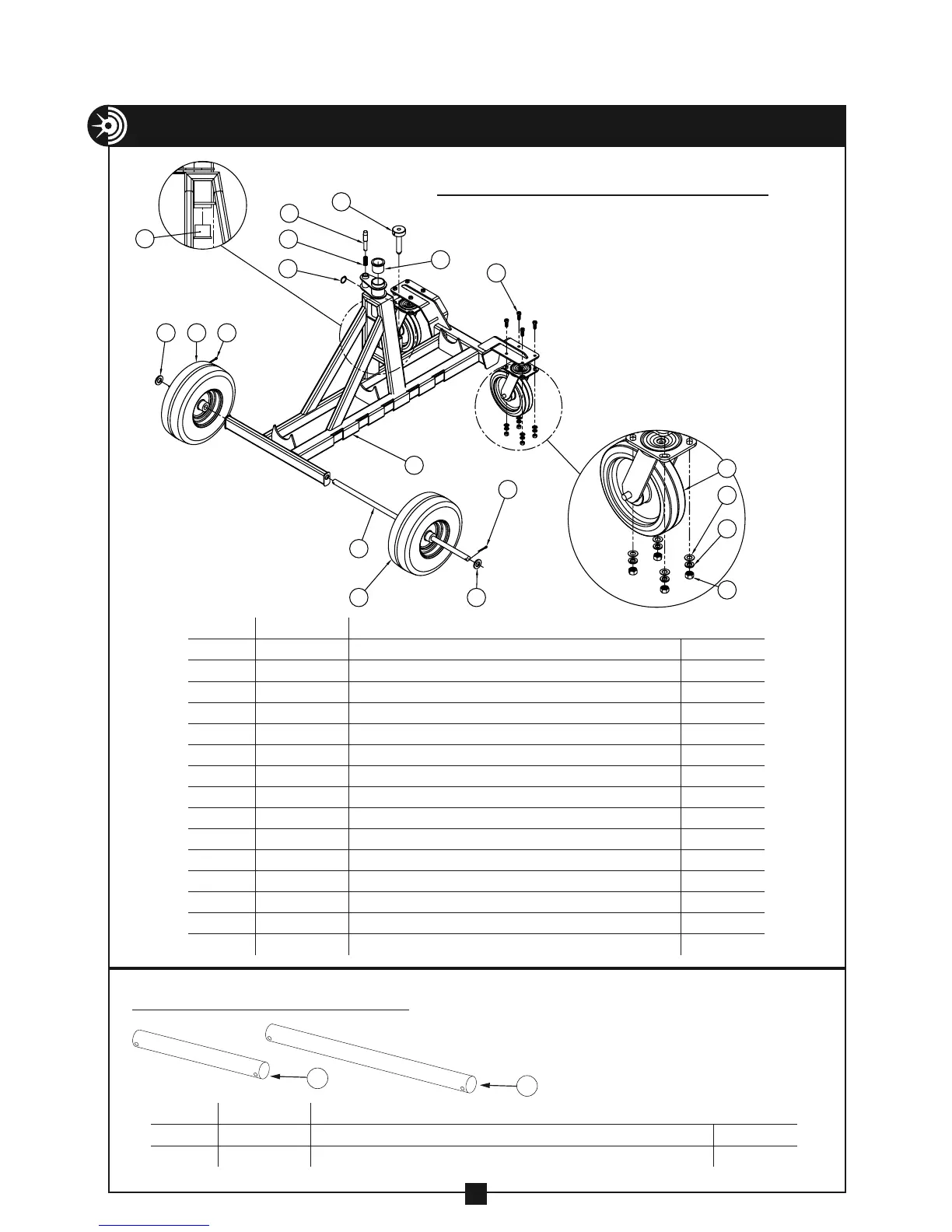

FOUR WHEEL CARRIAGE – 1000
BOOM TUBES – 1850/1860
ITEM # PART # DESCRIPTION QTY.
1
77-016 PIN – COTTER, 3/16" × 1 1/4" 2
2 77-017 WASHER – FLAT 3/4 SAE 2
3 77-429 AXLE 1
4 100-027 BUSHING – BASE 2
5 100-273 FRAME – CARRIAGE 1
6
452-27 WASHER – LOCK 3/8" 8
7 452-28 NUT – HEX, 3/8" 8
8 506-3 WASHER – FLAT, 3/8" 8
9 524-11 SCREW – HX HD CAP, 3/8-16 × 1" 8
10 747-1 CASTER – SWIVEL 2
11 747-4 SPRING 1
12 747-927 SCREW ASSEMBLY – LOCKING 1
13 8091-2 WHEEL 2
14 8099-3 BOOM PIN RING 1
15
747-860 PIN – POSITIONING 1
ITEM # PART # DESCRIPTION QTY.
1 1850 3' BOOM TUBE 1
2
1860 4' BOOM TUBE 1
2 1
13
13
1
2
3
5
14
11
15
12
9
4
8
6
7
4
10
1
2
