Current Tools RotaBoom 100 - Page 39

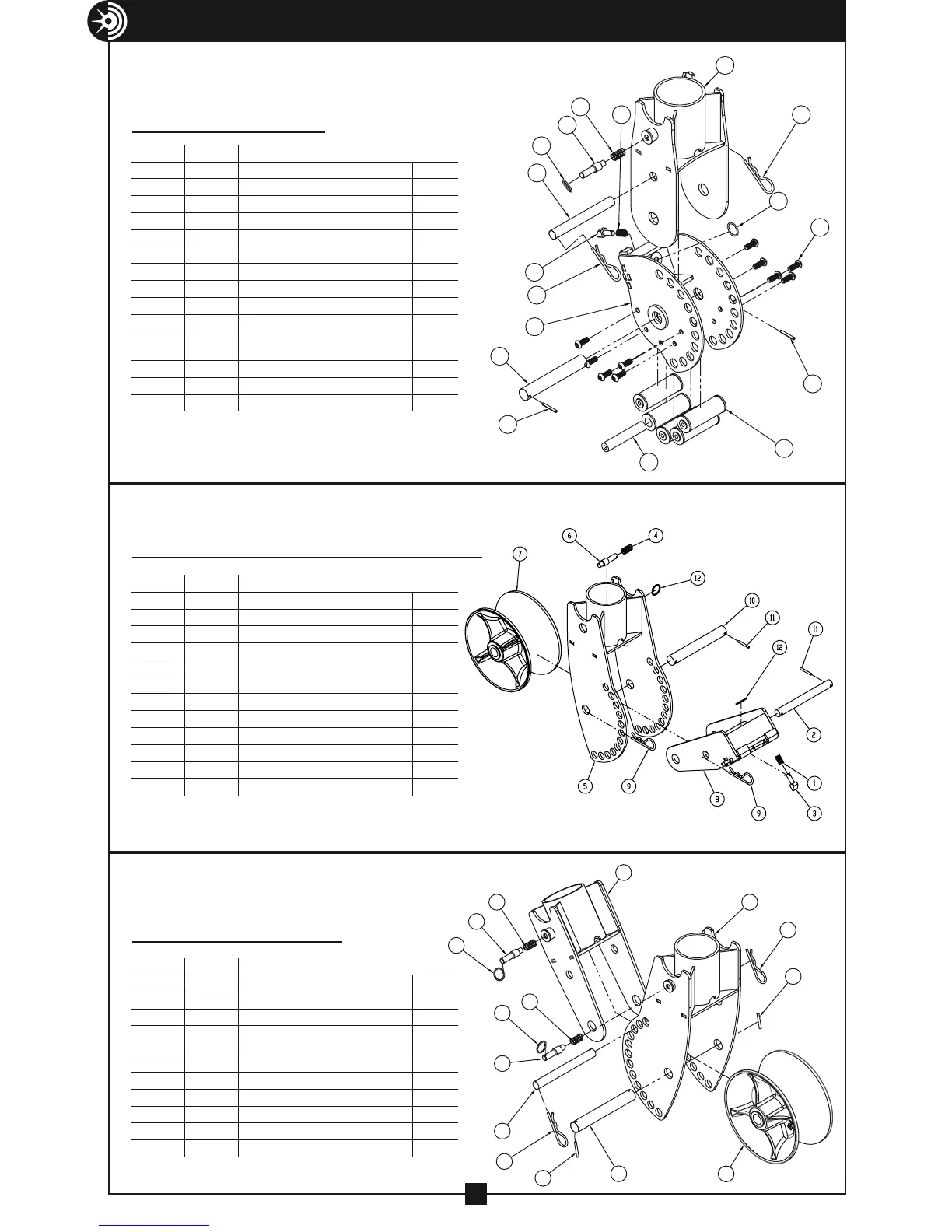

COMPONENT PARTS LISTING — CONTINUED
39
(optional)
NOSE UNIT – 1840
ELBOW UNIT – 1710
14
3
4
5
10
12
2
10
1
6
13
8
7
9
13
14
11
10
5
1
3
2
1
10
5
4
6
9
9
7
8
8
ITEM # PART # DESCRIPTION QTY.
1
33-22 SPRING – COUPLING MOUNT PAWL 1
2 33-485 PAWL – COUPLING MOUNT 1
3 100-011 BOOM PIN SPRING 1
4
100-170 BOOM PIN 1
5 100-172 NOSE UNIT OUTER 1
6 100-173 NOSE UNIT COUPLING ADAPTER 1
7 100-182 NOSE UNIT CUP ADAP ROLLER PIN 5
8 100-203 1 INCH PIN, NOSE UNIT 1
9 100-232 NOSE UNIT ROLLER PIN ASSEMBLY 5
10 406-3 SPRING CLIP 2
11 610-21
SCREW-BUTTON HEAD CAP
(3/8-16 X 1)
10
12 951TR-10 ANGLE ADJUSTMENT PIN 1
13 8094-2A ROLL PIN 3/16 X 1.5 2
14
8099-3 BOOM PIN RING 2
ITEM # PART # DESCRIPTION QTY.
1
100-011 SPRING BOOM PIN 2
2 100-160 ELBOW UNIT OUTER 1
3 100-161 ELBOW UNIT INNER 1
4 333-212
ELBOW UNIT ANGLE
ADJUSTMENT PIN
1
5 100-170 BOOM PIN 2
6 812-487 1 INCH PIN, ELBOW UNIT 1
7 100-219 SHEAVE ASSEMBLY 1
8 406-3 SPRING CLIP 2
9 8094-2A ROLL PIN 3/16 X 1.5 2
10
8099-3 BOOM PIN RING 2
NOSE UNIT with Sheave – 1840-S
ITEM # PART # DESCRIPTION QTY.
1
33-22 SPRING – COUPLING MOUNT PAWL 1
2 333-212 ANGLE ADJUSTMENT PIN 1
3 33-485 PAWL – COUPLING MOUNT 1
4 100-011 BOOM PIN SPRING 1
5 100-160 ELBOW UNIT – OUTER 1
6 100-170 BOOM PIN 1
7 100-219 SHEAVE ASSEMBLY 1
8 100-274 NOSE UNIT COUPLING ADAPTER 1
9 406-3 SPRING CLIP 2
10 812-487 PIN – SHEAVE 1
11
8094-2A ROLL PIN 3/16 X 1.5 2
12
8099-3 BOOM PIN RING 2
