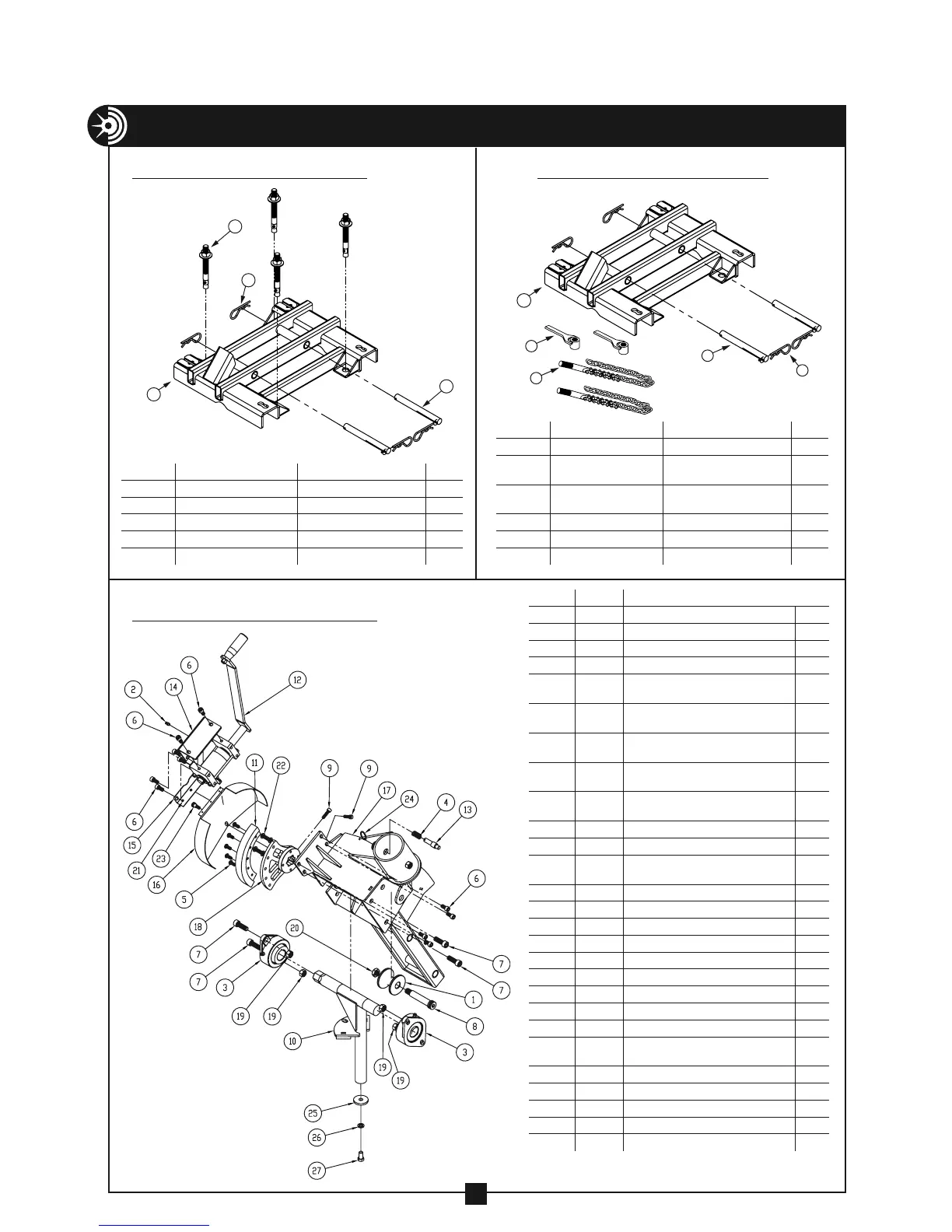

COMPONENT PARTS LISTING — CONTINUED
40
FLOOR MOUNT – 2280
PULLER MOUNT – 1190
ITEM # PART # DESCRIPTION QTY.
1 100-231 FLOOR MOUNT FRAME 1
2 8045-3 WEDGE ANCHOR 4
3 333-212 PIN – 3/4" × 7-3/8" 2
4 406-3 SPRING CLIP 4
5
2280-DECALSHEET DECALS (NOT SHOWN) 1
CHAIN MOUNT – 2281
ITEM # PART # DESCRIPTION QTY.
1 100-231 FLOOR MOUNT FRAME 1
2 88-42
CHAIN MOUNT HANDLE
ASSEMBLY
2
3 88-21L
CHAIN MOUNT CHAIN
ASSEMBLY
2
4 333-212 PIN, 3/4"× 7-3/8" 2
5 406-3 SPRING CLIP 4
6
2280-DECALSHEET DECALS (NOT SHOWN) 1
2
3
4
5
1
2
1
3
4
ITEM # PART # DESCRIPTION QTY.
1
2-1103 ROLLER – SAFETY 1
2 88-39 GREASE FITTING 1
3 100-028 ROTATION T SUPPORT 2
4 100-011 BOOM PIN SPRING 1
5 100-018
SCREW-BUTTON HEAD SOCKET
(5/16-18 × 3/4)
5
6 100-019
SCREW-SOCKET HEAD CAP
(3/8-16 × 3/4)
10
7 100-020
SCREW-SOCKET HEAD CAP
(1/2-13 × 1.5)
4
8 100-021
SCREW-SHOULDER SOCKET
(3/4-10 × 3.25)
1
9 100-025
SCREW-SOCKET HEAD CAP
(5/16-18 × 1.125)
2
10 100-115 ROTATION T 1
11 100-152 GEAR SEGMENT 1
12 100-156
WORM BOX ASSEMBLY (SEE
EXPLODED VIEW ON PAGE 41)
1
13 100-170 BOOM PIN 1
14 100-192 WORM COVER 1
15 100-210 GEAR HOUSING PLATE 1 1
16 100-217 GEAR HOUSING 1
17 100-265 PULLER MOUNT 1
18 100-267 GEAR HUB AND PLATE 1
19 280-2G NUT-HEX ZINC (1/2-13) 4
20
281-1I NUT-HEX, NYLON INSERT 5/8-11 1
21 450-44A RIVET - BLIND 1/8" 3
22 610-21
SCREW-BUTTON HEAD CAP
(3/8-16 × 1)
4
23 752-100 3/8 X 3/8 LG SHOULDER BOLT 1
24 8099-3 BOOM PIN RING 1
25
100-297 RETAINING WASHER 1
26 281-2C WASHER – LOCK 1/2" 1
27
8092-2 SCREW – HX HD CAP (1/2-13 × 1") 1
