These controllers contain ESD-sensitive components. Use appropriate pre-
cautions in connecting, disconnecting, and handling the controller. See installation
suggestions in Appendix A for protecting the controller from ESD damage.
2 — INSTALLATION & WIRING
Working on electrical systems is potentially dangerous. You should
protect yourself against uncontrolled operation, high current arcs, and
outgassing from lead acid batteries:
UNCONTROLLED OPERATION — Some conditions could cause the motor to
run out of control. Disconnect the motor or jack up the vehicle and get
the drive wheels off the ground before attempting any work on the motor
control circuitry.
HIGH CURRENT ARCS — Batteries can supply very high power, and arcing can
occur if they are short circuited. Always open the battery circuit before
working on the motor control circuit. Wear safety glasses, and use properly
insulated tools to prevent shorts.
LEAD ACID BATTERIES — Charging or discharging generates hydrogen gas,
which can build up in and around the batteries. Follow the battery man-
ufacturer’s safety recommendations. Wear safety glasses.
+
CAUTION

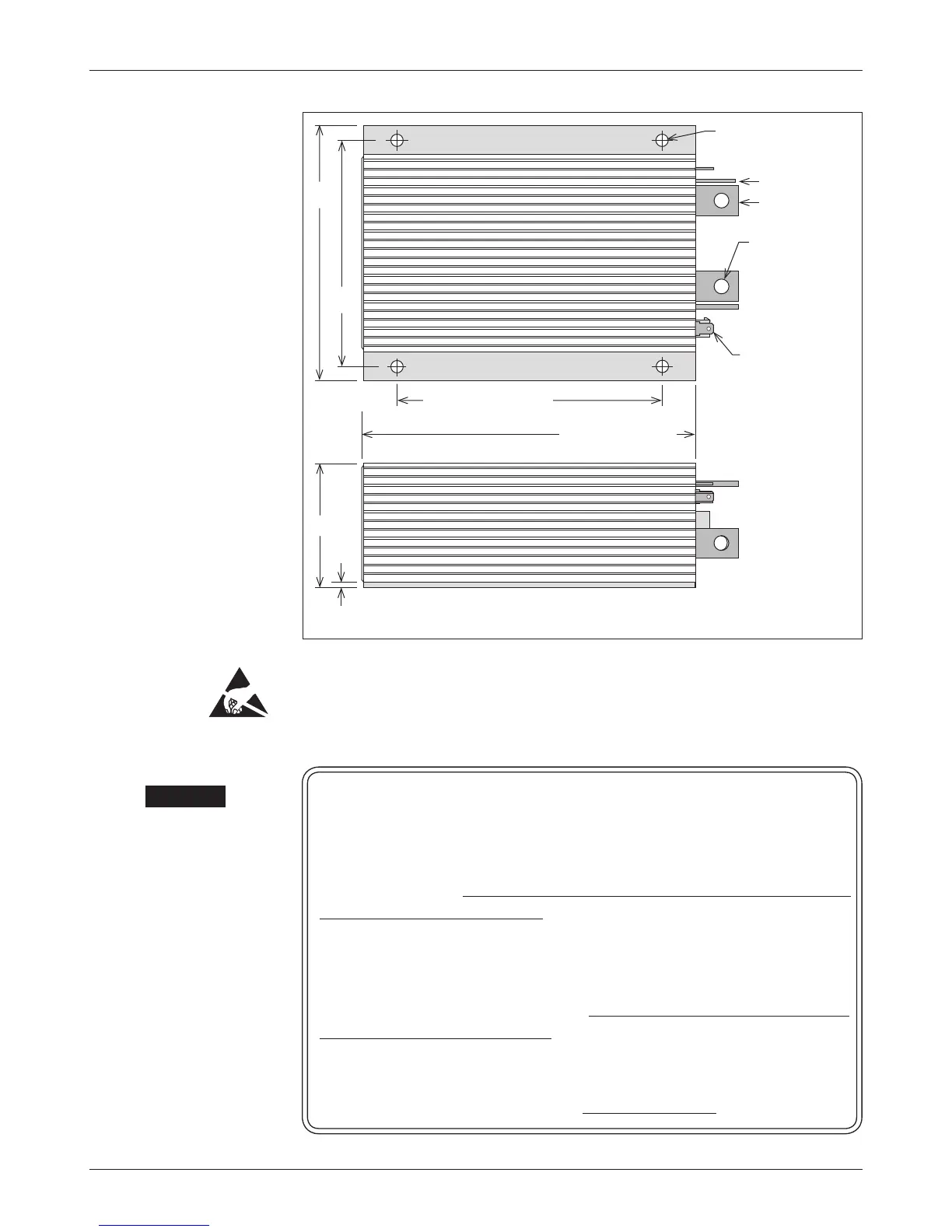

Fig. 3 Mounting
dimensions, Curtis 1209M
and 1221M motor
controllers.
push-on terminal,
4 plcs
B+B-M-
MODEL 1209M:
229
MODEL 1221M:
281
5.0
80
MODEL 1209M:
152.4
MODEL 1221M:
203
180
165
8.5 dia.
25
×
19
×
5
A2:
22.8
×
19
×
5
4
Curtis 1204M/1205M/1209M/1221M Manual
