Curtis 1232E/34E/36E/38E & 1232SE/34SE/36SE Manual, os 30
5
24 NOVEMBER 2015

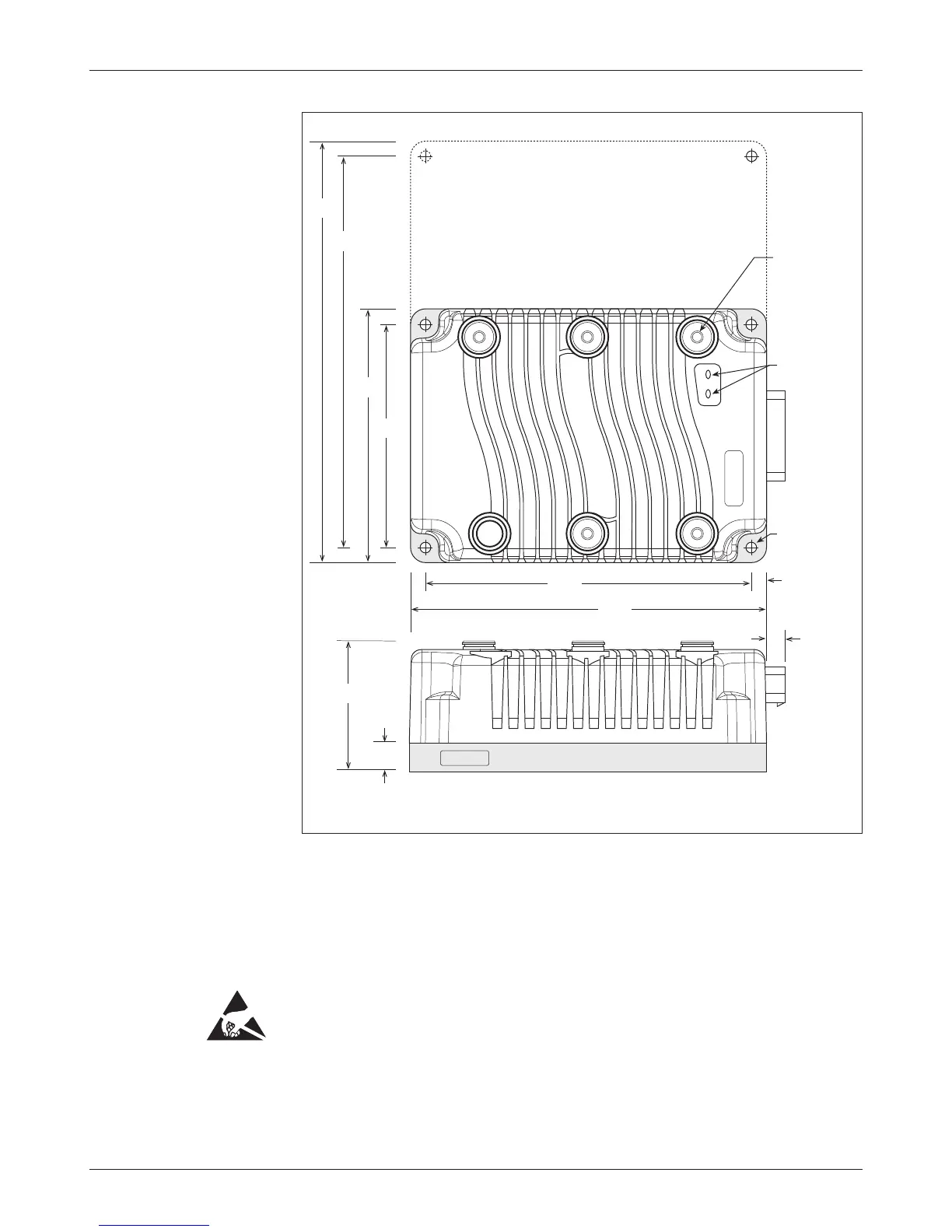

Fig. 2c Mounting dimensions,
Curtis 1236E/SE and 1238E
motor controllers.
Dimensions in millimeters.
You will need to take steps during the design and development of your
end product to ensure that its EMC performance complies with applicable
regulations; suggestions are presented in Appendix A.
ese controllers contain ESD-sensitive components. Use appropriate
precautions in connecting, disconnecting, and handling the controller. See
installation suggestions in Appendix A for protecting the controller from ESD
damage.
2 — INSTALLATION & WIRING
B
-
B
+
FUSE
U
V
W
M8 x 1.25,
19
85
212
232
10
Status LEDs
7.0 thru,
4 plcs
165
145
255
275
1236E/SE
1238E
13 (typ.)
5 plcs
