3 — ACU-SET SOFTWARE
the values on the left to the editable list on the right. The user
can then make any necessary changes before
Save to File.
Clear Values This function removes all the values that were
entered by the user.
Save to File Saves the parameters that have been entered into
the editable list on the right.
Reset State-of-Charge Resets that value in the Acuity.
Update Time & Date Allows the user to set the time and date
of the real-time clock in the Acuity.

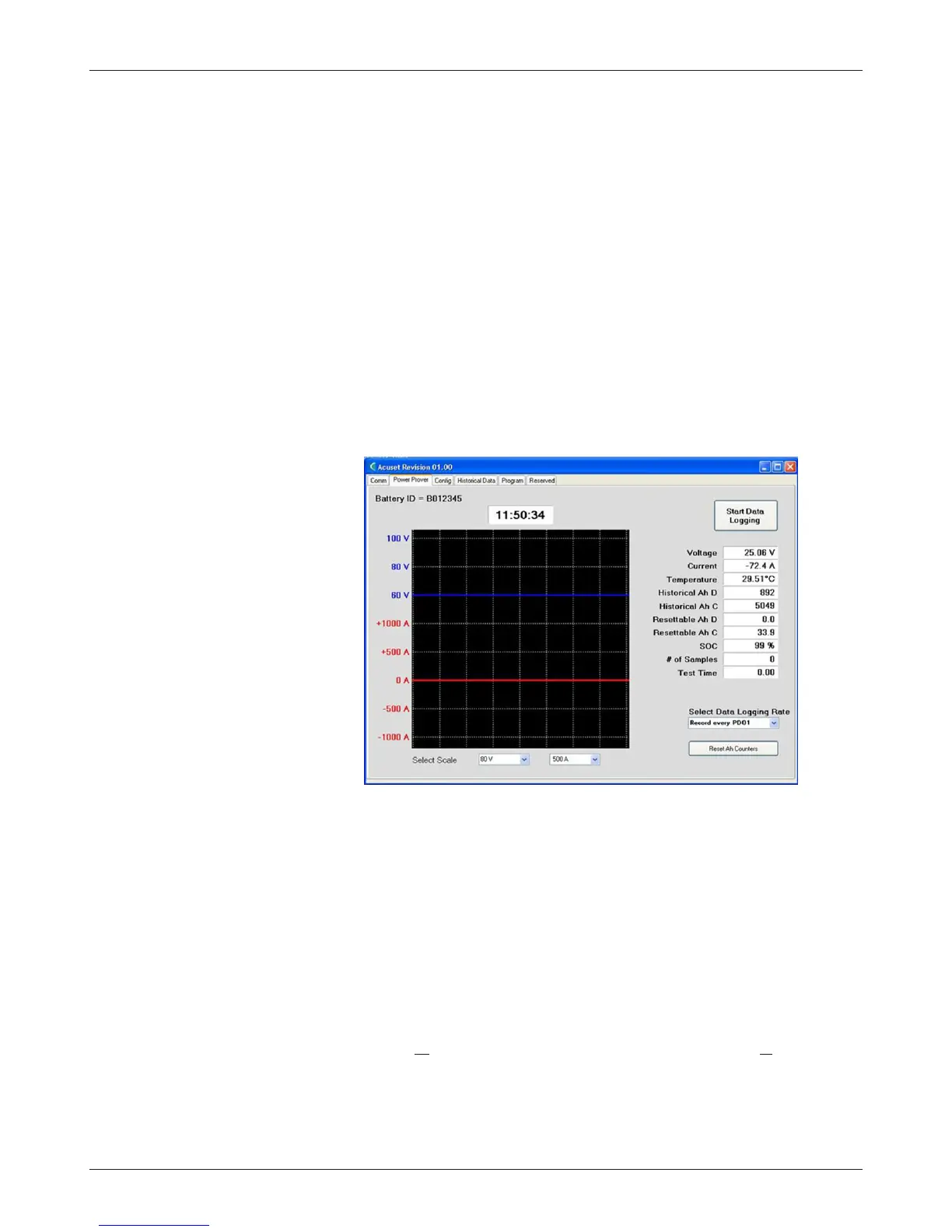

Power Prover (viewing & recording instantaneous data)
The Power Prover screen allows the user to view live data being transmitted
from the Acuity and to record that data on the host computer.
The Power Prover screen contains the following functions.
Select Scale Two pull-down menus allow you to select the voltage scale
and the current scale to be displayed on the computer.
Select Data Logging Rate The rate at which data is recorded to a file on the
computer can be selected using the drop-down menu. It is set in multiples of
PDO1 messages. The PDO1 transmission rate is 100 ms by default. It can be
reset using a CAN object.
Start Data Logging Begins storing data that is received from the Acuity’s mea-
surements into a file on the computer, at the rate set by
Select Data Logging Rate.
Reset AHr Counters Resets the Ampere Hour counters to zero. “D” represents
Ampere Hours Discharged, and “C” represents Ampere Hours Charged.
Battery ID This is an identifier unique to that Acuity and therefore to that
battery.
Time-of-Day Time of day as reported by the host computer.
