Curtis 1030 Acuity Manual, Rev. C
3 — ACU-SET SOFTWARE
Handling historical data

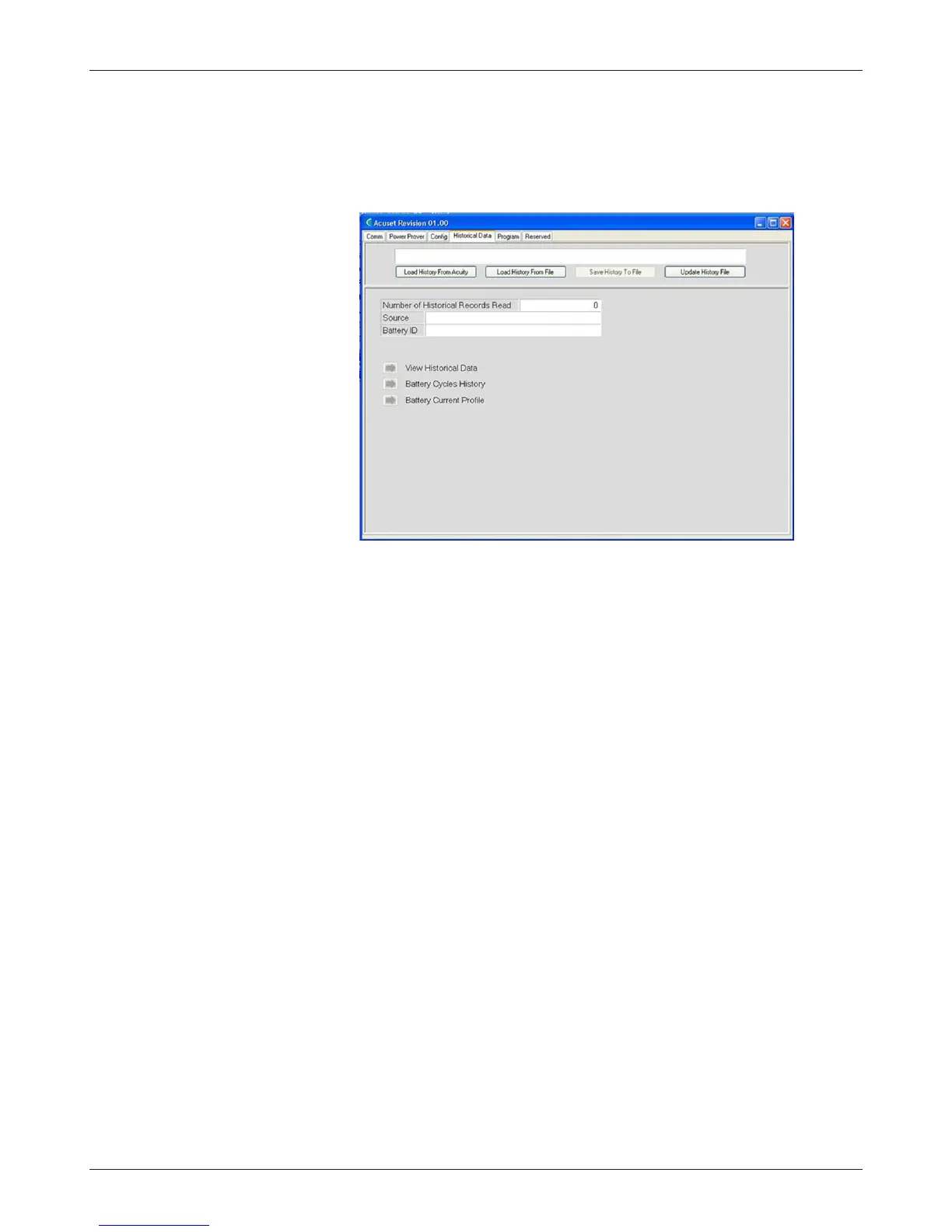

The Historical Data screen allows the user to retrieve historical data from the
Acuity.
Four buttons near the top allow the user to handle the historical data.
Load History From Acuity This function retrieves data records from the memory
of the Acuity. The number of records and the unique identifier of the Acuity
(and this battery) are displayed. There are three ways to view the data, each
with its own subscreen.
1
View Historical Data Displays the raw data for each Acuity parameter in
tabular form. The battery parameters plotted using
Select Parameters to Plot are:
State of Charge
Temperature
Ah Delivered / Returned
Percent Ah Returned
Estimated Ah Capacity.
2
Battery Cycles History Displays a graphical representation of the battery
history data. Slide bars help select specific ranges of data to view and simplify
the identification of measurements of particular interest, such as when the state
of charge has fallen below 20%.
3
Battery Current Prole Displays a bargraph showing the ranges over
which the ampere hours were consumed.
Examples of these three data displays are shown on the next page.
