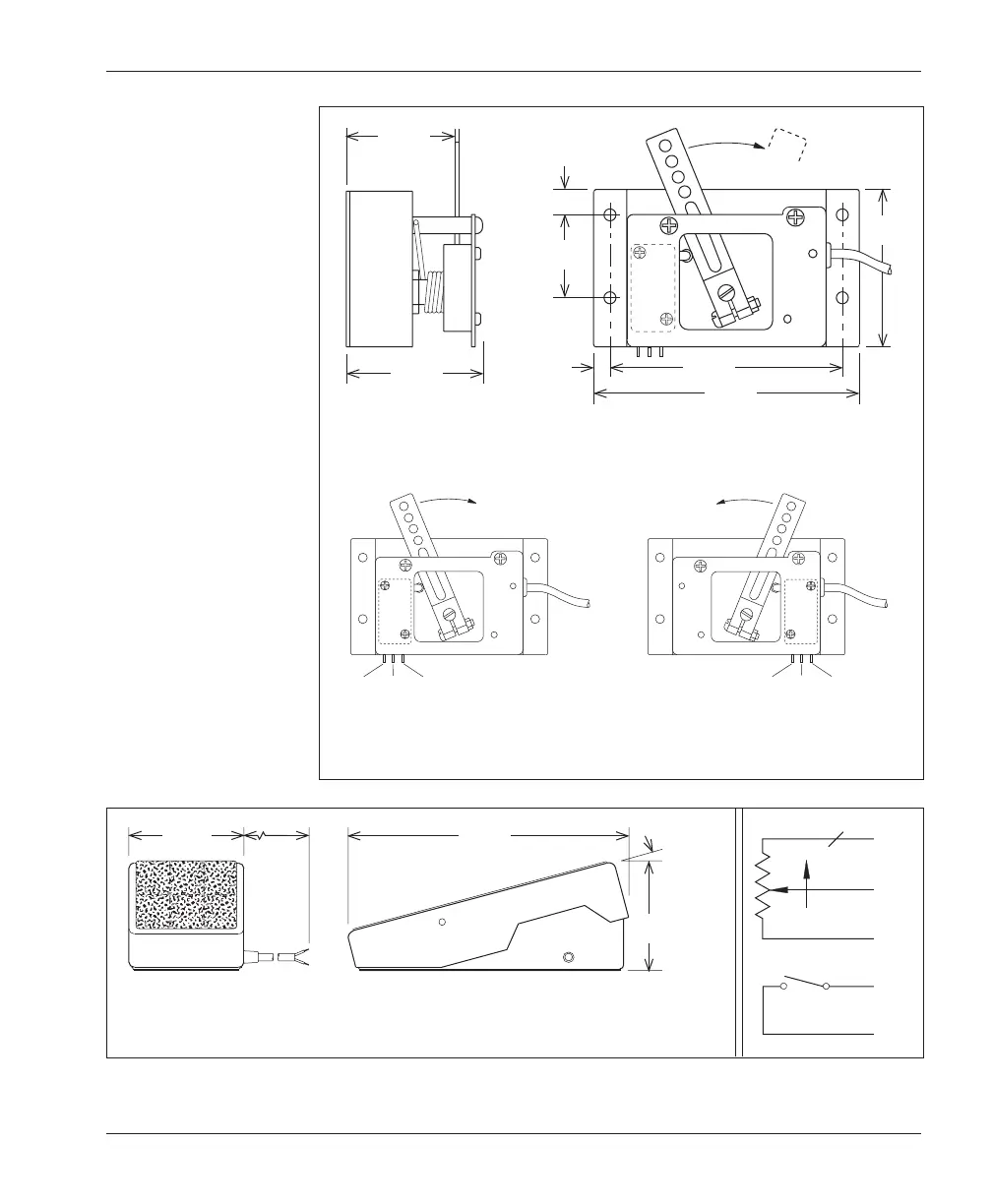

Fig. 4 Mounting
dimensions,
Curtis PMC potboxes
PB-5, -6, -9, and -10.
Fig. 5 Curtis PMC footpedal FP-2.
HARDWARE INSTALLATION
10 (0.38)
32
(1.25)
6
(0.25)
89 (3.5)
60
(2.37)
102 (4.0)
45
°
Dimensions in millimeters and (inches)
RIGHT-HAND OPERATION LEFT-HAND OPERATION
COM. N.O. N.C.
N.C. N.O. COM.
WITH MICROSWITCH: PB-6
WITHOUT MICROSWITCH: PB-5
WITH MICROSWITCH: PB-9
WITHOUT MICROSWITCH: PB-10
42 (1.65)
52 (2.06)
Dimensions in millimeters and (inches)
≈ 15 °
244 (9.6)
112 (4.4)
112
(4.4)
1.8 m
(6 ft)
WIRING:
BLACK = throttle input BLUE = switch, common (Note: The green wire is not used with
WHITE = throttle input ORANGE = switch, normally open 1204X/1205X/1209/1221 controllers)
BLK
ON
GRN
(not used)
WHT
ORG
BLU
COM.N.O.
