CUSHCRAFT R9 - Assemble Plastic Spacers to Radial Rings

11
4PLACES
941
4PLACES
5
#3- ASSEMBLE PLASTIC
SPACERSTO RADIAL RINGS
09 010009 SSMachine #8-32x5/8" 12
Screw (1.6cm)
11 010011 SSHEXNUT 8-32 15
941 011941 SSSplitLock #8 15
Washer
231 010231 SSMachine 8-32x1-3/4" 3
Screw (4.45cm)
657 194657 Aluminum 6
L Bracket
940 360940 Aluminum #8 12
FlatWasher
BB R8BB R8 Tube 1-1/4"x72" 1
(3.2x182.9cm)
BC R8BC R8 Tube 1-1/8"x72" 1
(2.9x182.9cm)
5072 205072 4-Hole
PlasticInsulator
5096 205096 3-Hole
5097 205097 2-Hole
KEY P/NDISPLAY DESCSIZEQTY
657
2PLACES
R9
941
11
231
11
4PLACES
940
4PLACES
5072
09
4PLACES
BB
BB
231
231
941
11
657
2PLACES
657
2PLACES
5096
5097
BC
BC
11
4PLACES
940
4PLACES
940
4PLACES
09
4PLACES
09
4PLACES
941
4PLACES
941
4PLACES
941
11

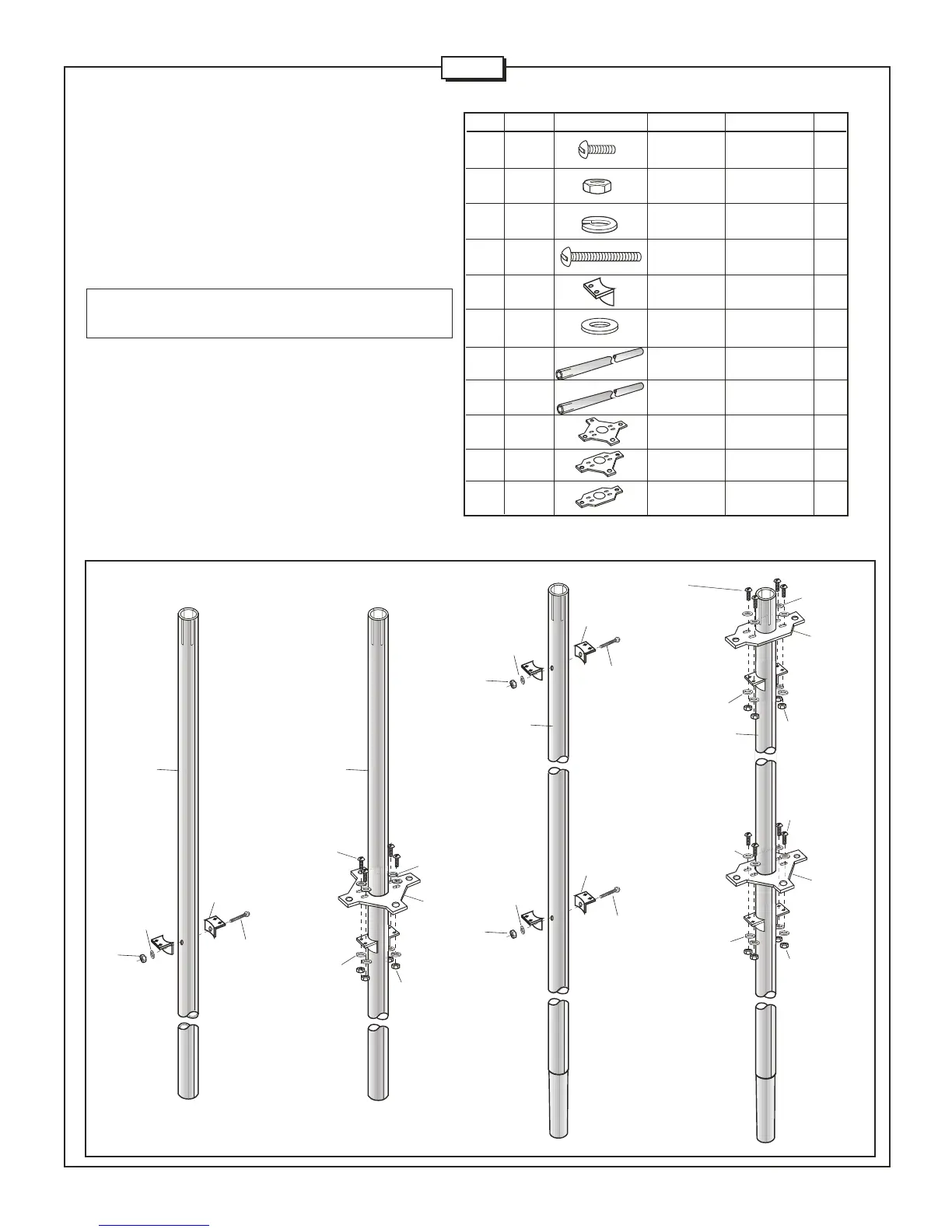

PlacethealuminumL-brackets(657)ontube(BB)andsecurethem
withhardware(231,941&11).Repeatthisaswellontube(BC)as
shownonFig."F".Slidethe4-holeinsulator(5072)ontube(BB)
andsecureitwithapplicablehardware(09,940,941&11).Repeat
thesamewithtwoandthreeholeinsulators(5096&5097)on
tube (BC)according to Fig. "F".
NOTE:Makesurethatthetubesareorientedwiththeslottedends
onthetopwhenyoustartassemblingthehardwareontothem.
FIGUREF
1
1
1
PlasticInsulator
PlasticInsulator
