Page S-3
Repair and Service Manual
B
B

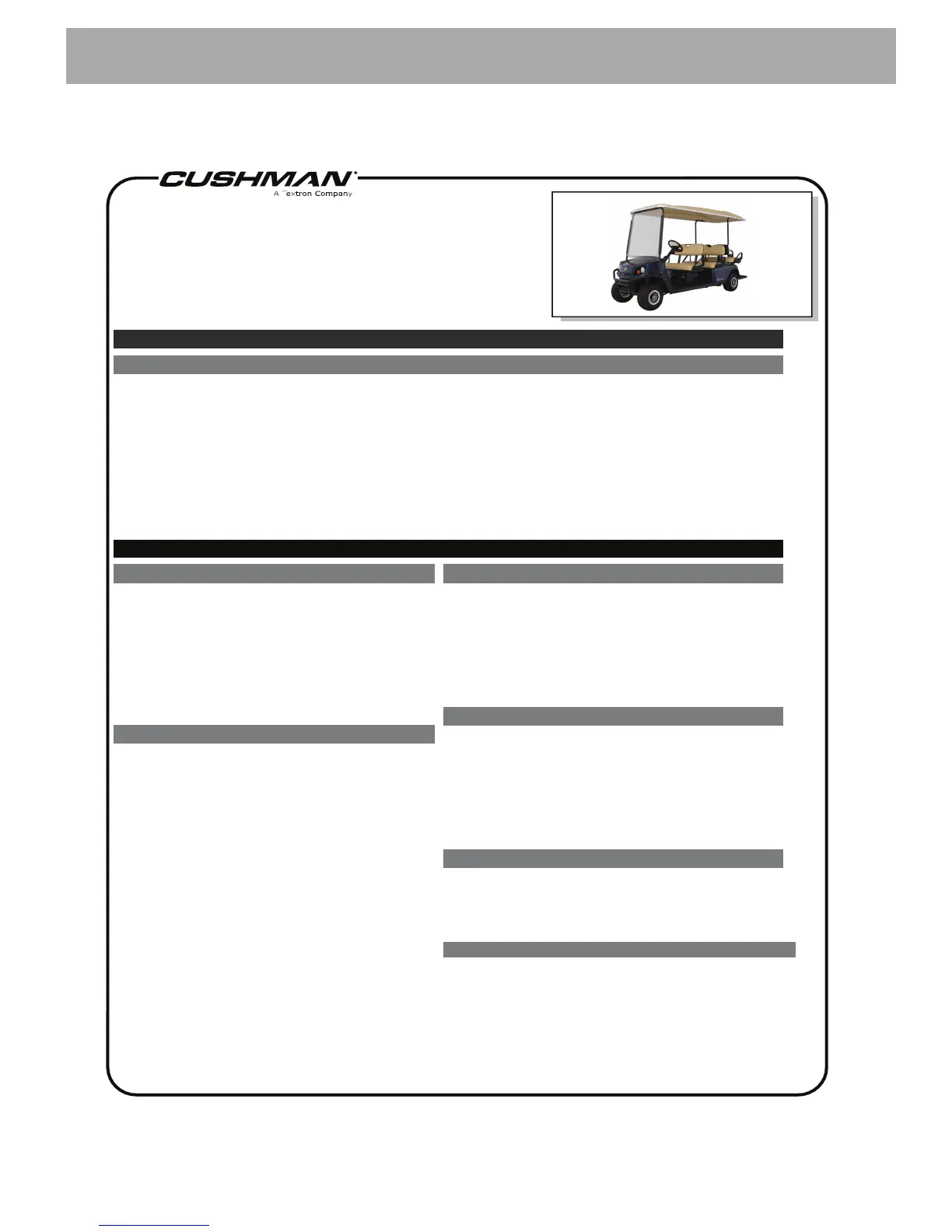

GENERAL SPECIFICATIONS
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
MODEL: SHUTTLE™ 6
TYPE: GAS POWERED PERSONNEL CARRIER
MODEL YEAR: 2012
Part No:. 618853
Engine: 13 hp (9.7 kW) Exceeds SAE J1940 Standard, 4 cycle, 24.5 ci (401 cc) single cylinder, air-cooled by Kawasaki
l Valve Train: Ov erhead valve l Fuel System: Fixed float bowl with remote pulse fuel pump
l Lubrication: Pressurized oil system, spin-on oil filter l Ignition: Electronic spark/magneto
l Balancer: Internal counter rotating balance shaft l Air Cleaner: Replaceable dry cartridge
Electrical: Starter/Generator, solid-state regulator, 12 Volt maintenance free battery (425 CCA, 60 minute reserve)
Drive Train: Automatic, continuously variable transmission (CVT)
Brakes: Dual rear wheel mechanical self-adjusting drum brakes.Single point park brake release with self-compensating system
Transaxle: Differential with helical gears, ground speed governor, forward/reverse
Performance
Ov erall Length 133.5 in (339.0 cm) Seating Capacity 6 Person
Ov erall Width 46.5 in (119.0 cm) Dry Weight 896 lb (405 kg)
Ov erall Height (No Canopy) 48.6 in (123.0 cm) (Top of steering wheel) Curb Weight 936 lb (425 kg)
Ov erall Height (With Canopy ) 72.0 in (183.0 cm) Vehicle load capacity 1200 lb (540 kg)
Wheel Base 93.5 in (237.0 cm) Outside Clearance Circle 25.5 ft (7.8 m)
Front Wheel Track 34.2 in (86.7 cm) Speed (Level Ground) 16 mph ± 0.5 mph (26 kph ± 0.8 kph)
Rear Wheel Track 38.0 in (97.0 cm) Towing Capacity N/A
Gnd Clearance @ Differential 4.3 in (11.0 cm)
Steering & Suspension
Vehicle Power
Steering Self-compensating reduction rack and pinion
Power Source 4 Cy cle 24.5 cu in (401 cc). Low Emission Front Suspension Leaf springs with hydraulic shock absorbers
Valve Train Single Cy linder OHV Rear Suspension Leaf springs with hydraulic shock absorbers
Horsepower (kW) 13 hp (9.7 kW) Exceeds SAE J1940 Std. Service Brake Rear wheel mechanical self-adjusting drum
Electrical System Starter/Generator. Solid State Regulator Parking Brake Self-compensating, single point engagement
Battery (Qty, Type) One, 12 Volt Maintenance Free Front Tires Links 18 x 8.50 - 8 (4 Ply Rated)
Key or Pedal Start Pedal Rear Tires Links 18 x 8.50 - 8 (4 Ply Rated)
Air Cleaner Industrial Rated Dry Filter
Body & Chassis
Lubrication Pressurized Oil System Frame Welded steel. DuraShield™ powder coat
Oil Filter Spin-On Front & Rear Body & Finish Injection molded TPO
Cooling System Air Cooled Seat Pod & Finish Fiberglass & Gelcoat
Fuel Capacity 5.8 Gallon (22.0 L) tank Standard Color Champagne
Drive Train Continuously variable transmission (CVT)
Transaxle Differential with helical gears
Gear Selection Forward - Reverse
Rear Axle Ratio 11.42:1 (Forward) 15.78:1 (Reverse)
Some items shown may be optional equipment
PRODUCT OVERVIEW
Dimensions
PRODUCT SPECIFICATION
CONFIGURATION HIGHLIGHTS
Specications are subject to change without notice
* Field installed accessories may require installation charges
Noise & Vibration
Sound pressure; continued A-weighted equal to or
less than 76 db(A)
Highest RMS value of weighted acceleration is 1.23 m/s
2
Highest RMS value of weighted acceleration is less than
2.5 m/s
2
The uncertainty of measurement is 0.69 m/s
2
Noise
Vibration, WBV
Vibration, HAV
