Cushman SHUTTLE 4X - Front Shock Absorber Replacement; Front Suspension; Front Suspension Components

Page E-5
Repair and Service Manual
B
B
FRONT SUSPENSION AND STEERING
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
FRONT SUSPENSION

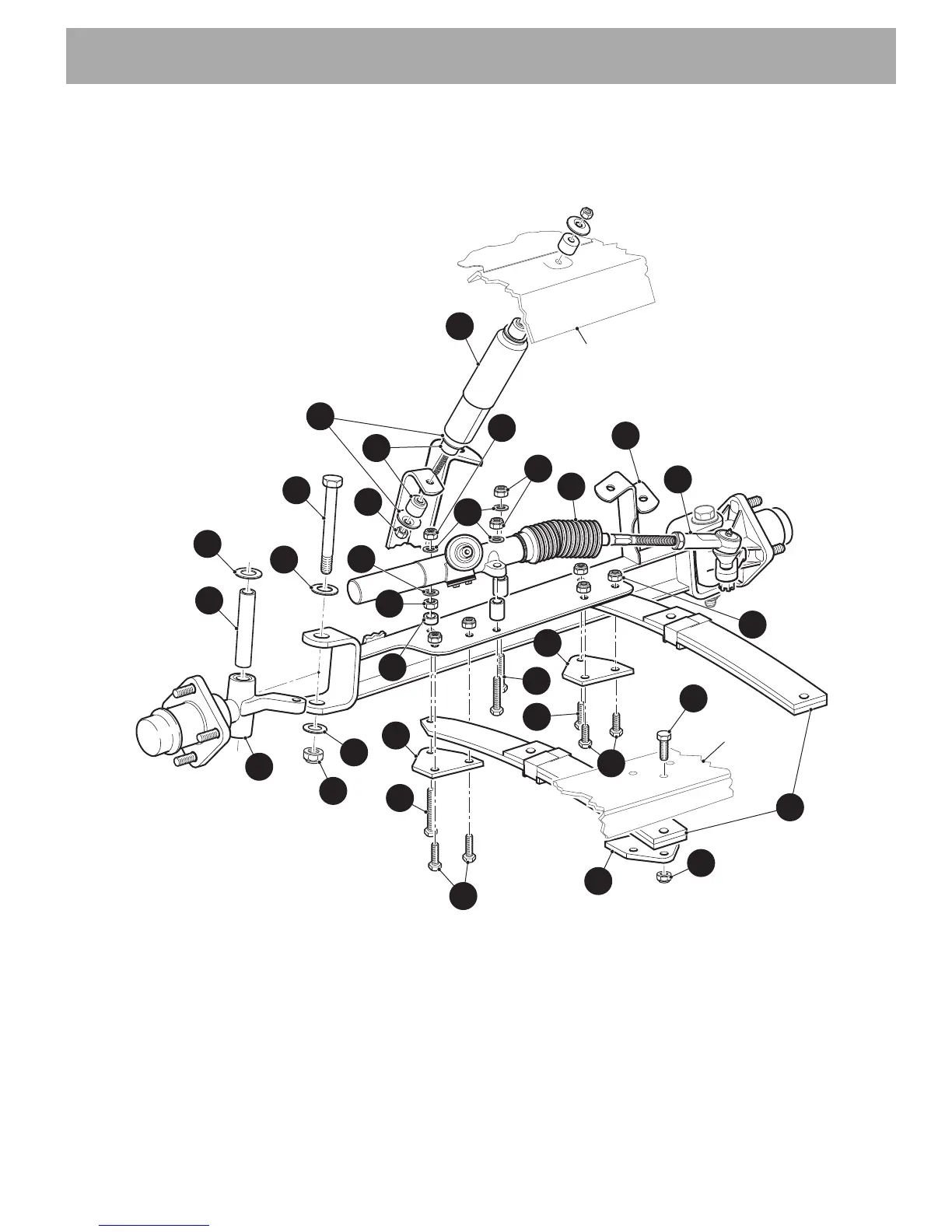

Fig. 6 Front Suspension Components
Front Shock Absorber Replacement
Tool List Qty.
Wrench, 9/16".............................................................. 1
Remove the nut (1) from the bottom of the shock
absorber (2) at the front axle (3) (Ref Fig. 6).
Compress shock absorber to clear the mounting
bracket.
Loosen the nut securing the top of the shock absorber to
the vehicle frame and then rotate the shock absorber
while holding the nut in place with a wrench.
Remove the shock
absorber.
*NOTE: Tie Rod Not Shown for Clarity
Part of
Frame
Part of
Frame
2
5
4
1
7
9
11
12
24
20
10
6
8
18
26
27
17
25
28
18
13
24
3
29
16
15
15
14
21
23
22
19
