Cushman SHUTTLE 4X - Solenoid Wiring

Page F-14
Repair and Service Manual
B
ELECTRONIC SPEED CONTROL - TCT
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Reconnect the BL- battery cable and replace the seat.

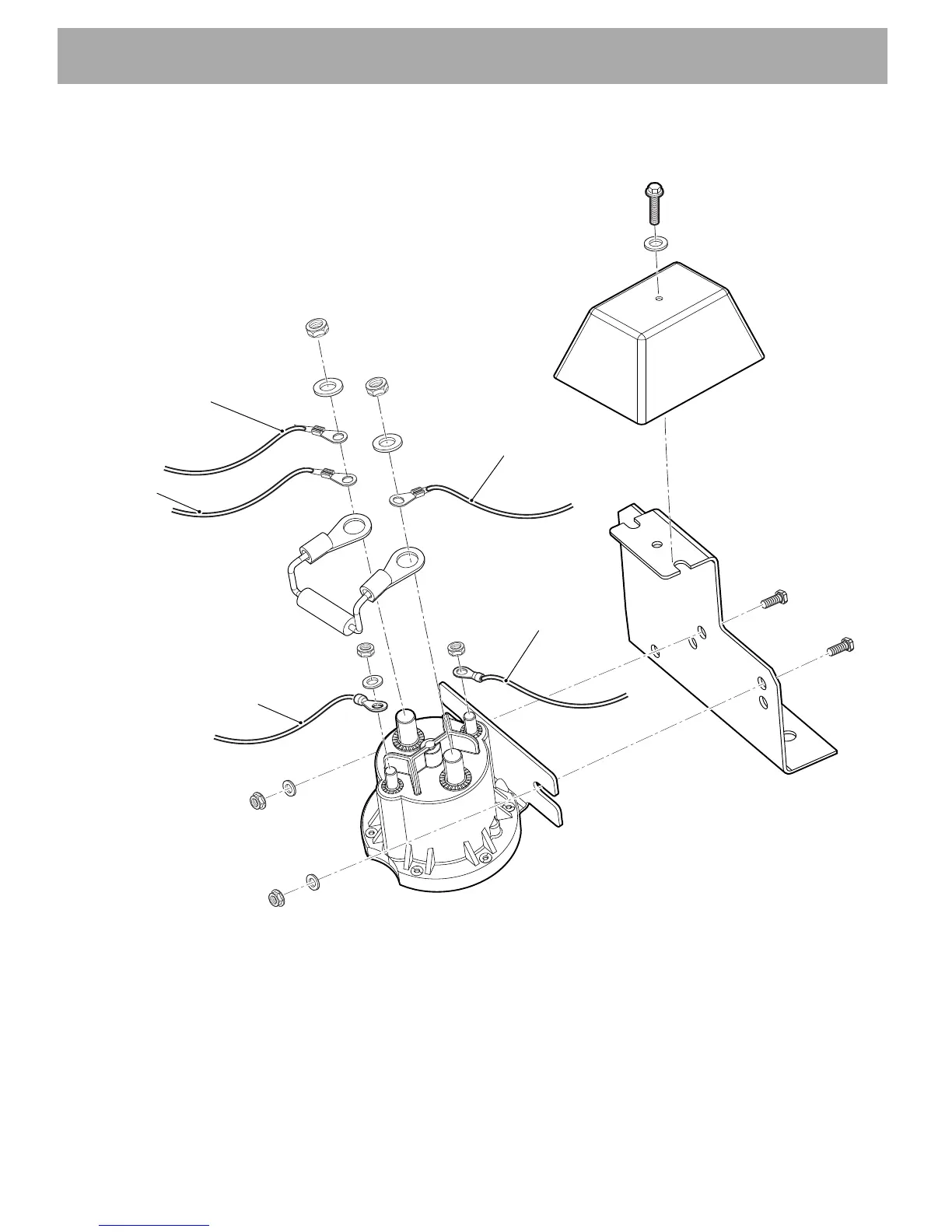

Fig. 13 Solenoid Wiring
SOL+
Red Wire Ring Terminal
From Main Wire Harness
SOL- From Controller
Blue Wire Ring Terminal
From Main Wire Harness
Yellow Wire Ring Terminal
From Main Wire Harness
