Cushman SHUTTLE 4X - Controller Connectors and Connections

Page F-8
Repair and Service Manual
B
ELECTRONIC SPEED CONTROL - TCT
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

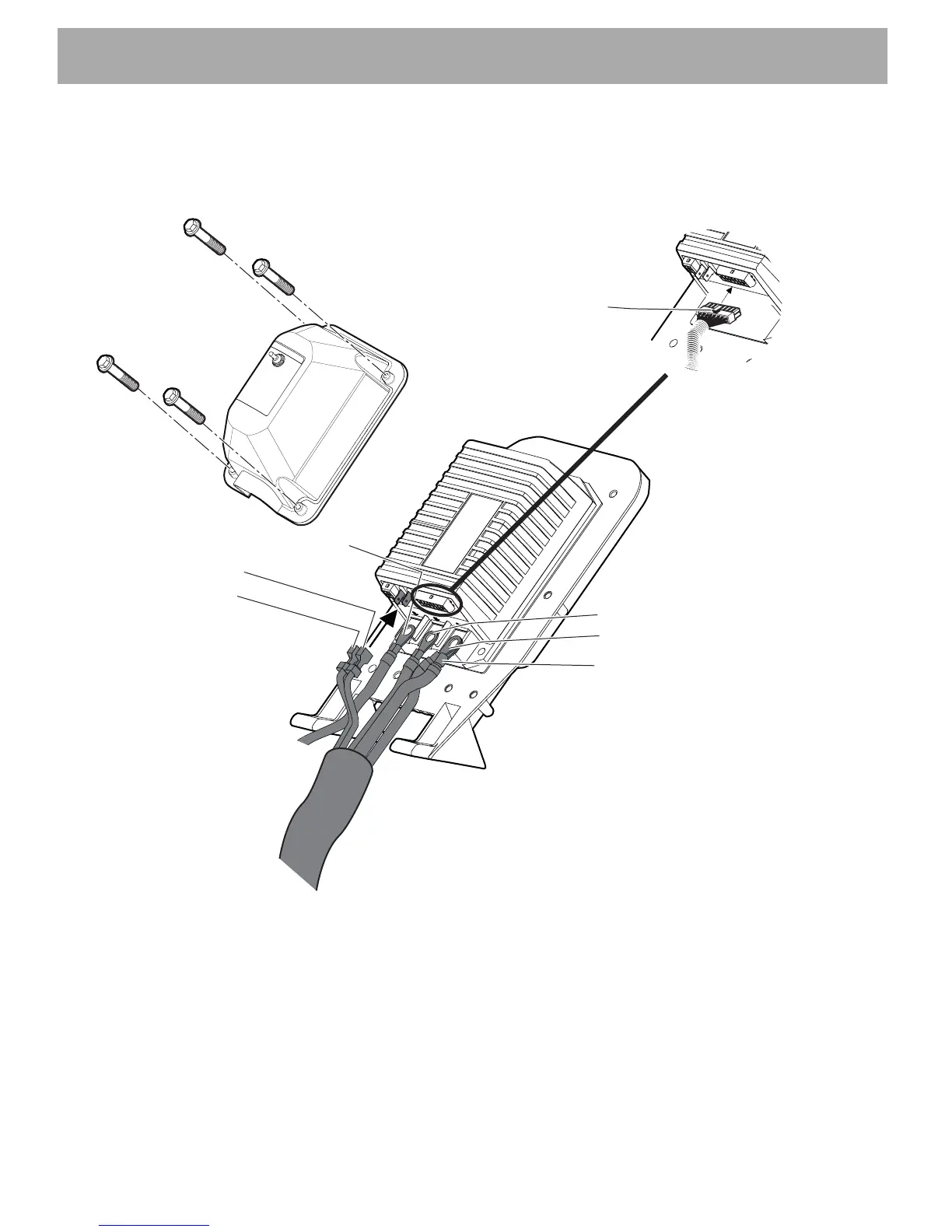

Fig. 8 Controller Connectors and Connections
RUN
TOW
C - From Motor 4AWG
A1 - From Motor 4AWG
CB+ To Solenoid 4AWG
CB- To Battery BL-
10AWG White Motor Wire
10AWG Black Motor Wire
16 PIN Plug from Main Wire Harness
to Controller
C
A1
CB+
CB-
