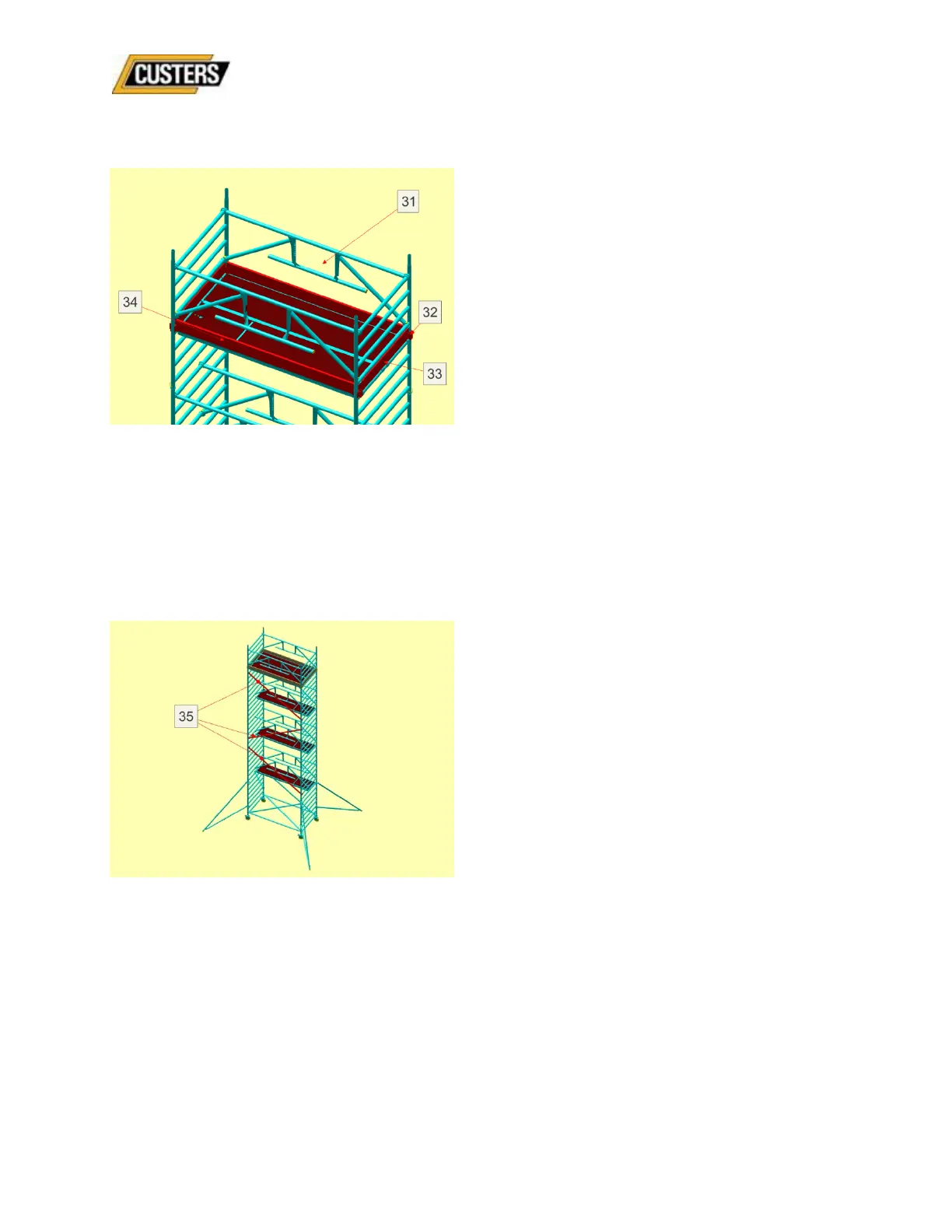

Fig.20
31: Climb to the upper level;
32: Place the four toe board brackets;
33: Place both end toe boards
34: Place both longitudinal toe boards;
The above shows the assembly of the freestanding mobile scaffold tower. If the mobile scaffold
tower is placed against the façade (with a distance between façade and platform not greater
than 15 cm), the edge protection (guardrail at hip height, knee railing and toe board) on the
façade side may be omitted.
The wide mobile scaffold tower, as described above, meets the stability requirements. For
improved stiffness, we recommend adding additional diagonal ledgers in zigzag to the “street
side”.
Fig.21
35: Add additional diagonal ledgers from
platform height 2m, each section 1
diagonal from rung 1 to 7 to be placed
in zigzag pattern.
