7 ASSEMBLING THE WIDE MOBILE SCAFFOLD TOWER (3,5,7,9,11
m)

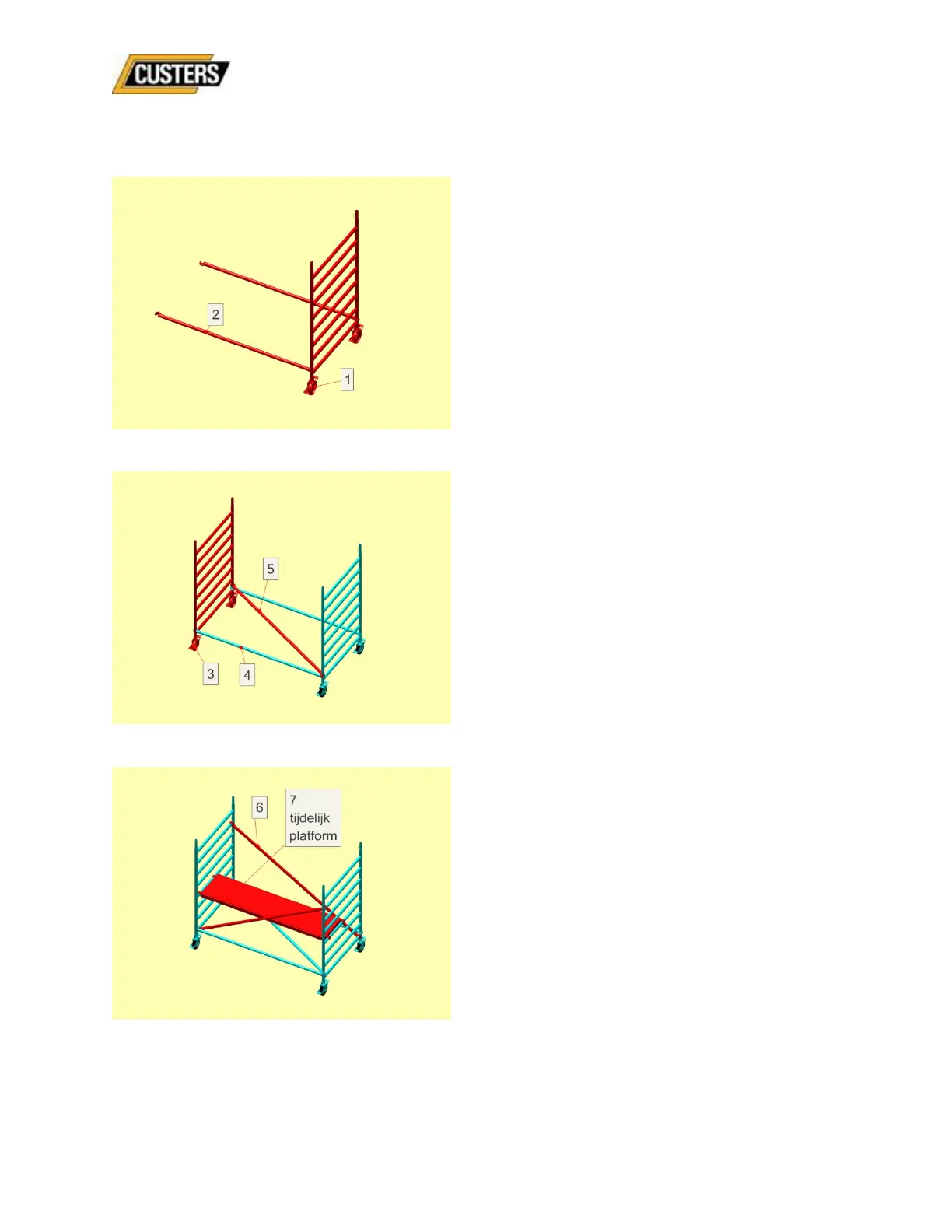

Fig.22
1: Insert both casters into the 8-rung
frame; and make sure that the casters
are properly secured;
2: Place the horizontal ledgers on the
uprights of the frame;
Fig.23
3: Insert both casters into the 8-rung
frame; and make sure that the casters
are properly secured;
4: Place the horizontal ledgers on the
uprights of the frame;
5: Place the horizontal/diagonal ledgers;
Fig.24
6: Place both diagonal ledgers;
7: Place the (temporary) platform (on the
5
th
rung from the top); slide both
blow-away protections under the rung;
