3 INSTALLATION

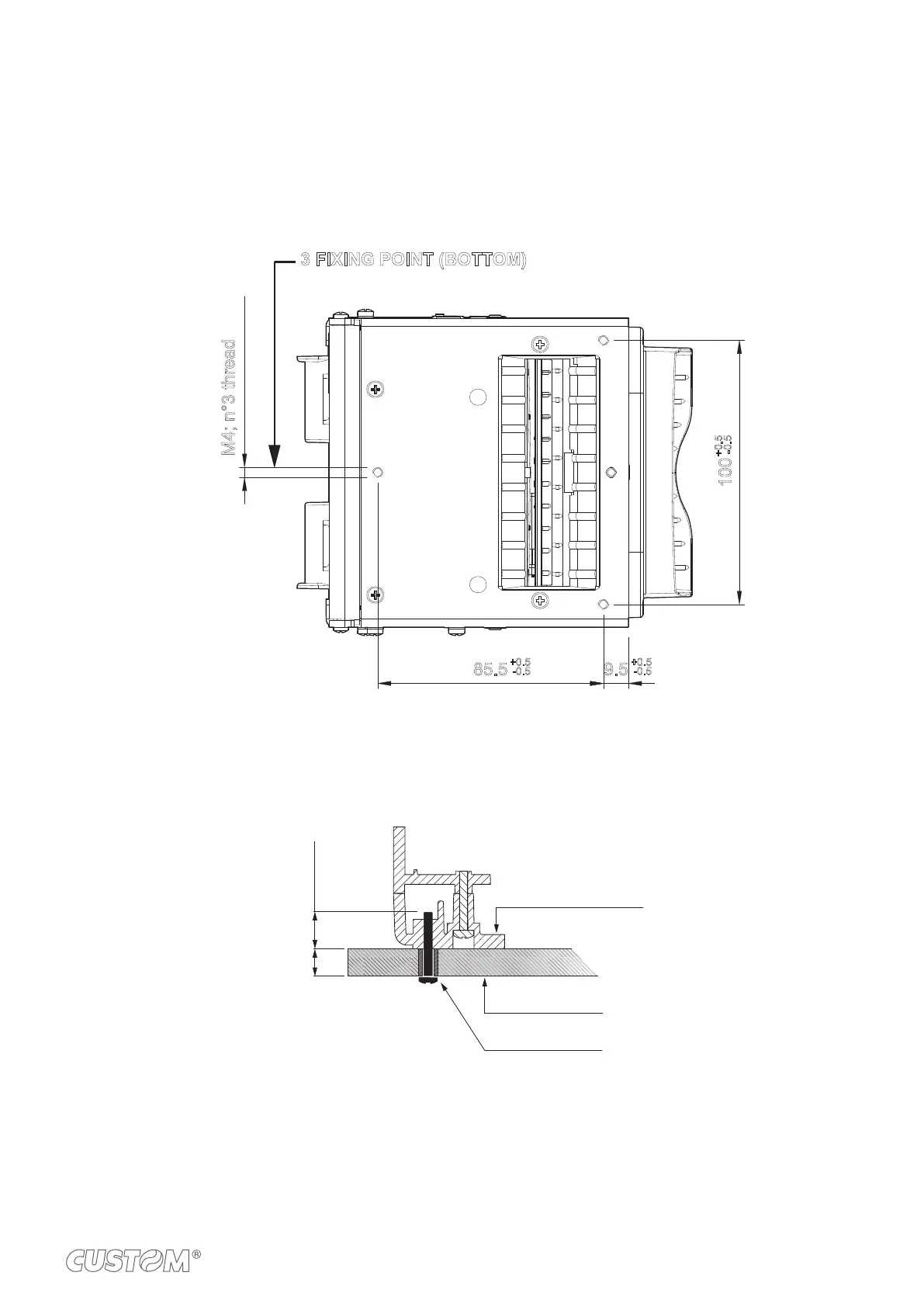

3.1 Fastening

panel, use three M4 screws.
100
85.5
+0.5
-0.5
+0.5
-0.5
+0.5
-0.5
9.5
M4; n°3 thread
3 FIXING POINT (BOTTOM)


max 8
SP
Decive chassis
Fixing panel
Fixing screw
Section E-E


For example, if panel thickness is 10mm (Sp = 10mm), the maximum length for screws will be 18mm.
19
