10.4 Printing area
In order to print ticket containing only one black mark and to not overlay printing to a black mark (that will make it useless
for the next alignment), it is important to well calibrate:
the value for the paper recovery after a cut (if present).

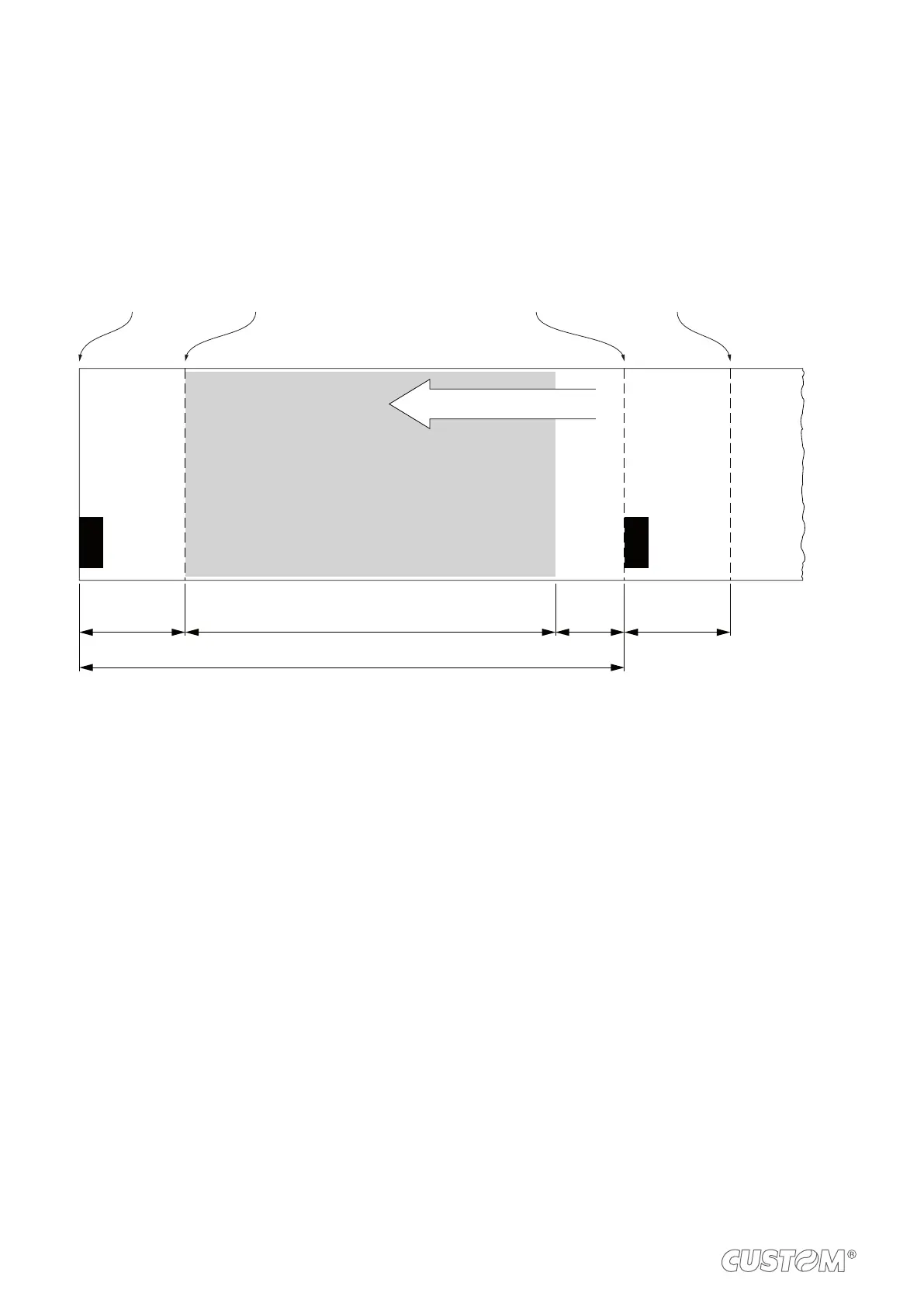

Cutting line
Printing line Cutting line Printing line
A A
L
DH
PRINTED
AREA
PRINTING DIRECTION
“Non-printable area” generated from:
“Distance between cutter/printing head” - “Value for the paper recovery after a cut”
where:
“Value for the paper recovery after a cut” = 0mm,
L Distance between an edge of the black mark and the next one, called “Inter-notch distance”.
D Automatic feed for alignment at the next black mark.
To use all the black marks on the paper, you must comply with the following equation:
The height of the printing area H can be increased to make no progress on alignment D but no further.
