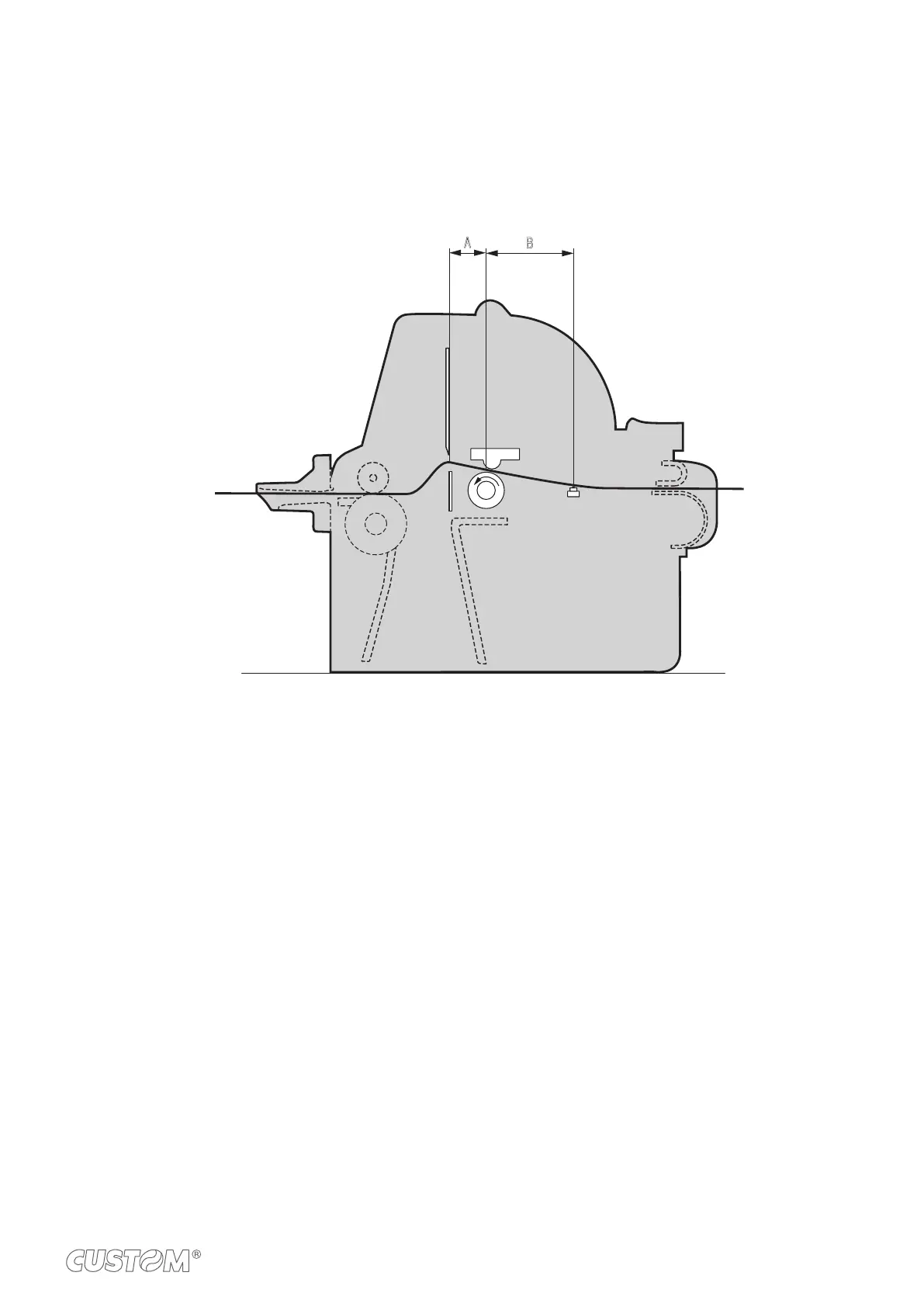

the printing head and the cutter (cutting line), where:
A = 11.9mm = distance between the cutting line and the printing line on paper
B = 28.5mm = distance between the the printing line and the mobile alignment sensors.
B
A
-
tance” parameter.
For example, to set a black mark distance of 15mm between the black mark and the alignment point, the parameters must
be set on the following values:
Notch Distance [mm x 10] : 1
Notch Distance [mm x 1] : 5
during the Setup procedure of the device (see chapter 5)
by using the 0x1D 0xE7 command (for more details, refer to the Commands Manual)
by driver.
81
