10
2422 2320 2118 191713 14 15 16129 10 116 7 81 2 3 4 5
- Critical
- Wa rning
- Normal
Link
Tx /Rx
In / ENV
USB
Out
Serial
Ente r
Select

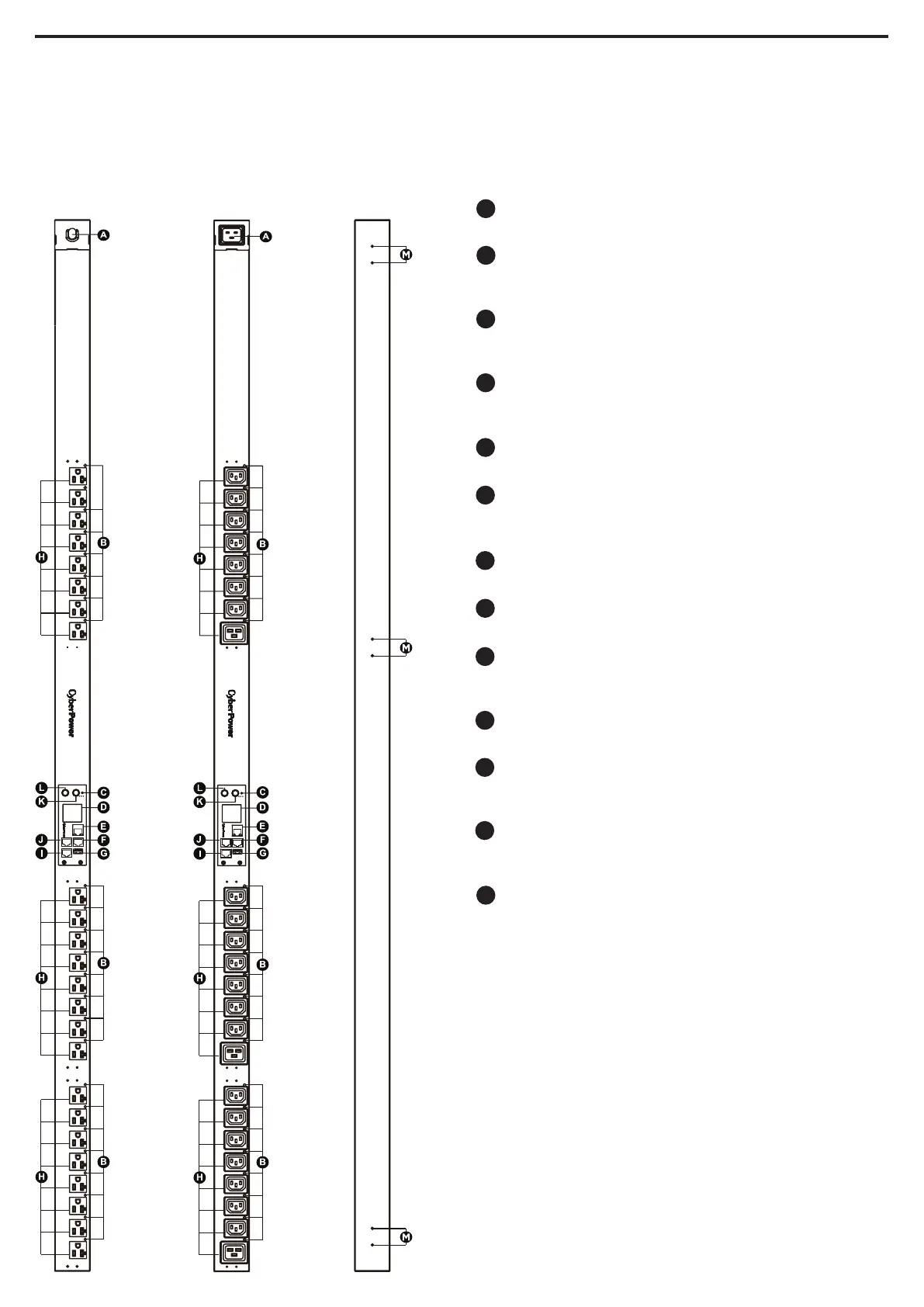

PRODUCT FEATURES - 0U 16/20A MODELS
Front Panel Description
NEMA Type IEC Type Rear Panel
(both models)
- Critical
- Wa rning
- Normal
Link
Tx/Rx
In / ENV
USB
Out
Serial
Enter
Select
1 2 3 4 5 6 7 9 10 11 12 13 14 15
16
17 18 19 20212223
24
8
AC Inlet/ AC Power Cord -
Used to connect PDU to utility power or UPS.
Outlet Indicator (switched series only) –
Indicates if the outlet is providing power to
connected equipment.
Status Indicator -
Indicates the condition of the PDU (eg. load or
environment status).
Multifunction LCD Readout -
Displays various PDU information such as power
and load condition.
Ethernet Port -
Used to connect PDU to the network.
ENVIROSENSOR/ Daisy Chain (In) Port (RJ45
modular port) -
Used for ENVIROSENSOR or chaining to previous PDU.
USB Port -
Used to upgrade the firmware via a flash drive.
AC Output Receptacles -
Provides power for connected equipment.
Serial Port (RJ45 modular port) -
Used to connect to a PC and control the PDU locally
via SSH/Telnet.
Daisy Chain (Out) Port -
Used for chaining to next PDU.
Select Button -
Used to control the LCD screen and toggle through the
available information options.
Enter Button -
Used to choose selected items, enter to next level
menu or return to previous menu.
Bracket Screw Hole –
Used to secure the mounting brackets or
mounting pegs.
A
F
L
B
G
C
H
D
I
E
K
J
M
