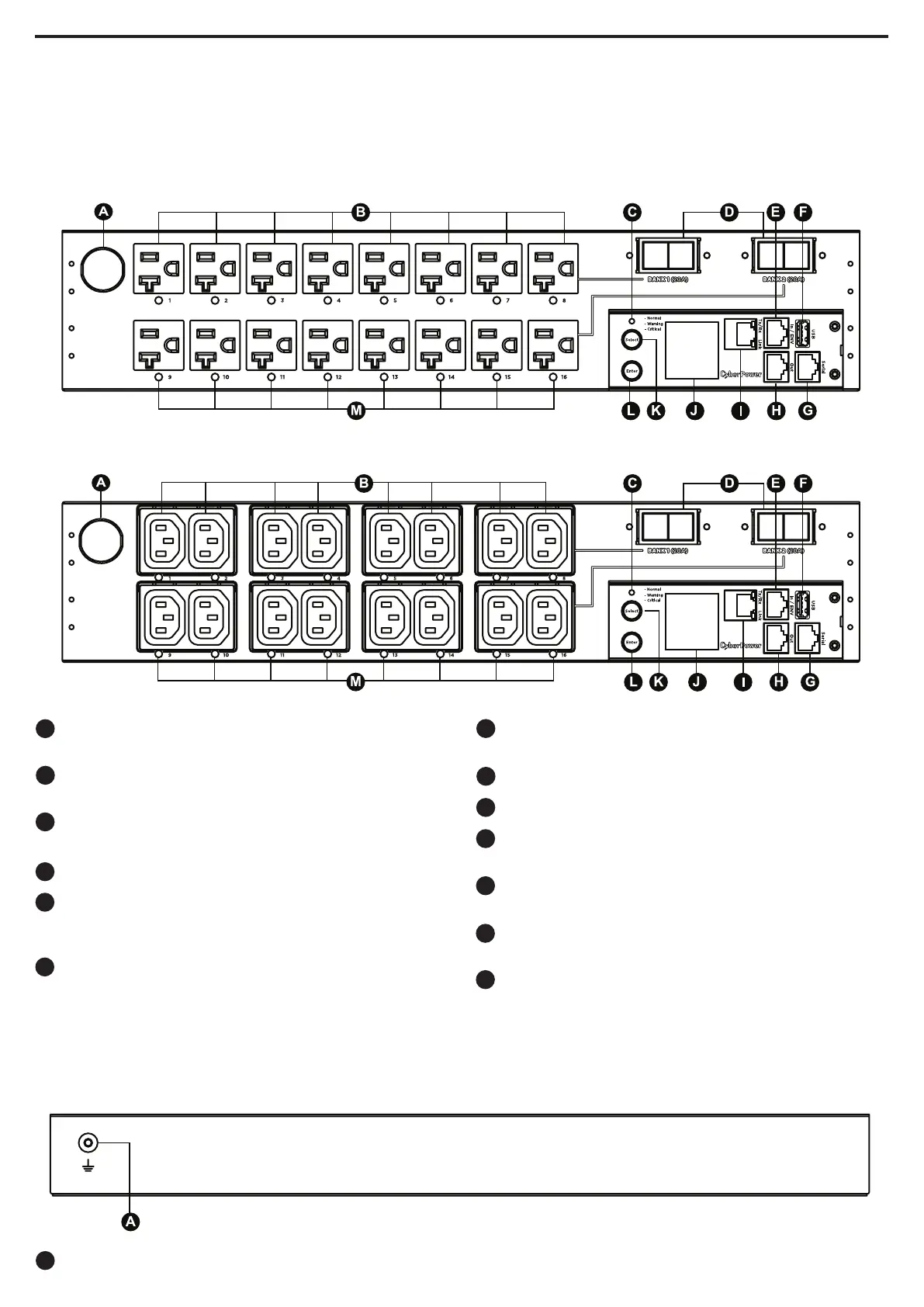

PRODUCT FEATURES - 2U MODELS
Front Panel Description
NEMA Type
IEC Type
Rear Panel Description
AC Inlet/ AC Power Cord - Used to connect PDU to
utility power or UPS.
AC Output Receptacles - Provides power for
connected equipment.
Status Indicator - Indicates the condition of the PDU
(eg. load or environment status).
Circuit Breaker - Provides overload protection.
ENVIROSENSOR/ Daisy Chain (In) Port
(RJ45 modular port) – Used for ENVIROSENSOR or
chaining to previous PDU.
USB Port - Used to upgrade the firmware via a
flash drive.
Serial Port (RJ45 modular port) - Used to connect to a
PC and control the PDU locally via SSH/Telnet.
Daisy Chain (Out) Port – Used for chaining to next PDU.
Ethernet Port – Used to connect PDU to the network.
Multifunction LCD Readout - Displays various PDU
information such as power and load condition.
Select Button - Used to the LCD screen and toggle
through the available information options.
Enter Button - Used to choose selected items, enter to
next level menu or return to previous menu.
Outlet Indicator (switched series only) – Indicates if
the outlet is providing power to connected equipment.
A
F
L
M
B
G
C
H
D
I
E
K
J
Ground Stud - Used to ground the PDU
A
