Step 1. PDU Mounting

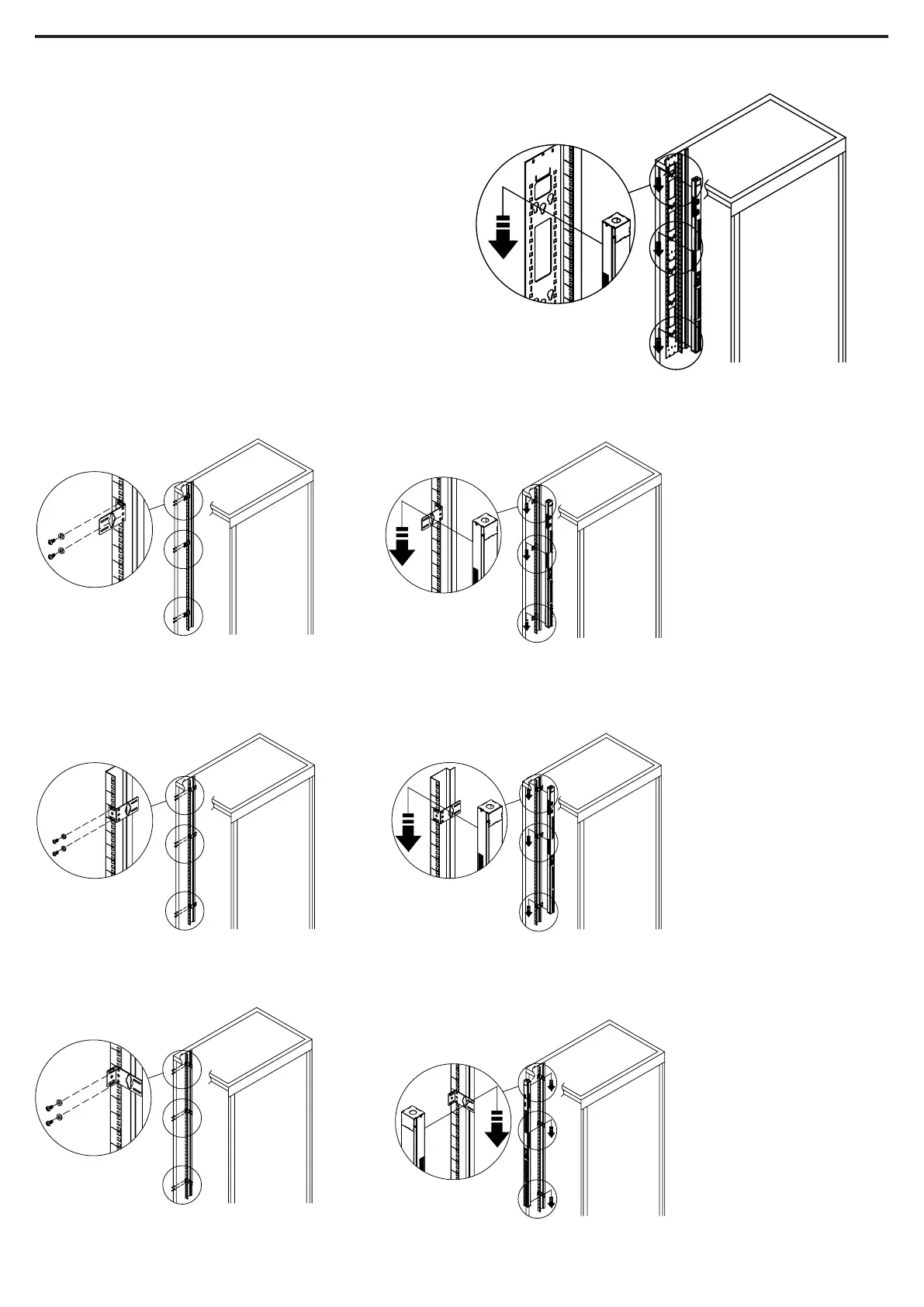

Align the Keyhole Mounts to the Keyhole Slots on the rack.
Insert and slide down to lock firmly into the place.
If there is no Keyhole Slot on your rack, please choose
from the following methods that is best for your rack
deployment to secure the PDU. Use the supplied Washers
and Rack Mounting Screws to attach the Mounting
Brackets to your existing rack system. Align the Keyhole
Mounts to the Keyhole Slots on the Mounting Brackets.
Insert and slide down to lock firmly into the place.
Method 1
INSTALLATION GUIDE
Vertical Installation - 0U Models
Method 2
Method 3
To Next Page
