12
PRODUCT FEATURES - 0U 30/32A MODELS

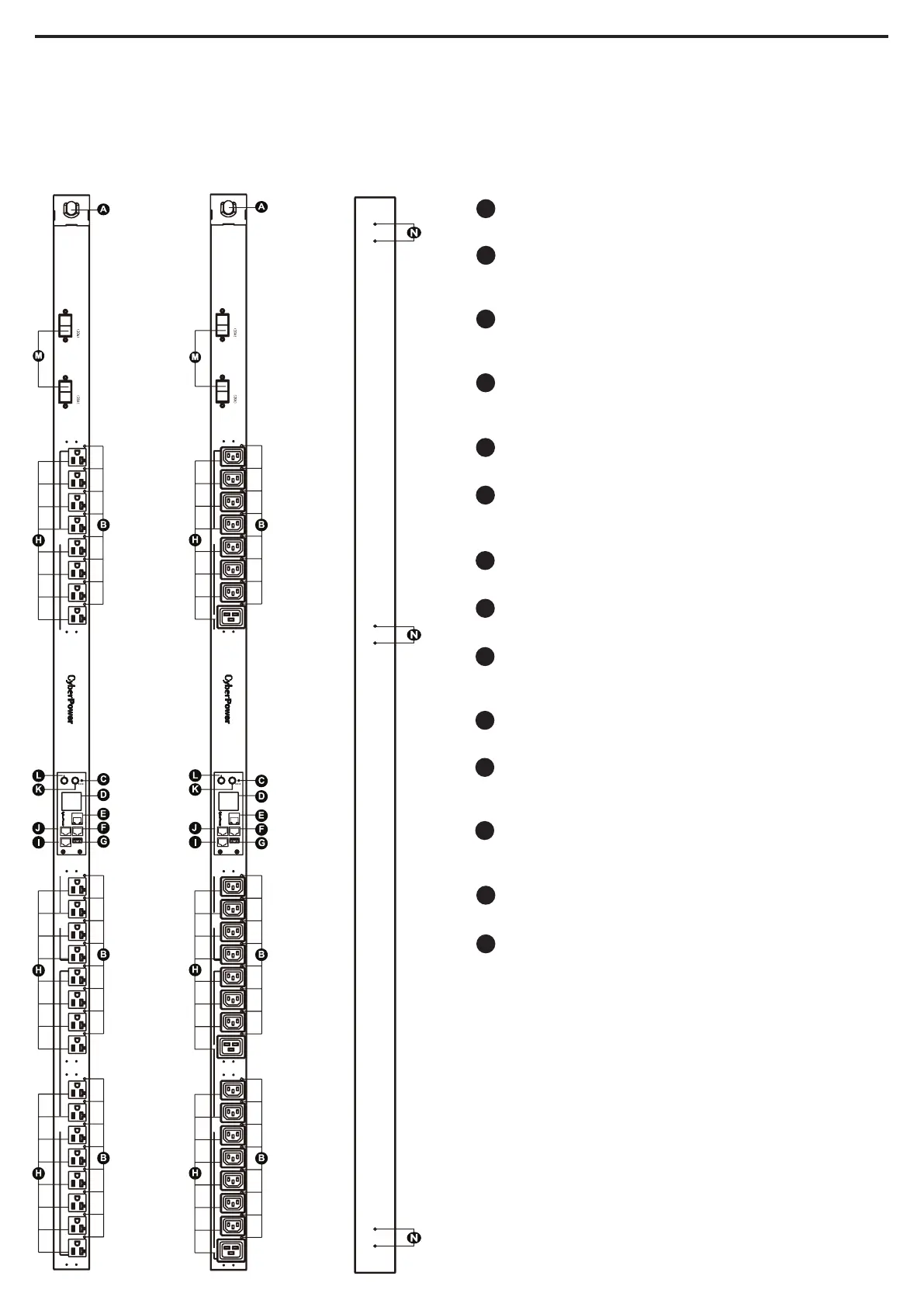

Front Panel Description
NEMA Type IEC Type Rear Panel
(both models)
AC Inlet/ AC Power Cord -
Used to connect PDU to utility power or UPS.
Outlet Indicator (switched series only) –
Indicates if the outlet is providing power to
connected equipment.
Status Indicator -
Indicates the condition of the PDU (eg. load or
environment status).
Multifunction LCD Readout -
Displays various PDU information such as power
and load condition.
Ethernet Port -
Used to connect PDU to the network.
ENVIROSENSOR/ Daisy Chain (In) Port (RJ45
modular port) -
Used for ENVIROSENSOR or chaining to previous PDU.
USB Port -
Used to upgrade the firmware via a flash drive.
AC Output Receptacles -
Provides power for connected equipment.
Serial Port (RJ45 modular port) -
Used to connect to a PC and control the PDU locally
via SSH/Telnet.
Daisy Chain (Out) Port -
Used for chaining to next PDU.
Select Button -
Used to control the LCD screen and toggle through the
available information options.
Enter Button -
Used to choose selected items, enter to next level
menu or return to previous menu.
Circuit Breaker -
Provides overload protection.
Bracket Screw Hole –
Used to secure the mounting brackets or
mounting pegs.
A
F
L
B
G
C
H
D
I
E
K
J
M
N
2422 2320 2118 19
BANK 2
1713 14 15 16129101167812345
BANK 1
BANK 2
BANK 1
- Critical
- Warning
- Normal
Link
Tx/Rx
In / ENV
USB
Out
Serial
Enter
Select
BANK 1
BANK 2BANK 1
- Critical
- Warning
- Normal
Link
Tx/Rx
In / ENV
USB
Out
Serial
Enter
Select
1234
BANK 1
567
8
9101112131415
16
17 18
BANK 2
19 20 21 22 23
24
BANK 1
