Cybex Free Weight Owner’s Manual
Assembly
Page 5-13
8. Attach bottom support bar (see steps 8A and 8B and Figure 12).
Position bottom support bar (#13) between right and left side attachments (#19 and #20).
Secure bottom support bar (#13) to right and left side attachments (#19 and #20) using two
lockwashers .50 (#18), two hex nuts .50-13 (#15), two SHCS .50-13 x 1.00 (#16) and two plastic
inserts 1.19 Dia. (#6). See Figure 12.
A.
B.
9. General anchoring guidelines (see steps 9A and 9B).
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional
contractor.
Use fasteners having a minimum of 500 lbs tensile capacity (3/8” grade 2 bolt or better).
If all legs/frames do not contact surface, DO NOT pull down with anchors. Shim any leg or
frame (with fl at washers) not in contact with surface.
A.
B.

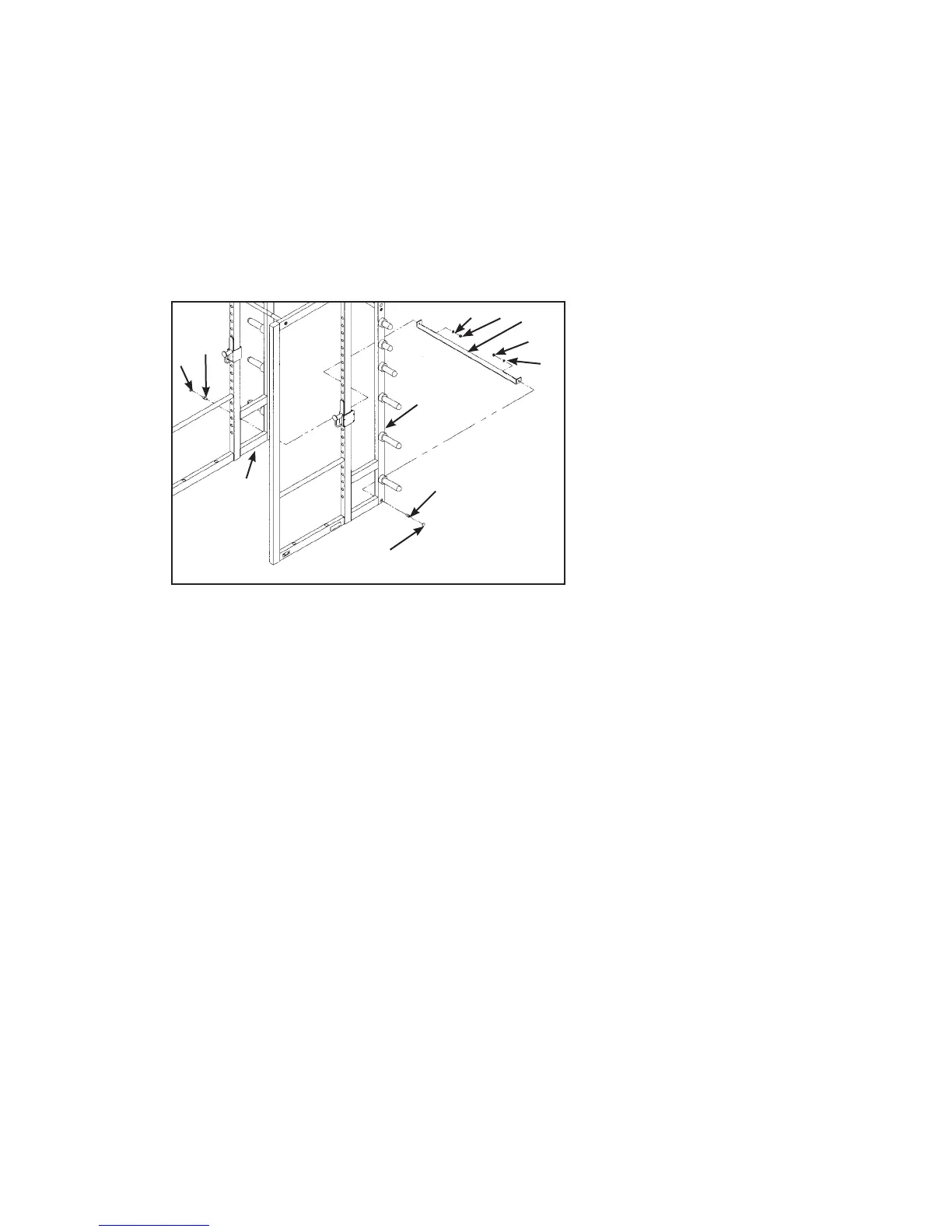

Figure 12
13
18
6
16
18
15
6
16
15
20
19
