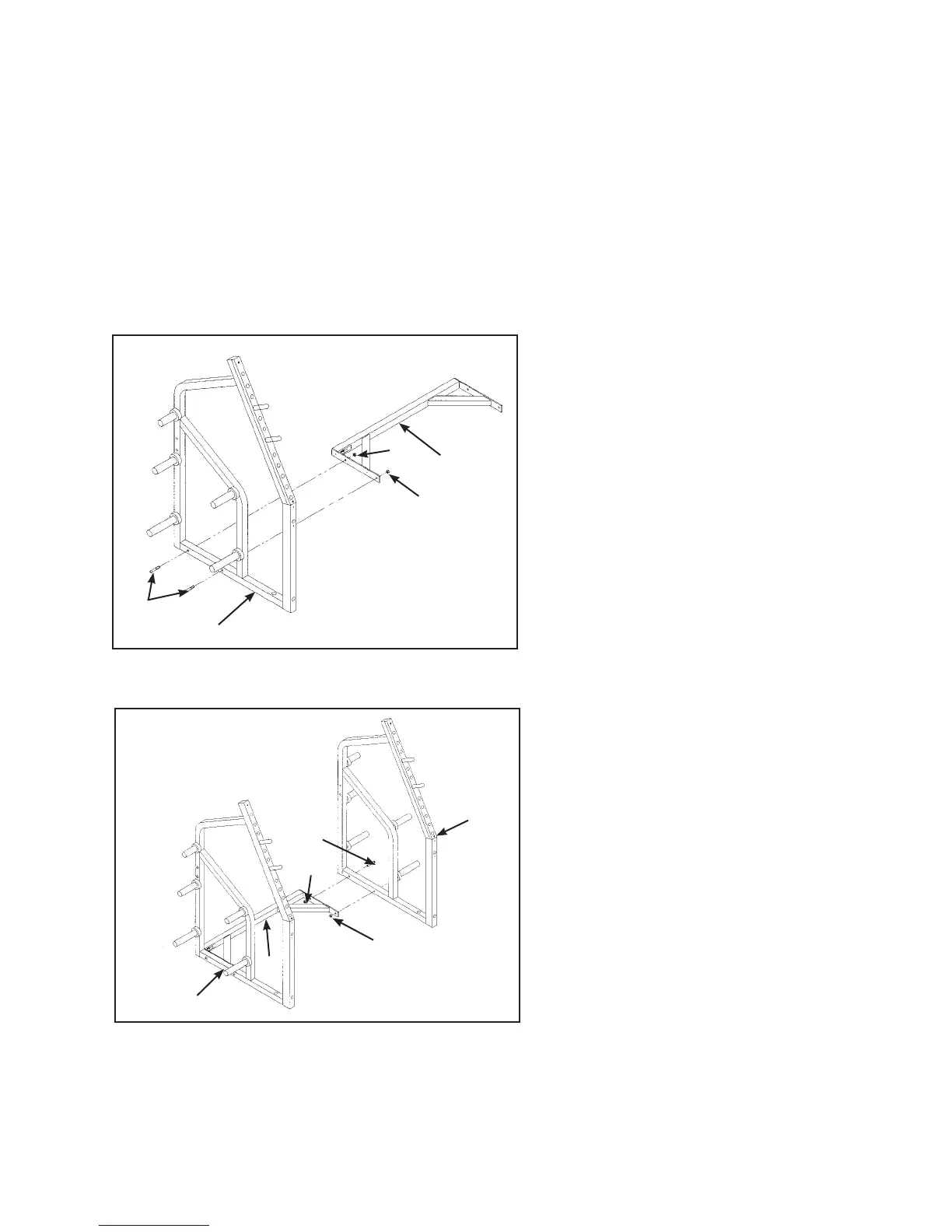

4. Install lower brace (see steps 4A - 4D and Figures 3 and 4).
Locate one lower brace (#4), 4 SHCS .50-13 x 3.00 (#7) and 4 locknuts .50-13 (#9).
Position lower brace (#4) to left (#1) or right side assembly (#2).
Using two SHCS .50-13 x 3.00 (#7) and two locknuts .50-13 (#9) attach one side of lower brace
(#4) to one of the sides (#1 or #2) as shown in Figure 3. Do not tighten hardware at this time.
Repeat Steps 4B and 4C to attach other side. See Figure 4. Do not tighten hardware at this time.
A.
B.
C.
D.
1
Figure 3
4
9
9
7
1
Figure 4
9
4
9
7
2
