CYBEX Free Weight User Manual

Assembly
Page 5-20
Cybex Free Weight Owner’s Manual

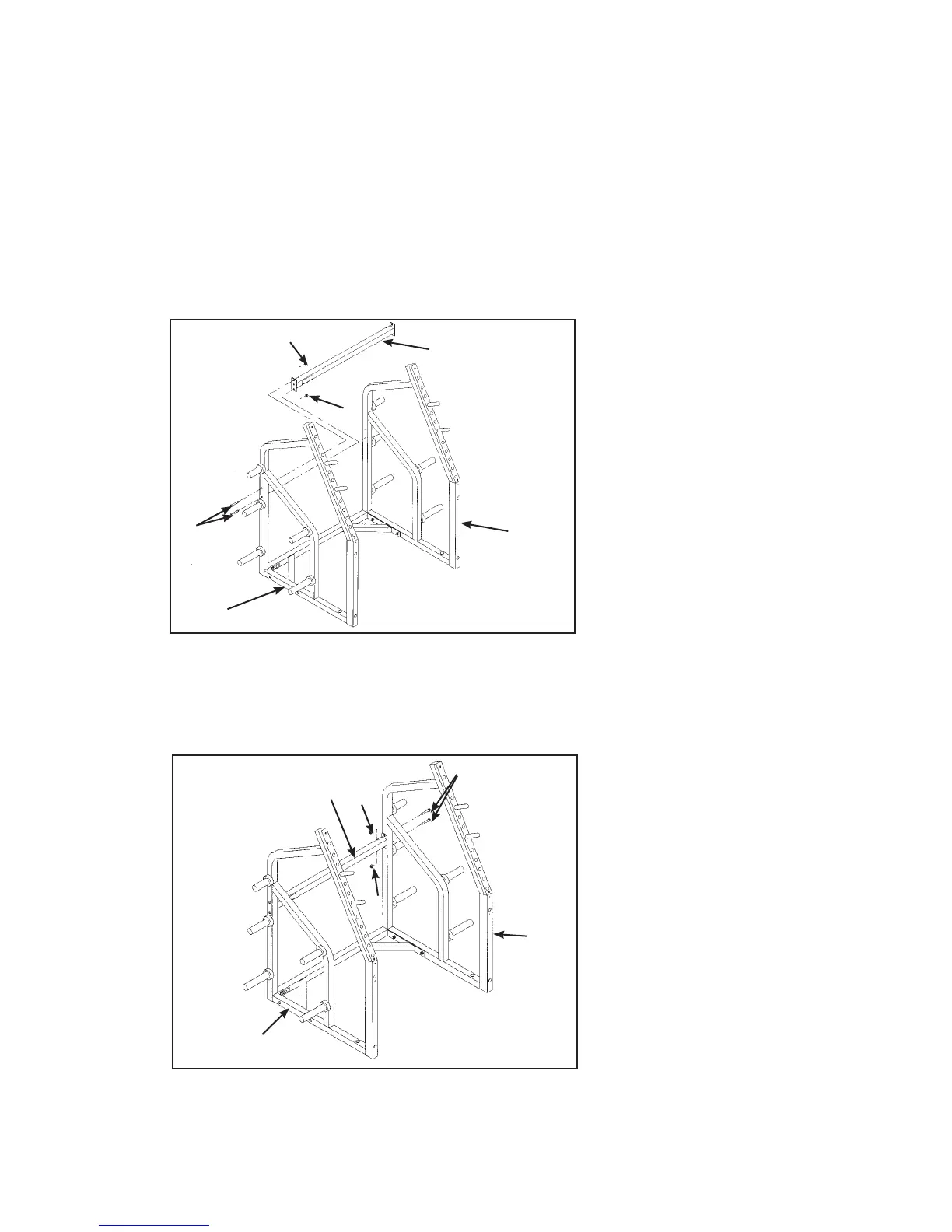

5. Install upper brace (see steps 5A - 5D and Figures 5 and 6).
Locate one upper brace (#5), four SHCS .50-13 x 3.00 (#7) and four locknuts .50-13 (#9).
Position upper brace (#5) to left (#1) or right side assembly (#2).
Attach one side of upper brace (#5) to one of the sides (#1 or #2) as shown in Figure 5 using two
SHCS .50-13 x 3.00 (#7) and two locknuts .50-13 (#9). Do not tighten hardware at this time.
A.
B.
C.
1
Figure 5
5
9
9
7
1
Figure 6
9
4
9
7
2
2
Repeat Steps 5B and 5C to attach other side. See Figure 6. Securely tighten all hardware at
this time.
D.

CYBEX Free Weight Specifications

General

Brand	CYBEX
Model	Free Weight
Category	Fitness Equipment
Language	English
