Cybex Free Weight Owner’s Manual
Assembly
Page 5-21
NOTE: When upgrading an existing Squat Rack (5570) to include the Adjustable Stop (5572) remove
items 11 - 15. See Figure 7.
15

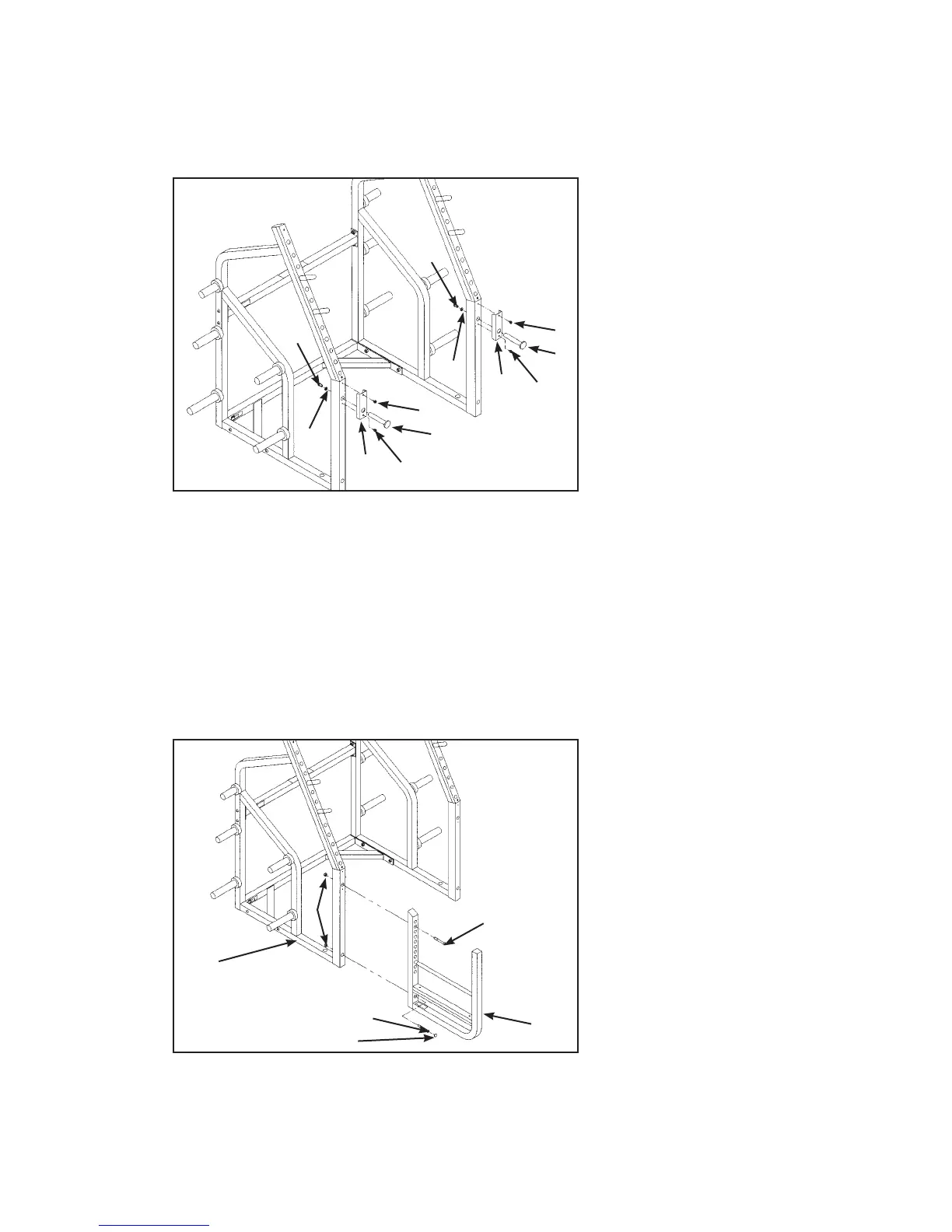

Figure 7
13
14
11
12
11
13
11
12
11
14
15
6. Install bar stop to squat rack (see steps 6A - 6C and Figures 5 and 6).
Locate two bar stops (#6), two hole plugs (#24), four SHCS .50-13 x 4.00 (#8) and four locknuts
.50-13 (#9).
Attach one bar stop (#6) to left or right hand side assembly (#1 or #2) using two SHCS .50-13 x
4.00 (#8), one hole plug (#24) and two locknuts .50-13 (#9). See Figure 9.
A.
B.
Figure 9
1
6
8
24
8
9
