Cybex 425T Treadmill Owner’s Manual
Exploded
Views
Page D-2
ITEM QTY. PART NO. DESCRIPTION
2 1 AL-18596 Front Roller, 2.75 O.D.
3 1 AL-18597 Rear Roller, 2.75 O.D.
8 1 AX-18729 Assembly, Idler
11 1 BD-18763 Belt, Running
12 1 BD-18917 Belt, Poly-V,320J8
17 1 DK-18401 Deck, Running
18 1 KAX-21507 Sensor, Speed
26 2 HB-16367 Bushing, .50 I.D. x .62 O.D. x .31 LG, Flanged
27 2 HN-10029 Nut, 1/2 - 13 HEX STL ZINC
30 2 HS-00261 Bolt, 1/2 - 13 x 5.5, HXHD
33 10 HS-16628 Bolt, 1/4 - 20 x 1.5, HXHD, G8
34 6 HS-16929 Bolt, Whiz Lock, 3/8 - 16 x .625, HXHD, G5
40 2 HS-41107 Bolt, 5/16 - 18 x 1.5, BTHD, SST, BLK
41 2 HW-00165 Washer, Split Lock, 5/16, ZINC
42 8 HW-00180 Washer, Split Lock, 1/4, SST, BLK
43 2 HW-00590 Bushing, Nylon, 1/2
44 12 HW-18123 Washer, .344 I.D. x .75 O.D. x .125 Thick, Black Zinc
45 2 HX-13771 Ring, Retaining, 5/8 x .579 FR. I.D.
46 2 HX-19981 Bushing, Deck, 5/16 - 18
49 1 HX-19529 E-Ring, Retaining, 5555-37
51 1 HX-19052 Idler Spring
220 1 FM-19513 Shaft, Deck Pivot
221 2 AX-20035 Assembly, Deck Pivot Bracket
222 2 HB-18768 Bearing, IGUS LF-1011-12
223 2 HS-19108 Bolt, 5/16-18X3-4LG,HxHd,Whiz
44
40
41
42
33
33
42
17
11
46
34
18
51
8
49
46
3
30
26
27
43
45
223
45
221
12
2
34
222
220

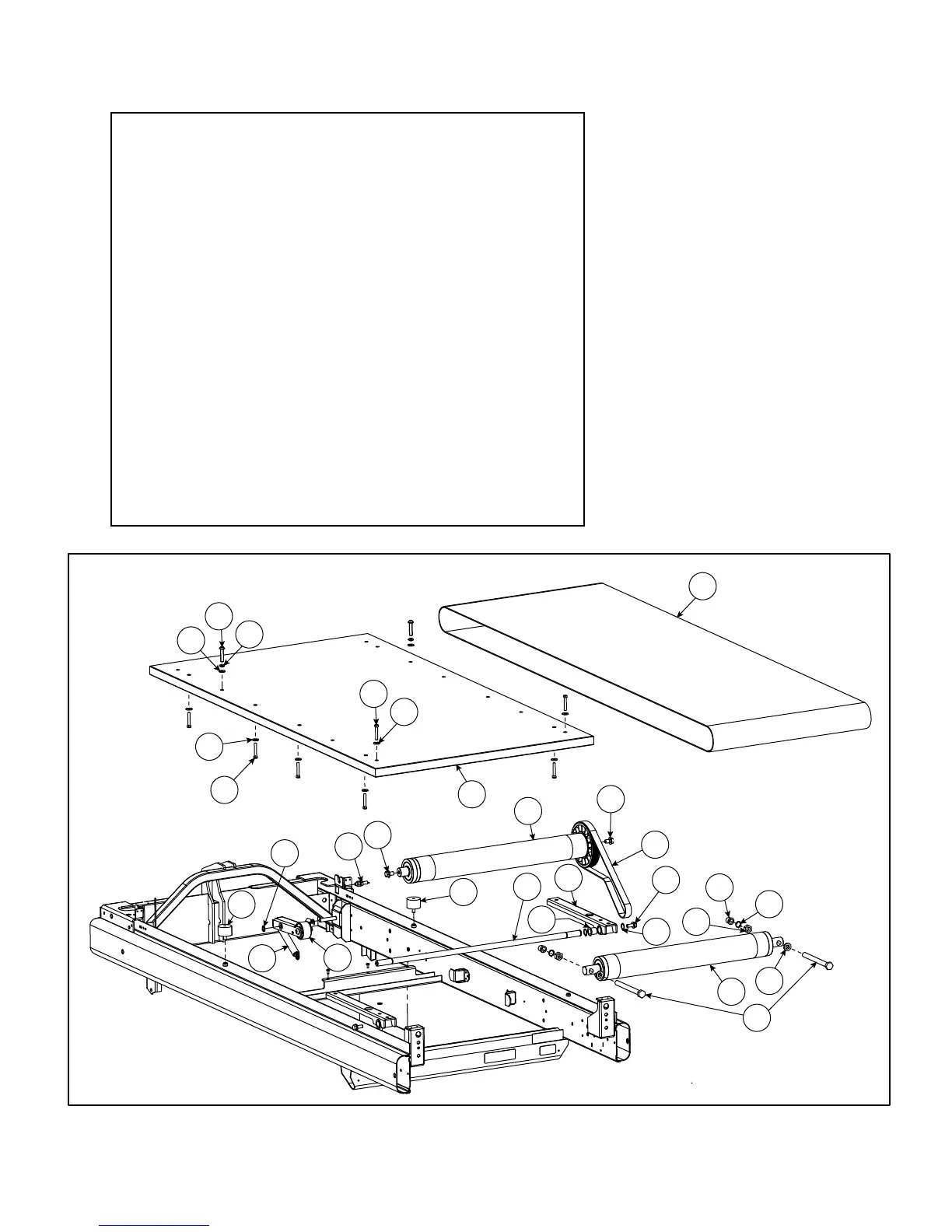

425T Belt, Deck and Rollers
