Cybex 425T Treadmill Owner’s Manual
Assembly
and Setup
2-6
7. Install the console back to the upright assembly.
Locate the console back (#4) and twelve screws, 8-32 x .38” (#13).A.
Place the console back (#4) in the correct position on the upright assembly (#3). See Figure 5.B.

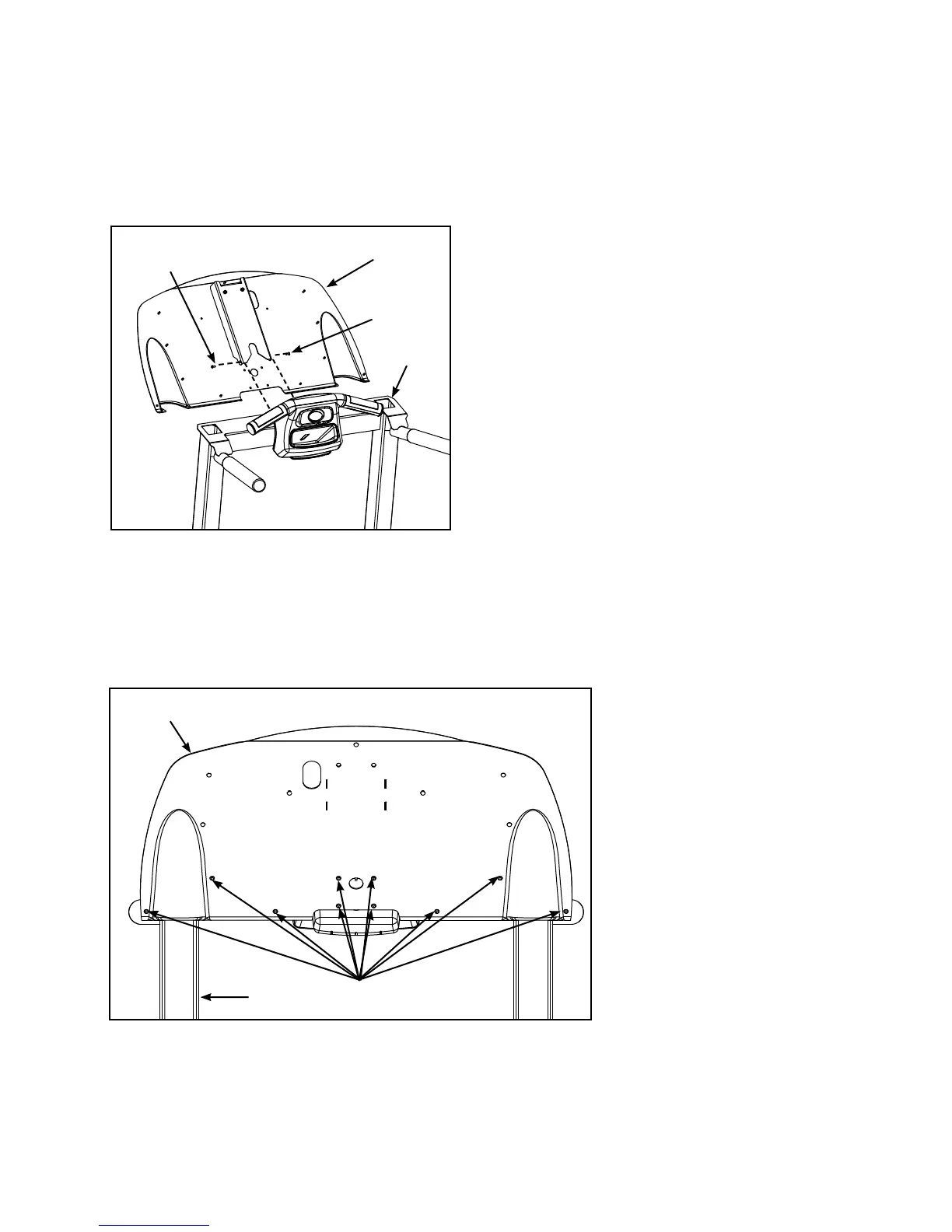

Figure 5
#4
#13
#3
#13
#4
#13
#3
Figure 6
C. Using a Philips head screwdriver install two screws 8-32 x .38” (#13) to hold the console back
(#4) in place. Do not fully tighten at this time. See Figure 5.
D. Using a Philips head screwdriver secure the console back (#4) to the upright assembly (#3) using
ten screws 8-32 x .38” (#13). Fully tighten the two screws installed in step 7C. See Figure 6.
To Next Page
