CYBEX LCX-425T User Manual

Cybex 425T Treadmill Owner’s Manual
Exploded
Views
Page D-1

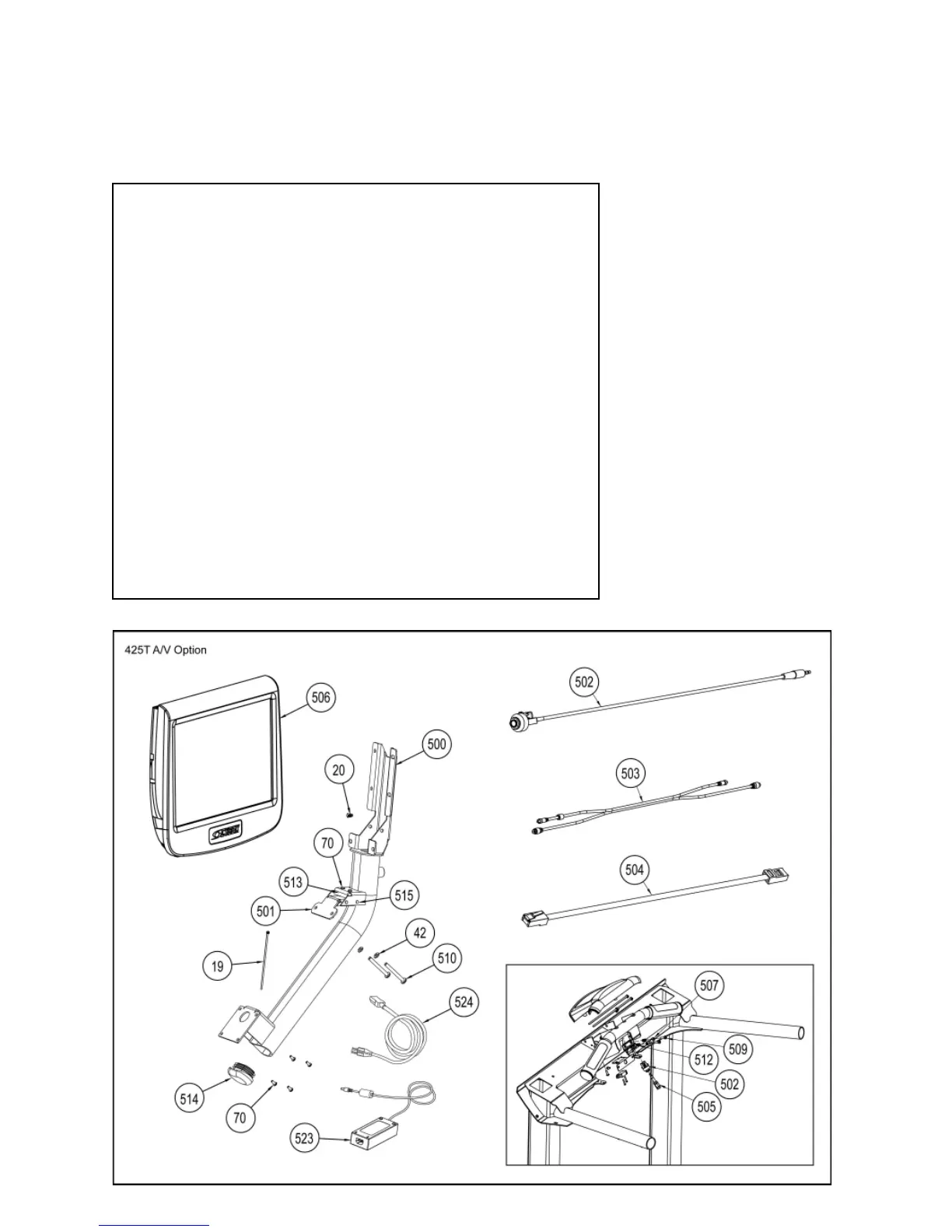

Appendix D – Exploded Views
ITEM QTY. PART NO. DESCRIPTION
19 2 EH-00986 Wire Tie, 9”
20 2 EH-10291 Base, Wire Tie
42 2 HW-00180 Washer, Split Lock, 1/4, SST, BLK
70 4 HS-11977 Screw, SEMS, 8/32 x .38, PNHD
500 1 AF-19876 Bracket,Upper mount
501 1 AF-21142 Weldment,PEM Mount,2nd Gen
502 1 AW-17694 Cable,Audio 1/”4 in to 3.5mm,18 in
503 1 AW-21680 Cable,Locking RF & DC Power Cable,2795mm
504 1 AW-20111 Cable,5E Bonded pair RJ45 Round
505 1 CN-17687 Adapter,1/4” Plug to 1/8” Jack
506 1 CP-21072 Monitor,13.3” ATSC NTSC PEM
506 1 CP-21073 Monitor,13.3” DVB-T SECAM PAL PEM
507 1 FS-17698 Clamp, Headphone adapter
509 2 HS-16939 Screw SEMS,10-32X.75,PNHD,BLK ZN,EXT
510 2 HS-19369 Screw 1/4-20 x 2.25”,PNHD PHIL,BLK ZN
512 2 HX-12244 Spring compression brush
513 2 HX-19976 Bushing,Stud plate,8-32,6lb Max shear,18LB Max comp.
514 1 HX-20032 Insert, domed plastic
515 4 HX-20220 Plug, hole .187” DIA,Black
523 1 TR-21265 Power supply,12VDC,120-240VAC,6.0A W-Locking plug
524 1 AW-14007 Power cord,115V,60HZ PWR SUPPLY IEC320 (SJT
524 1 WR-14012 Power cord,230V,10A,CEE 7-7,2M
524 1 AW-20192 Power cord,100V,50HZ,2.5M IEC-320,Japan
524 1 AW-20193 Power cord,250VAC 10A,2.5M IEC-320,UK
524 1 AW-22229 Power cord,10A,250V IEC 60320 Molded, Danish

CYBEX LCX-425T Specifications

General

Brand	CYBEX
Model	LCX-425T
Category	Treadmill
Language	English

Summary

1 - Safety

Important Voltage Information

Grounding Instructions

Importance of grounding for electrical safety and proper connection.

General Safety Precautions

Guidelines for safe operation, user conduct, and facility setup.

Caution Decals and E-Stop Key

Explains caution decals and the emergency stop key function.

2 - Assembly and Setup

Site Selection and Preparation

Guidelines for selecting and preparing a suitable location for the treadmill.

Electrical Power Requirements

Treadmill Assembly Process

Step-by-step instructions for assembling the Cybex 425T treadmill.

Testing Treadmill Operation

Procedures to test the treadmill's speed, incline, and belt functions.

3 - Operation

Quick Operation Guide

A concise overview of how to operate the treadmill for immediate use.

Detailed Operation Guide

Comprehensive instructions for operating the Cybex 425T treadmill.

Stopping the Treadmill

Procedures for safely stopping the treadmill during and after use.

Using Workout Programs

Overview of available workout programs and how to select them.

4 - Preventive Maintenance

Maintenance Safety and Warnings

Safety warnings and precautions for performing maintenance activities.

Regular Maintenance Procedures

Running Belt and Deck Care

Service Schedule and Intervals

5 - Customer Service

Appendix A - Technical Specifications

Treadmill Specifications

Appendix B - Program Overview
