CYBEX LCX-425T User Manual

Cybex 425T Treadmill Owner’s Manual
Exploded
Views
Page D-4
ITEM QTY. PART NO. DESCRIPTION
38 4 HS-19108 Screw 5/16-18 x 3/4, HXHD, Whiz-Lock
70 8 HS-11977 Screw, SEMS, 8/32 x .38, PNHD
78 1 AF-18481 Weldment, Motor Base
79 1 AF-18769 Bracket, Heat Sink
80 2 HB-18768 Bearing, LF-1011-12
81 1 AD-18213 PCA, Control Board,115 VAC
81 1 AD-18217 PCA, Control Board, 230 VAC
82 2 EC-18538 Circuit Breaker, 15 Amp, 115 VAC
82 2 EC-18539 Circuit Breaker, 10 Amp, 250 VAC
83 1 EC-18896 Filter, 16 Amp
84 4 HN-11136 KEPS, 5/16 - 18, HEX STL ZINC
86 8 EH-00986 Wire Tie, Nylon, 9
87 2 HN-11925 KEPS, 10-32, HEX STL ZN
88 1 HW-10856 Washer, Lock External, No. 10 ZC
89 2 HS-15732 Screw, SEMS, 8-32 UNC x .62, PNHD PHIL, ZN
90 1 EH-12260 Wire Tie, Nylon, 18
91 1 FS-19355 Plate, Circuit Breaker Mount
92 1 DE-16928 Label, Disconnect Power, Multilingual
93 1 DE-19238 Decal, Warning, Motor Plate
103 1 MR-19643 Motor, Drive, 115 VAC
103 1 AX-19650 Motor, Drive, 230 VAC
120 1 EH-19416 Heat Sink, Silpad
121 1 EC-15004 Ferrite, Clamp-on, .40 I.D.
103
90

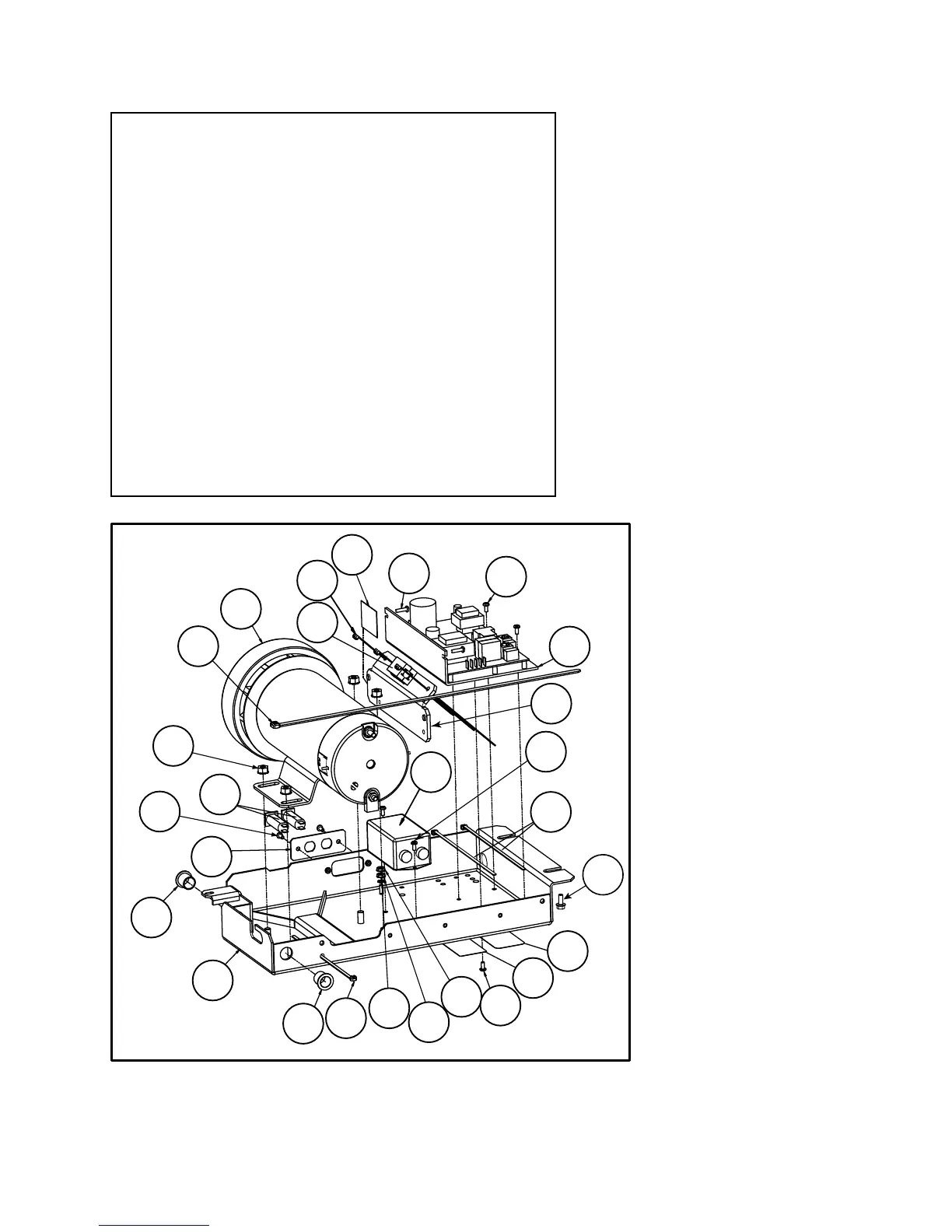

425T Drive Motor Assembly
120
86
121
89
70
81
82
91
80
78
80
86
88
87
87
70
92
93
79
83
86
84
70
70
38
