11. Attach the motor cover (three pieces).
A. Using a Phillips head screwdriver, partially tighten each motor cover side
(left and right) with four 10-32 x .75 Phillips head screws. See Figure 12.
B. Place the motor cover center into position. See Figure 12.
C. Using a Phillips head screwdriver, finish tightening all eight screws. Be
sure the screws are catching the motor cover’s holes.
12. Level your treadmill.
A. Confirm that your treadmill is on a level surface.
13. Attach emergency stop key.
A. Confirm that the emergency stop key is in place over the e-stop button.
See Figure 13. NOTE: The treadmill will not run without the key (or other
metal) in place.
14. Visually inspect the treadmill.
A. Carefully examine the treadmill to ensure that the assembly is correct
and complete.
Cybex Pro Treadmill Owner’s & Service Manual
Page 5-9
Table of Contents . . . . . . . . . . . iii
1 Safety
Important Voltage Information . 1-1
Grounding Instructions . . . . . . . 1-1
Important Safety Instructions . . 1-2
Warning Decals. . . . . . . . . . . . . 1-4
Caution Decals . . . . . . . . . . . . . 1-7
Emergency Stop Key (e-stop). . 1-8
2 Technical Specifications
Specifications . . . . . . . . . . . . . . 2-1
3 Operation
Terms & Symbols Used . . . . . . 3-1
Quick Operation Guide . . . . . . 3-2
Detailed Operation Guide . . . . 3-2
Stopping the Treadmill . . . . . . . 3-4
Immobilization Method . . . . . 3-4
Emergency Dismount . . . . . . 3-4
Emergency Stop . . . . . . . . . . . . 3-4
Safety Sentry . . . . . . . . . . . . . . 3-4
Control During Operation . . . . . 3-5
Data Readouts . . . . . . . . . . . . . 3-6
Displaying Heart Rate . . . . . . . . 3-6
Heart Rate LED. . . . . . . . . . . . . 3-7
Use of Programs. . . . . . . . . . . . 3-8
Manual Mode . . . . . . . . . . . . . . 3-9
The Workout Profile . . . . . . . . . 3-9
Meaning of % Grade . . . . . . . . 3-9
Calorie Goal . . . . . . . . . . . . . . 3-10
5K Run . . . . . . . . . . . . . . . . . . 3-12
9 Holes . . . . . . . . . . . . . . . . . . 3-14
Heart Rate. . . . . . . . . . . . . . . . 3-16
Custom Program 1 . . . . . . . . . 3-18
Custom Program 2 . . . . . . . . . 3-20
Create a Custom Program . . . 3-22
4 Preventive Maintenance
Regular Maintenance Activities 4-1
Cleaning Your Treadmill . . . . . . 4-1
Running Belt Maintenance . . . . 4-2
Other Preventive Maintenance . . 4-
Log Sheet . . . . . . . . . . . . . . . . . 4-8
5 Setup & Assembly
Warnings/Cautions . . . . . . . . . 5-1
Choosing & Preparing a Site . . 5-1
Electrical Power Requirements 5-2
Assembling the Treadmill . . . . . 5-2
Testing the Treadmill Operation 5-11
Setting Operation Options . . . 5-12

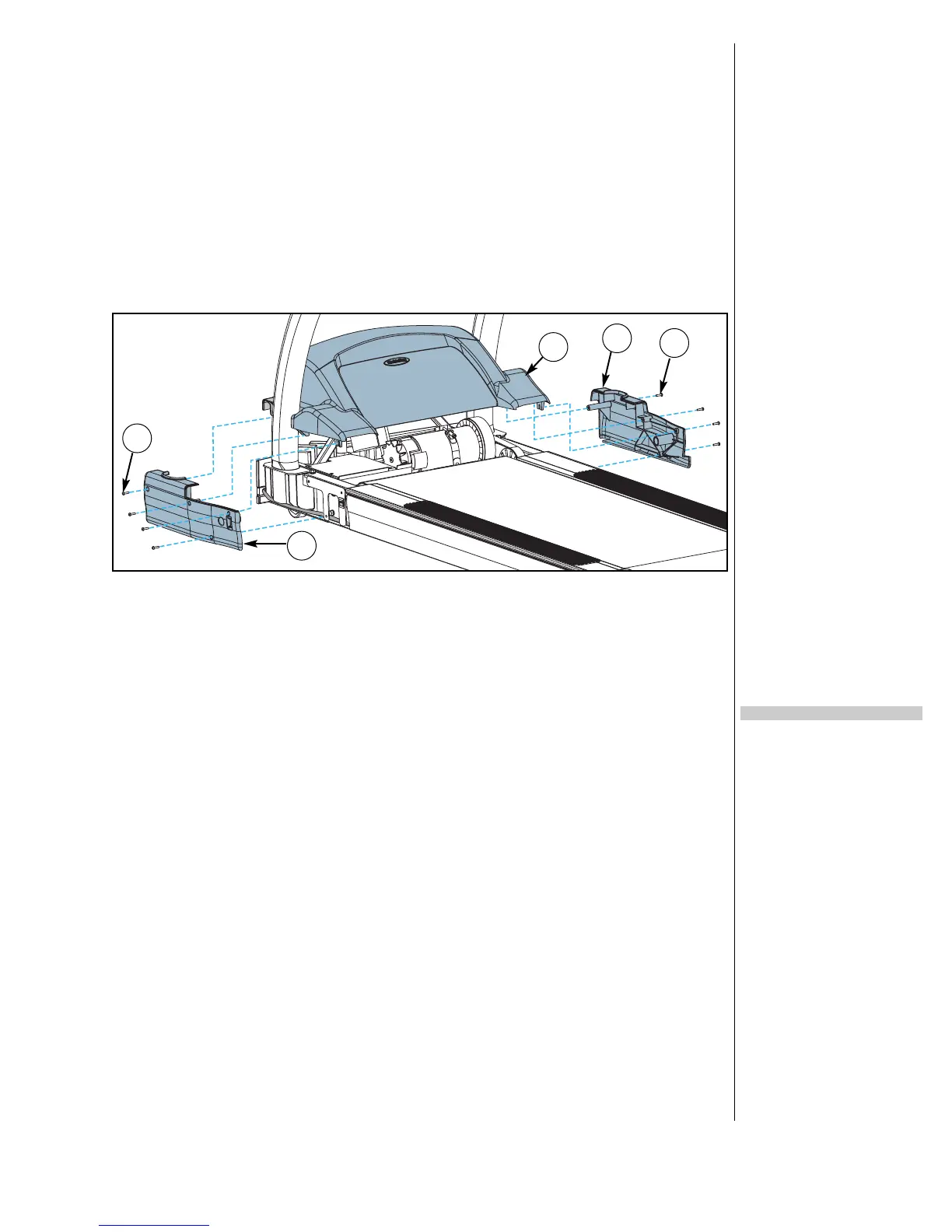

Figure 12
