9. Remove the running deck and running belt.
A. If rotating or flipping the deck, make a note on the deck so you know
which way it was positioned.
B. Lift one side of the deck and slide it out of the running belt.
C. Tilt up the left side of the front roller and slip the running belt off.
10. Inspect the rubber mounts.
A. Using a Phillips head screwdriver, remove the screw securing each deck
stiffener. See Figure 7.
B. Inspect the rubber mounts under the deck stiffeners for cracks or wear.
NOTE: Unscrew and replace the rubber mounts if the rubber is cracked
or worn.
C. Using a Phillips head screwdriver, secure each deck stiffener with
screws removed from step 10A.
Drive Belt
NOTE: If you are replacing the drive belt follow steps 11-12 and 14. If not, skip
to step 13. See the Drive Motor procedure for an alternative way to
change the drive belt.
11. Release the drive belt tension.
A. Using a 1/2” socket wrench, loosen
but do not remove the two screws
on the motor saddle. See Figure 9.
12. Remove the drive belt.
A. If you are changing the drive belt,
slip the drive belt around the drive
pulley and off the motor. See
Figure 9.
B. Slide the new drive belt around the
drive pulley. NOTE: There will be
some slack in the drive belt until
step 14 is complete.
13. Secure the front roller.
A. Slide the front roller into the running
belt. NOTE: It doesn’t matter which
way the running belt goes.
Cybex Pro Treadmill Owner’s & Service Manual
Page 7-11
Table of Contents . . . . . . . . . . . iii
Important Safety Instructions . . 1-2
Warning Decals. . . . . . . . . . . . . 1-4
Caution Decals . . . . . . . . . . . . . 1-7
Emergency Stop Key (e-stop). . 1-8
2 Technical Specifications
Specifications . . . . . . . . . . . . . . 2-1
3 Operation
Terms & Symbols Used . . . . . . 3-1
Quick Operation Guide . . . . . . 3-2
Detailed Operation Guide . . . . 3-2
Stopping the Treadmill . . . . . . . 3-4
Immobilization Method . . . . . 3-4
Emergency Dismount . . . . . . 3-4
Emergency Stop . . . . . . . . . . . . 3-4
Safety Sentry . . . . . . . . . . . . . . 3-4
Control During Operation . . . . . 3-5
Data Readouts . . . . . . . . . . . . . 3-6
Displaying Heart Rate . . . . . . . . 3-6
Heart Rate LED. . . . . . . . . . . . . 3-7
Use of Programs. . . . . . . . . . . . 3-8
Manual Mode . . . . . . . . . . . . . . 3-9
The Workout Profile . . . . . . . . . 3-9
Meaning of % Grade . . . . . . . . 3-9
Calorie Goal . . . . . . . . . . . . . . 3-10
5K Run . . . . . . . . . . . . . . . . . . 3-12
9 Holes . . . . . . . . . . . . . . . . . . 3-14
Heart Rate. . . . . . . . . . . . . . . . 3-16
Custom Program 1 . . . . . . . . . 3-18
Custom Program 2 . . . . . . . . . 3-20
Create a Custom Program . . . 3-22
4 Preventive Maintenance
Regular Maintenance Activities 4-1
Cleaning Your Treadmill . . . . . . 4-1
Running Belt Maintenance . . . . 4-2
Other Preventive Maintenance . 4-6
Service Schedule . . . . . . . . . . . 4-7
Log Sheet . . . . . . . . . . . . . . . . . 4-8
5 Removal & Replacement
Quick Setup . . . . . . . . . . . . . . . 5-1
Choosing & Preparing a Site . . 5-1
Electrical Power Requirements 5-2
Assembling the Treadmill . . . . . 5-2
Tools Required . . . . . . . . . . . . . 5-2
Testing the Treadmill Operation 5-11
Setting Operation Options . . . 5-12
6 Customer Service
7 Service
Warnings/Cautions . . . . . . . . . . 7-1
Test Mode . . . . . . . . . . . . . . . . . 7-2
LED Functions . . . . . . . . . . . . . 7-3
Key Functions . . . . . . . . . . . . . . 7-3
Error Codes. . . . . . . . . . . . . . . . 7-4
Motor Current & Voltage . . . . . 7-4
Speed Sensor Adjustment . . . . 7-6
Speed Calibration . . . . . . . . . . . 7-8
Running Belt & Deck . . . . . . . . 7-8
Rear Roller . . . . . . . . . . . . . . . . 7-9
Front Roller . . . . . . . . . . . . . . . 7-10
Drive Belt . . . . . . . . . . . . . . . . 7-11
Drive Motor . . . . . . . . . . . . . . . 7-13
Motor Brushes . . . . . . . . . . . . 7-16
Elevation Motor. . . . . . . . . . . . 7-19
Lower Control Board . . . . . . . 7-21
Power Cord. . . . . . . . . . . . . . . 7-24
Power Switch . . . . . . . . . . . . . 7-24
Line Filter . . . . . . . . . . . . . . . . 7-25
Upper Display Board . . . . . . . 7-27
Contact Heart Rate Board . . . 7-29
CSAFE Board . . . . . . . . . . . . . 7-30
Display Cable . . . . . . . . . . . . . 7-31
Display Overlays . . . . . . . . . . . 7-34
Parts List . . . . . . . . . . . . . . . . 7-36
Exploded View . . . . . . . . . . . . 7-39
Schematic. . . . . . . . . . . . . . . . 7-40

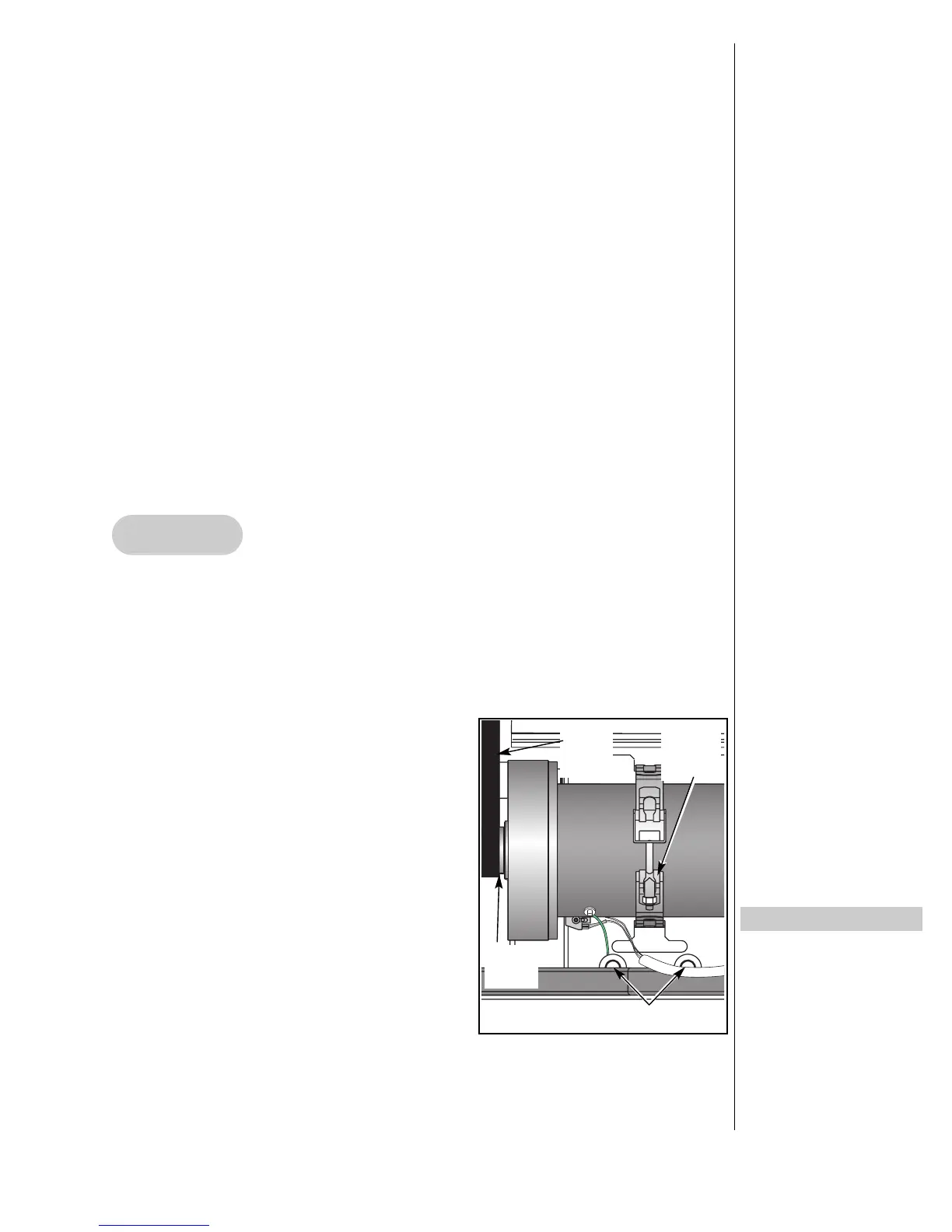

Figure 9
Motor Saddle Screws
Drive
Pulley
Drive
Belt
Motor
Strap
Buckle
