Cybex Pro Treadmill Owner’s & Service Manual
Page 7-22
3. Disconnect the cables from the lower control board and bracket.
A. Pull up on the lower board shield. It will snap out.
B. Disconnect the cables from the lower control board. This includes the elevation motor
cable, display cable (P1 and P2), AC line 1 (black), AC line 2 (white), drive motor (black
red, yellow) and speed sensor cable.
C. Using a 3/8” nutdriver or socket wrench, remove the one nut and one washer from the
ground wire on the lower control bracket.
4. Remove the line filter.
A. Using a Phillips head screwdriver, remove the two screws that hold the line filter to the
lower control board bracket. NOTE: You should not need to disconnect the cables that
are connected to the line filter.
5. Remove the lower control board bracket.
A. Using a Phillips head screwdriver, remove the four screws that hold the lower control
bracket to the base.
B. Remove the entire bracket with its lower board. NOTE: Cybex may want this part
back for evaluation. Contact Cybex Customer Service at 800-766-3211 and press 64
when prompted.

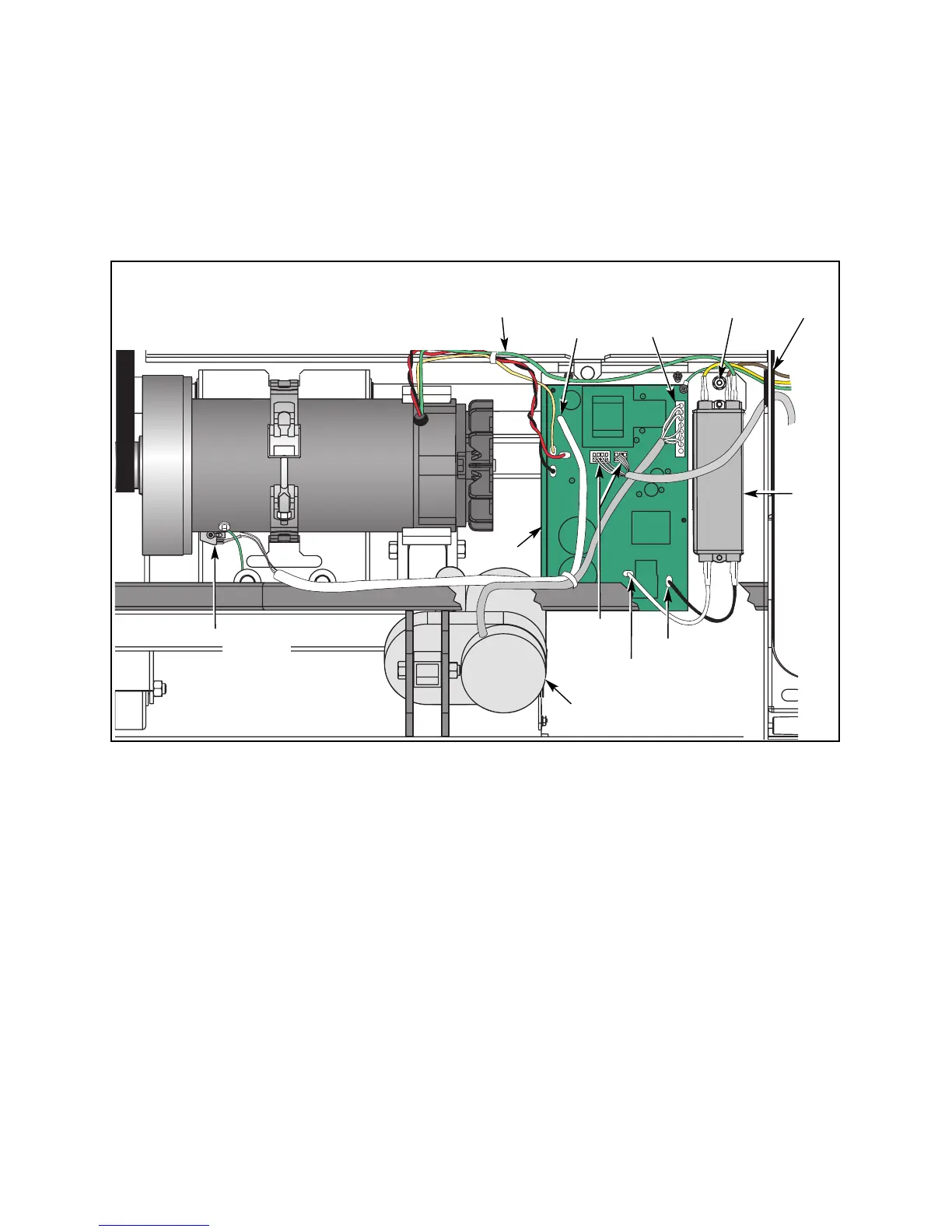

Figure 16
Access
Hole
Elevation
Motor
Cable
Display
Cable
Speed
Sensor
Speed
Sensor
Cable
Line
Filter
Elevation
Motor
AC Line 1
AC Line 2
Lower
Board
Ground
Wire
Drive Motor Cable
(Red Black Yellow
& Green)
