Cybex Pro Treadmill Owner’s & Service Manual
Page 7-28
4. Attach the display board.
A. Place the display board in position and gently push the display board down into the
CSAFE board connector.
B. Using a Phillips head screwdriver, secure the four screws that hold the display board
to the console.
5. Connect the cables.
A. Connect these cables into the display board: the display cable (2 connectors), the two
upper switch membranes, the lower switch membrane, the contact heart rate cable
and the upper to lower board jumper. See Figure 19.
6. Check the connections.
A. Check to see that all of the cables are connected firmly in their proper place.
7. Secure the console back.
A. While being sure not to pinch any cables, use a Phillips head screwdriver to secure the
three screws that hold the bottom back cover to the console front.
8. Calibrate speed.
A. Follow the Speed Calibration procedure in this chapter.

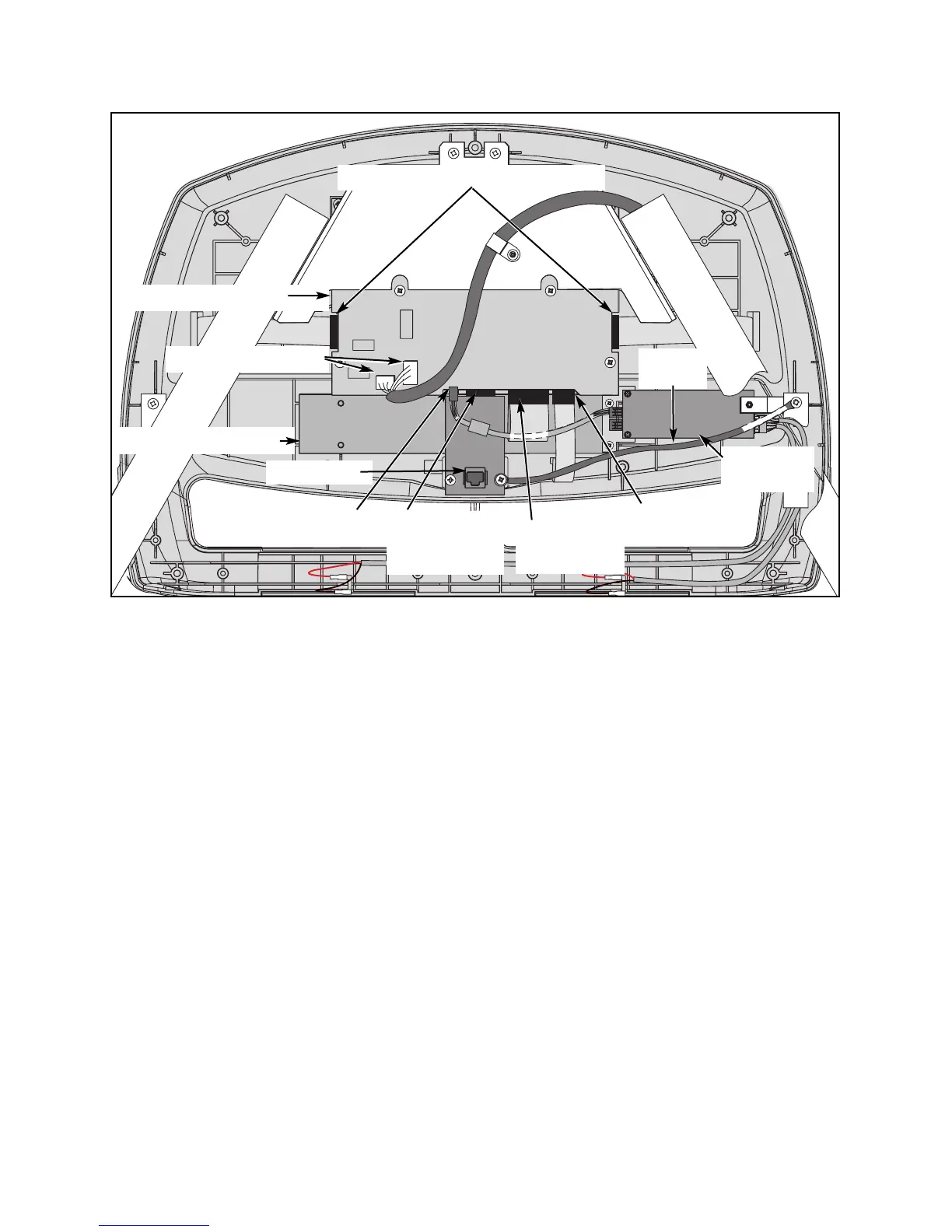

CSAFE Board
Connects to
Display Board
Upper Display Board
Lower Display Board
Contact Heart
Rate Port
Lower Switch
Membrane
Upper to
Lower Board
Jumper
Upper Switch Membrane Ports
Heart Rate
Board
Display Cable Ports
Figure 19
RJ-45 Port
CSAFE
Jumper
