CYBEX V Series Assembly Instructions

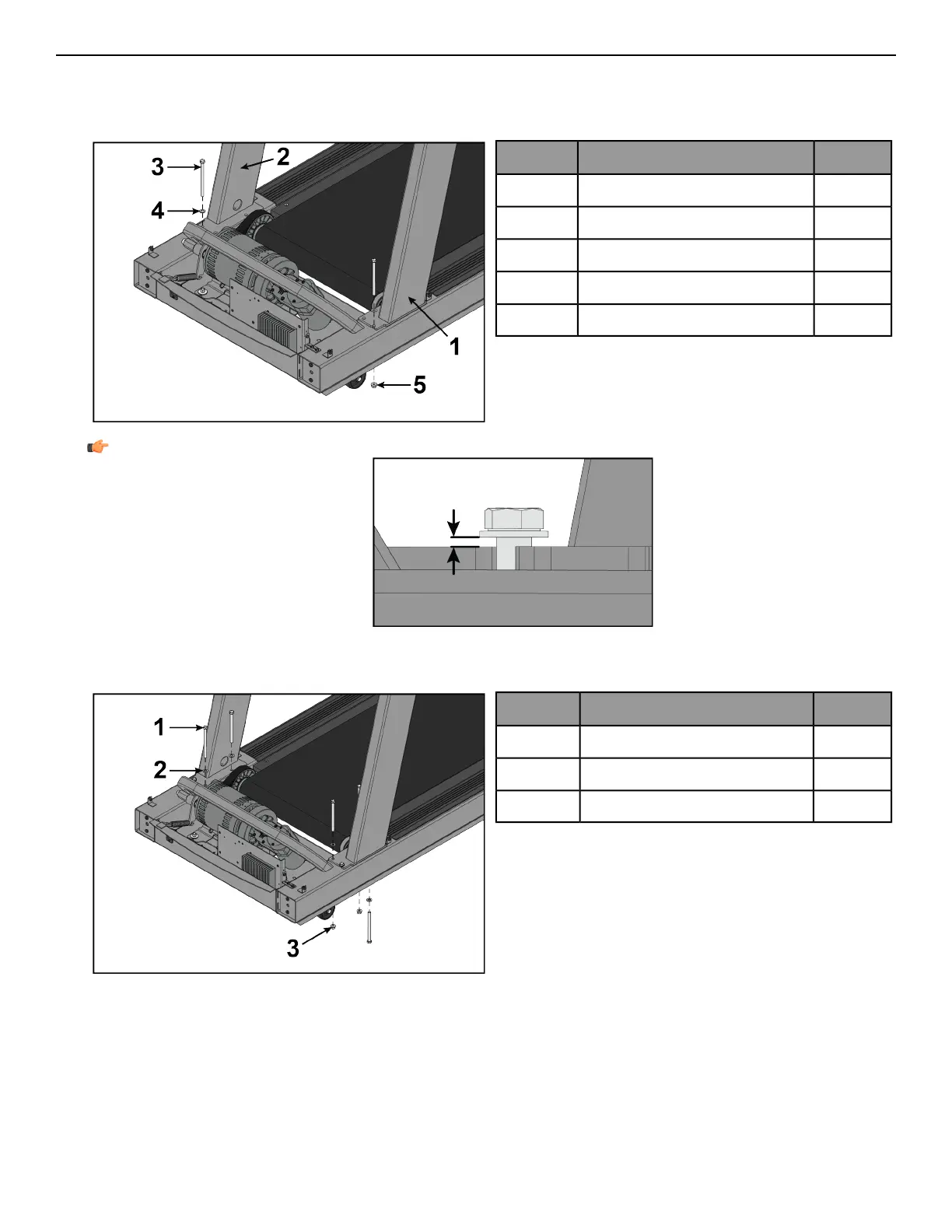

Install Uprights
1. Place uprights on base assembly.
2. Install one bolt, washer, and lock nut to left and right upright and base assembly using a 9/16" socket and
wrench.
QtyDescriptionItem
1Left Upright1
1Right Upright2
2Bolt, 3/8 x 5” Hex Head3
2Washer, 3/8” Flat4
2Lock Nut, 3/8"5
Note: Leave a spacing of 5-12mm between washer and upright.
3. Align uprights with holes in base assembly.
4. Install bolts, washers, and lock nuts securing uprights to base assembly using a 9/16" socket and wrench.
QtyDescriptionItem
6Bolt, 3/8 x 5” Hex Head1
6Washer, 3/8” Flat2
4Lock Nut, 3/8"3
Page 17 of 31
