CYBEX V Series - Install Console; Console Connections

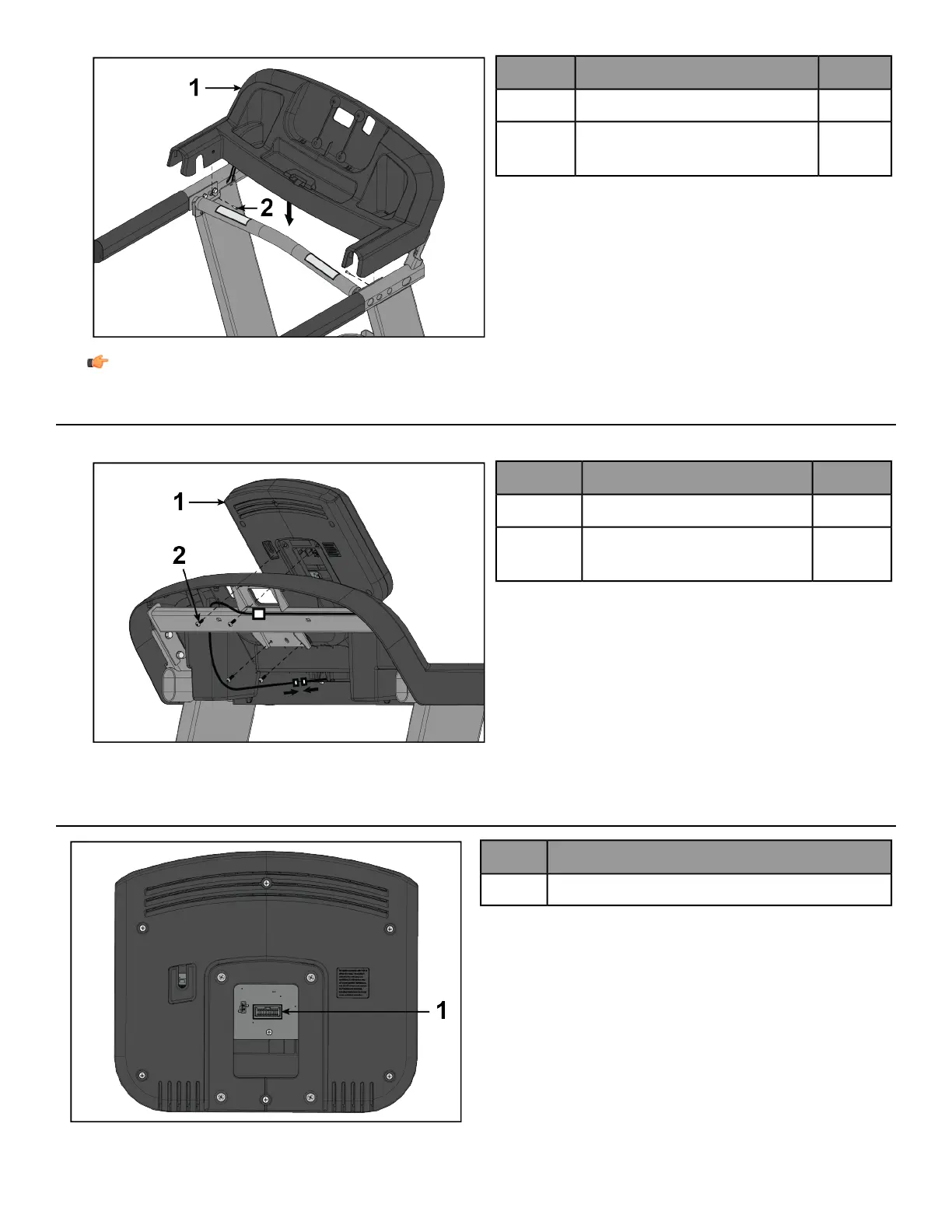

2. Install screws securing upper dashboard tray to front crossbar using a Phillips screwdriver.
QtyDescriptionItem
1Upper Dashboard Tray1
2
Screw, M4.2 x 19mm Phillips
Head
2
Note: Be careful not to over tighten screws. Over tightening can damage the plastic.
Install Console
1. Install screws securing console to upper dashboard tray using a Phillips screwdriver.
QtyDescriptionItem
1Console1
4
Screw, M5 x 25mm Phillips
Head
2
2. Connect cables.
Console Connections
Description
Display Connection1
Page 22 of 31
