CYBEX V Series Assembly Instructions

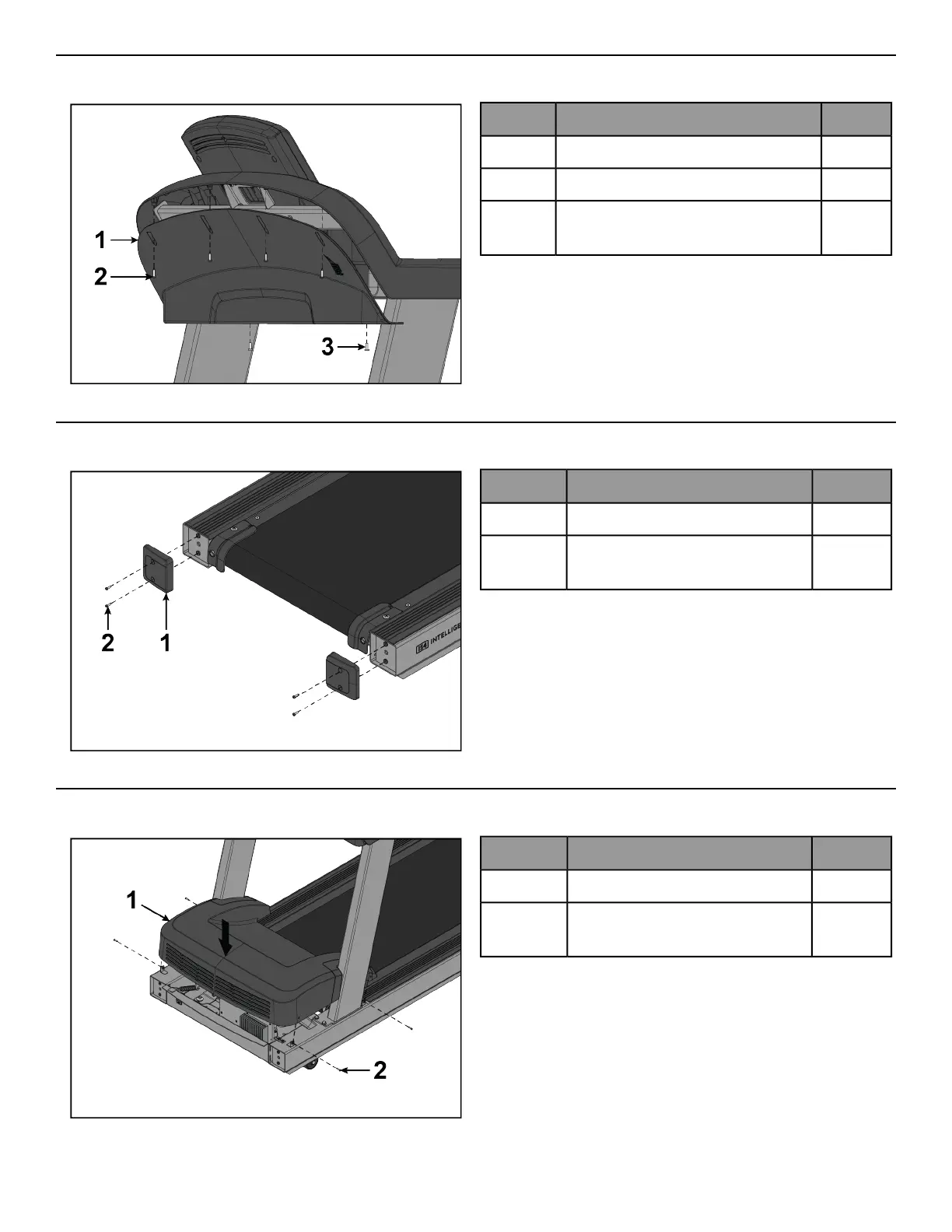

Install Lower Dashboard Tray
Install screws securing lower dashboard tray to upper dashboard tray using a Phillips screwdriver.
QtyDescriptionItem
1Lower Dashboard Tray1
4Screw, M4.2 x 19mm Phillips Head2
2
Screw, #10 x 0.5” Phillips Head
(silver)
3
Install Rear End Caps
Install screws securing rear end caps to base assembly using a Phillips screwdriver.
QtyDescriptionItem
2Rear End Cap1
4
Screw, M4.2 x 19mm Phillips
Head
2
Install Motor Cover
Install screws securing motor cover to base assembly using a Phillips screwdriver.
QtyDescriptionItem
1Motor Cover1
4
Screw, M4.2 x 19mm Phillips
Head
2
