Corrective ActionProbable Cause
Contact Customer Support Services.
Stop switch is activated with very light pressure or returns slowly
after being pressed.
Stop switch cable is not making proper contact.
Main wire harness is pinched.
Ground path is open.
How to Adjust and Tension the Striding Belt
Do not move the treadmill or place hands under the treadmill while it is plugged into an electrical outlet!
The Belt Tensioning Bolts
An 8mm hex key wrench is required for this task. The treadmill has access holes in the rear roller guards which
allow access to the tensioning bolts. These tensioning bolts make it possible to adjust the tracking and centering
of the striding belt without removing the guards.
Note: It is extremely important that the treadmill be correctly leveled prior to any tracking adjustments. An
unstable unit may cause striding belt misalignment. See How To Stabilize the Treadmill prior to attempting
any rear roller adjustments.

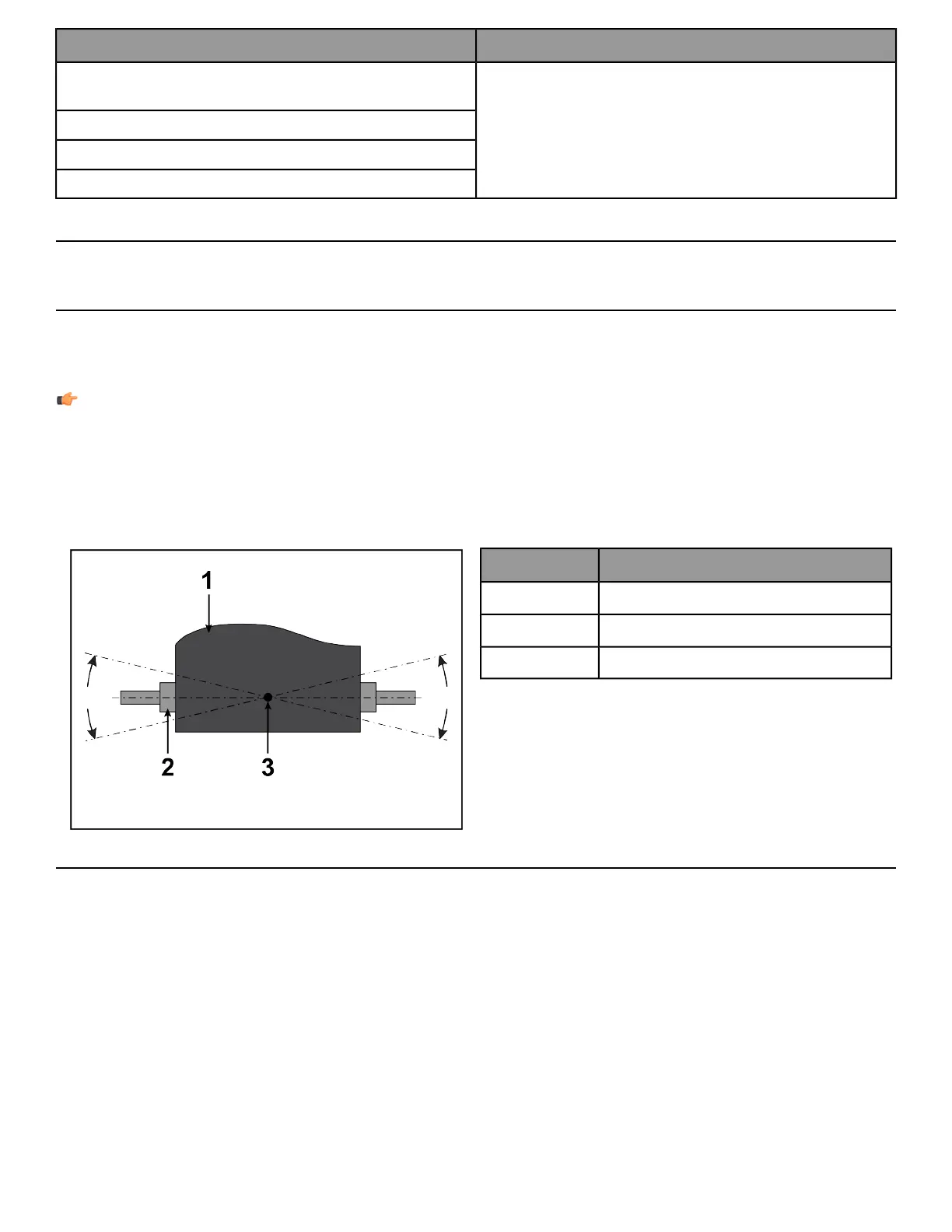

Before proceeding, it is helpful to visualize the pivot point of the rear roller. Each adjustment made to one side of
the roller must be met with an equal and opposite adjustment to the other side of the roller to maintain an ideal
belt tension at the pivot point.
DescriptionItem
Belt1
Rear Roller2
Pivot Point of Rear Roller3
Tracking (Centering) A Striding Belt
Two people are needed to perform this procedure.
1. Locate the two access holes to the belt tensioning bolts on each of the rear roller guards.
2. One person stands on the side rails of the treadmill and straddles the belt. This person presses GO and sets
the belt speed to 2.5 MPH (4.0 KPH).
