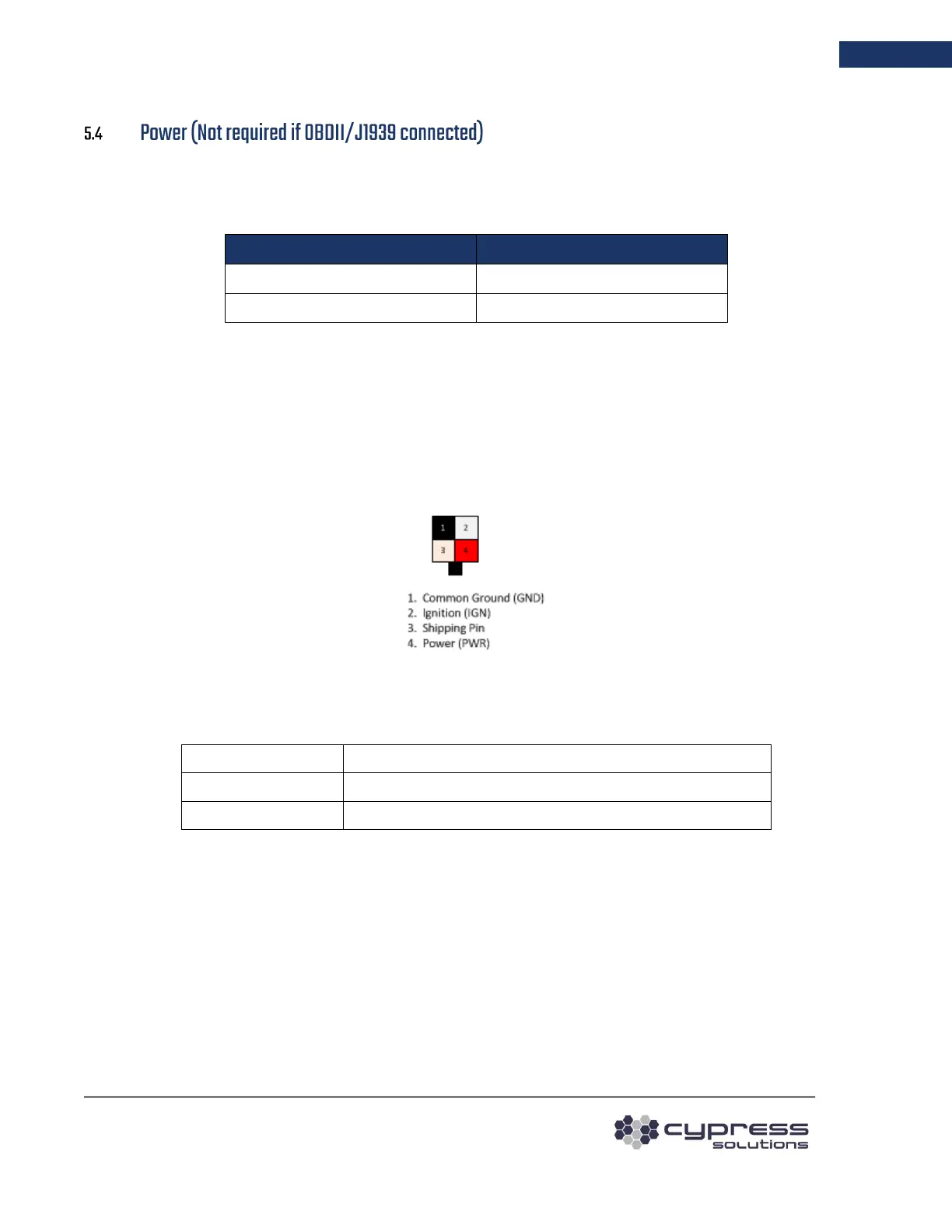

cypress solutions CTM-ONE - Power (Not Required if OBDII;J1939 Connected)

© 2021 Cypress Solutions Manual: CTM-ONE (Revision 1.0)
13
Installing the CTM-ONE
Molex Micro-Fit 3.0™ connector #:
Molex Part Number
Description
43025-0400
Receptacle housing
43030
Crimp Terminals 20-24 AWG
When a compatible vehicle interface is not available or not preferred the CTM can be connected with a DC
power cable for direct connection to a DC power supply or with an optional AC Wall Plug adaptor that allows
quick and easy connection to standard 120V AC Power.
Red
+7V to +32V DC
Black
0V return (GND)
White
Standby / Ignition (+V for operation, Off for standby)
A 5 Amp “slow-blow” fuse is recommended in the +V supply line.
