cypress solutions CTM-ONE - General Troubleshooting Operation

© 2021 Cypress Solutions Manual: CTM-ONE (Revision 1.0)
29

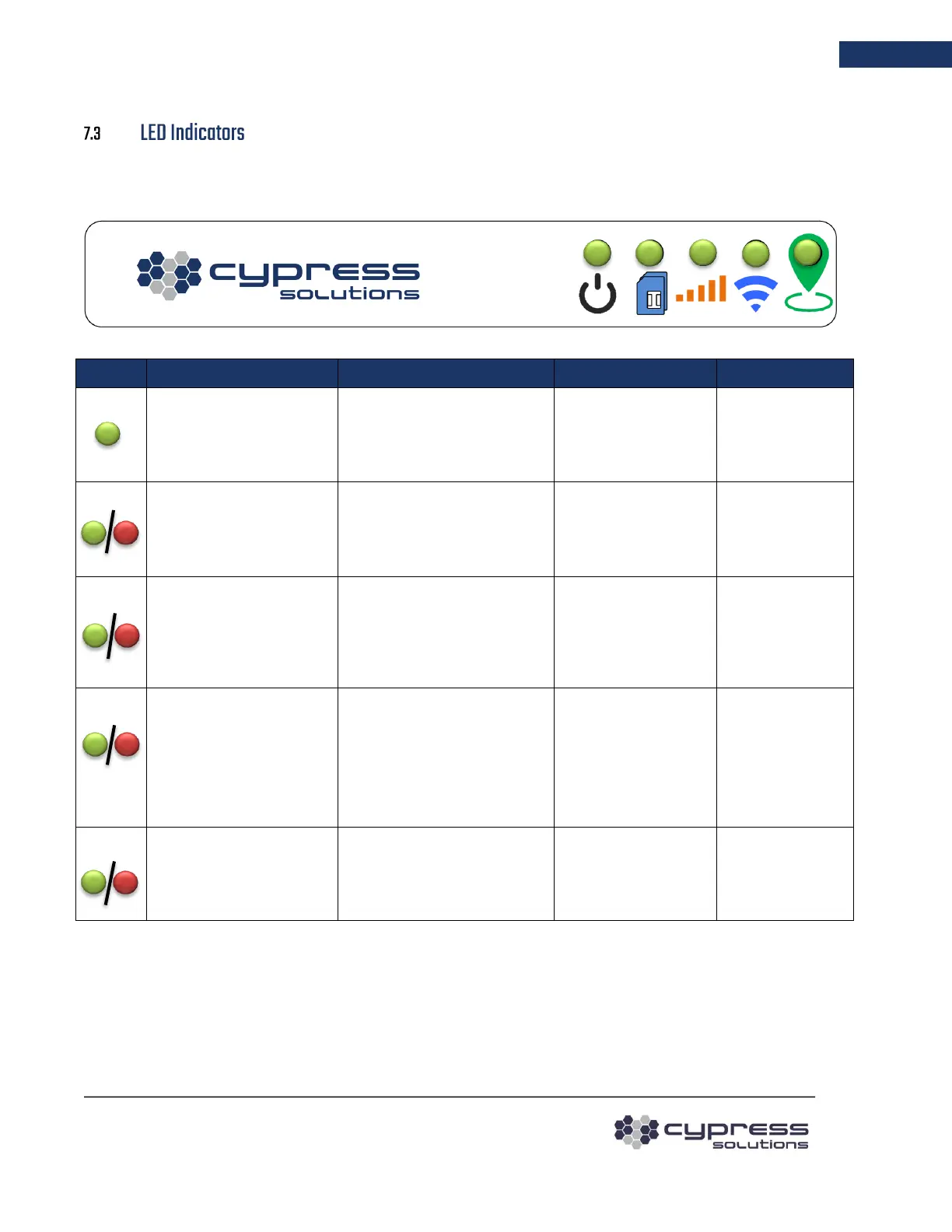

There are five indicators on the CTM-ONE.
LED
Description
Solid
Blinking
Off
Power
Power status
Full operating mode
running of DC input
Standby
Device has no
power
SIM
SIM Status
Green, using SIM1
Red, using SIM2
No SIM installed
Cellular
connectivity
disabled
Cellular
Indicates the type of
wireless data
connection
Green, Good Signal
Red, Not connected, good
signal
Green, Poor Signal
Red, Not
Connected, Poor
Signal
Cellular
connectivity
disabled
Wi-Fi
Wi-Fi. Indicator
switches between AP
and Client for
simultaneous AP client
operation
Green, Access Point (AP)
On
Red, Client Connected
Enabled, Not
connected
Wi-Fi disabled
GNSS
Status of the GNSS
module
Green, GNSS module has a
valid position fix
Red, Dead Reckoning mode
GNSS module does
not have a valid
position fix
GNSS disabled
